Schneider Electric XALK178E Harmony XALK Emergency Stop Station 40mm Turn to Release 1NO 1NC Control Station

% $-37.59

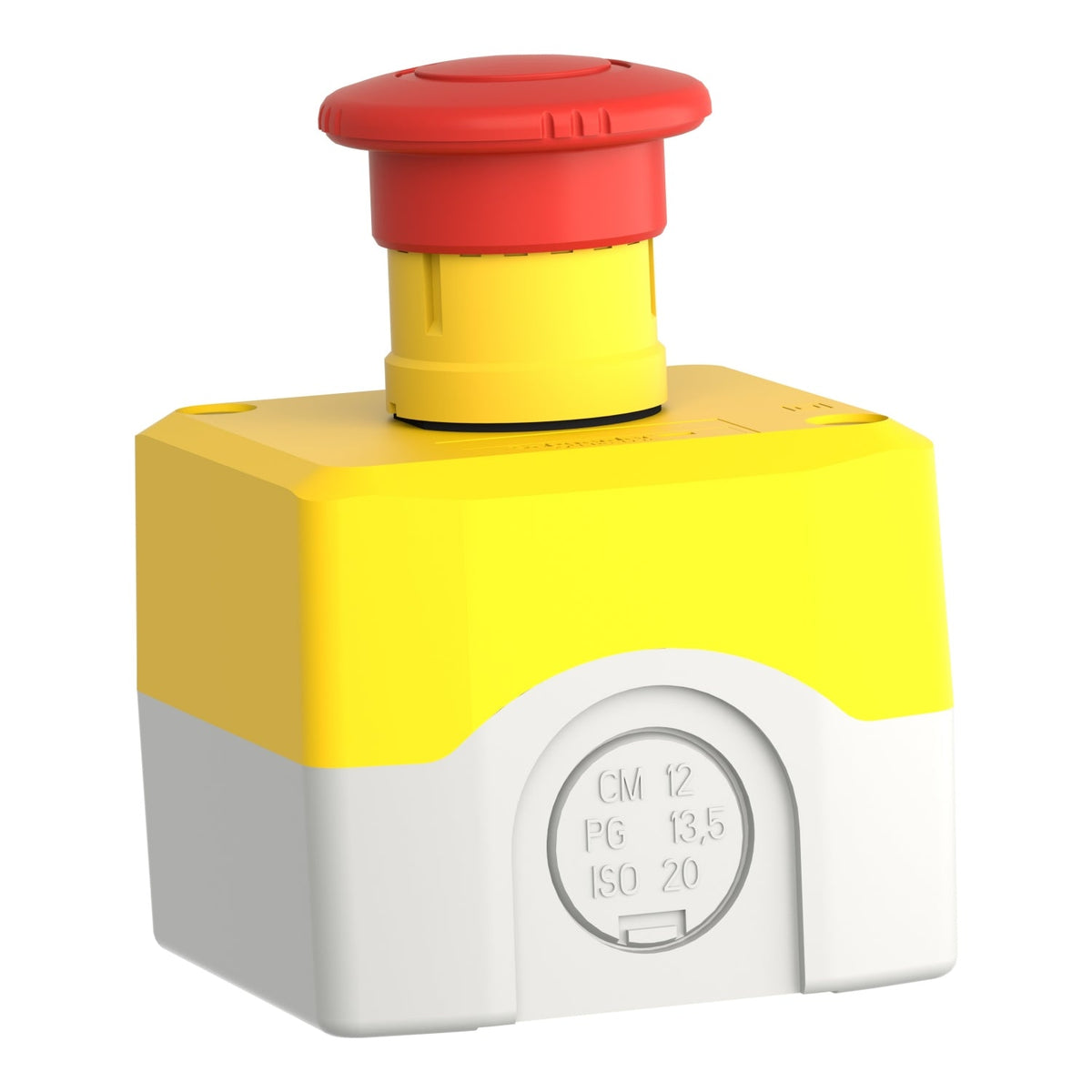

Schneider Electric XALK178E Harmony XALK emergency stop control station 1NO 1NC
Schneider Electric XALK178E Harmony XALK emergency stop control station 1NO 1NC

Schneider Electric XALK178E Harmony XALK Emergency Stop Station 40mm Turn to Release 1NO 1NC Control Station

Brand: Schneider Electric
Reference No: XALK178E
Catalog No: XALK178E
Series: Harmony XALK
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$37.59

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XALK178E is a complete Harmony XALK control station for emergency stop and emergency switching off, built around an unmarked 40 mm red mushroom-head push button with turn-to-release reset, wired 1NO + 1NC. The yellow-lidded polycarbonate housing is rated IP66/IP67/IP69/IP69K for washdown-exposed emergency stop points.

Technical Specifications

SKU XALK178E
GTIN 3389110113662
Brand Schneider Electric
Range Harmony XALK
Product type Complete control station
Destination For XB5 22 mm control and signalling units
Application Emergency stop function | Emergency switching off function
Base colour Light grey (RAL 7035)
Cover colour Yellow (RAL 1021)
Material Polycarbonate
Composition 1 mushroom head push-button, 40 mm, red, 1NO + 1NC, unmarked
Reset Turn to release
Contacts 1 NO + 1 NC
Operating force 44 N
[Ith] conventional thermal current 10 A
[Ui] rated insulation voltage 600 V (pollution degree 3)
[Uimp] rated impulse withstand voltage 6 kV
Terminals Screw clamp, <= 2 x 1.5 mm² with cable end
IP degree of protection IP66/IP67/IP69/IP69K
NEMA degree of protection NEMA 4X/13
IK degree of protection IK03
Ambient temperature, operation -40...70 °C
Net weight 0.194 kg
Country of origin CZ

Certifications & Standards

  • IEC 60947-5-1
  • IEC 60947-5-4
  • IEC 60947-5-5
  • UL 508
  • CSA C22.2 No 14
  • ISO 13850
  • IEC 60204-1

Selection Notes

The added 1NO contact alongside the safety 1NC lets this station feed a status or monitoring signal (for example to a PLC input confirming the stop state) from the same button that breaks the safety circuit. Where only the 1NC safety contact is needed, the simpler XALK178 covers it; where two independent NC circuits are required, the XALK178F doubles the NC output instead.

Technical Details

Short Description
Harmony XALK emergency stop station, 40mm mushroom button, turn to release, 1NO+1NC.
Mounting Type
Panel mount, 22 mm cut-out
Protection Type
IP66/IP67/IP69/IP69K
Catalog No
XALK178E
Delivery Date (Days)
30 days
Model Number
XALK
Tariff Code
853650
