Schneider Electric XALE1011 Harmony XALE control station green push button

Schneider Electric XALE1011 Harmony XALE Control Station 1 Green Push Button Spring Return 1NO Control Station

Name: Schneider Electric XALE1011 Harmony XALE Control Station 1 Green Push Button Spring Return 1NO Control Station
Brand: Schneider Electric
SKU: XALE1011
Price: 15.44 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: XALE1011

Catalog No: XALE1011

Series: Harmony XALE

Tariff Code (HS): 853650

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$15.44

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

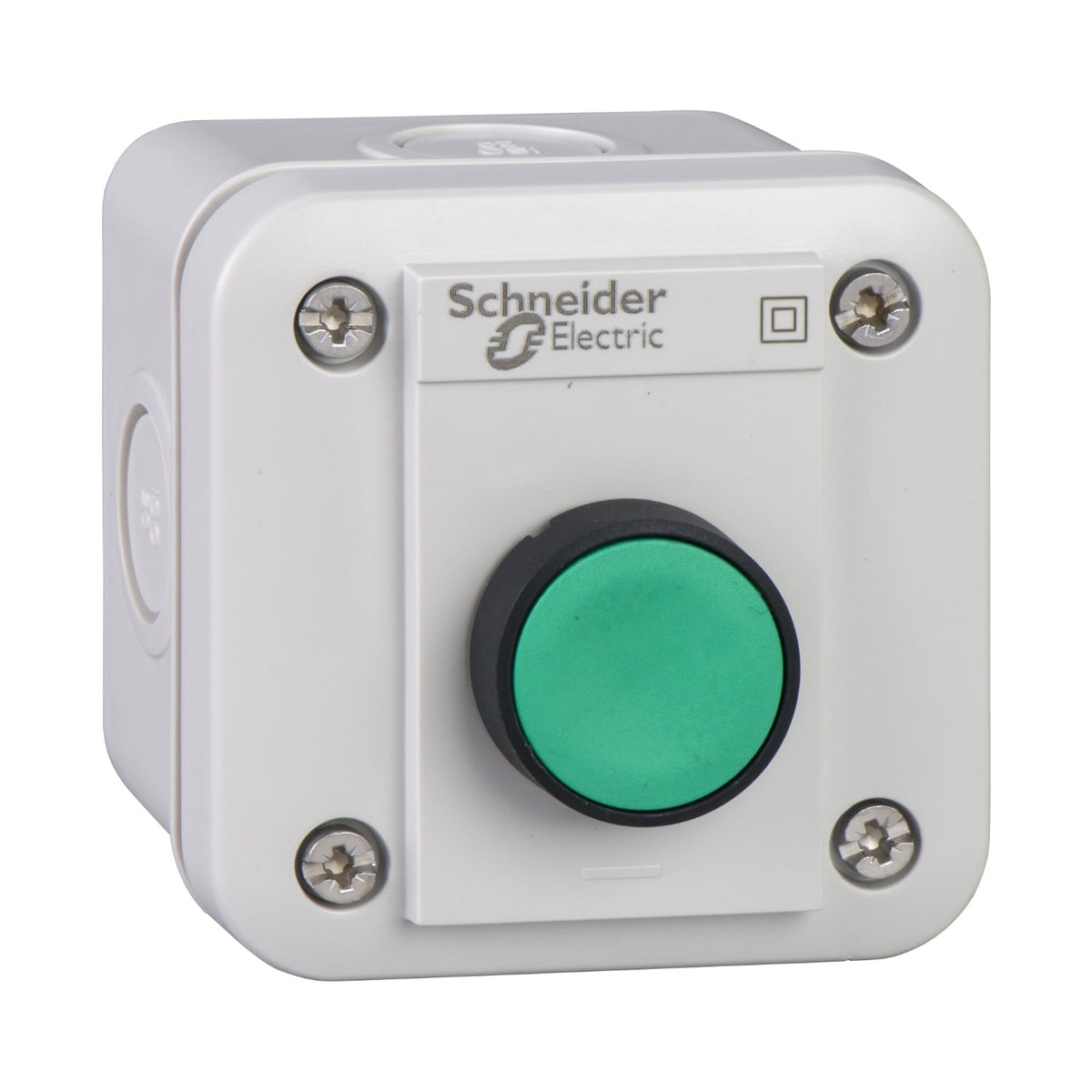

The Schneider Electric XALE1011 is a Harmony XALE complete control station fitted with one green flush push button, spring return, wired 1NO. The light grey ABS enclosure is rated IP54 and sized for Harmony XB7 22 mm units, giving a single-function command point for general-purpose machine panels.

Technical Specifications

SKU	XALE1011
Brand	Schneider Electric
Range	Harmony XALE
Product type	Complete control station
Destination	For XB7 22 mm control and signalling units
Application	One function
Base colour	Light grey (RAL 7035)
Cover colour	Light grey (RAL 7035)
Material	ABS (acrylonitrile butadiene-styrene)
Composition	1 flush push-button, green, spring return, 1NO
Contacts	1 NO
Short-circuit protection	4 A cartridge fuse type gG
[Ui] rated insulation voltage	250 V (pollution degree 3)
[Uimp] rated impulse withstand voltage	4 kV
Terminals	Screw clamp
IP degree of protection	IP54
IK degree of protection	IK05
Electrical shock protection class	Class II
Ambient temperature, operation	-25...55 °C
Net weight	0.1 kg

Certifications & Standards

CE
IEC 60947-1
IEC 60947-5-1
IEC 60947-5-5
IEC 62208

Selection Notes

As a factory-assembled complete station rather than an empty enclosure, the XALE1011 saves the field-wiring step the XALE1 empty shell requires. Choose it directly when a single green momentary start function is all the panel needs.

Technical Details

Short Description

Harmony XALE control station, 1 green push button, spring return, 1NO, IP54.

Mounting Type

Panel mount, 22 mm cut-out

Protection Type

IP54

Catalog No

XALE1011

Delivery Date (Days)

30 days

Model Number

XALE

Tariff Code

853650
