Schneider Electric XALD134 Harmony XALD Control Station 1 Selector Switch O-I 1NO 22 mm Control Station

% $-32.06

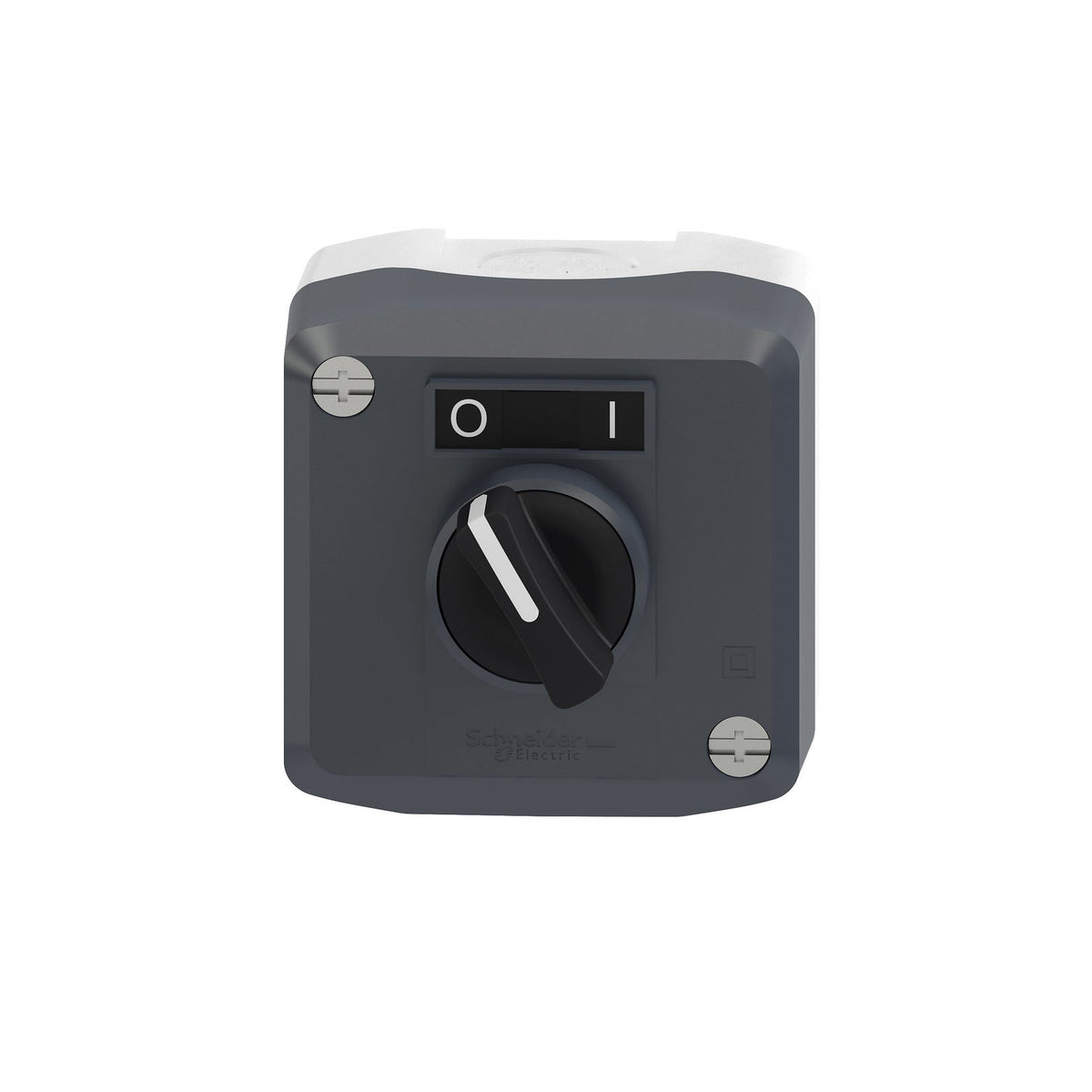

Schneider Electric XALD134 Harmony XALD control station selector switch O-I
Schneider Electric XALD134 Harmony XALD control station selector switch O-I

Schneider Electric XALD134 Harmony XALD Control Station 1 Selector Switch O-I 1NO 22 mm Control Station

Brand: Schneider Electric
Reference No: XALD134
Catalog No: XALD134
Series: Harmony XALD
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$32.06

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XALD134 is a Harmony XALD complete control station fitted with a single 2-position selector switch, standard handle, marked O-I and wired 1NO. The dark grey polycarbonate enclosure is IP66/IP67/IP69/IP69K rated, so this station withstands washdown and dust exposure on machines that need a local two-state mode selection point.

Technical Specifications

SKU XALD134
Brand Schneider Electric
Range Harmony XALD
Product type Complete control station
Destination For XB5 22 mm control and signalling units
Application Start-Stop function
Base colour Light grey (RAL 7035)
Cover colour Dark grey (RAL 7016)
Material Polycarbonate
Composition 1 selector switch, standard handle, O-I marking, 1NO
Contacts 1 NO
Contacts material Silver alloy (Ag/Ni)
[Ith] conventional thermal current 10 A
[Ui] rated insulation voltage 600 V (pollution degree 3)
[Uimp] rated impulse withstand voltage 6 kV
Terminals Screw clamp, <= 2 x 1.5 mm² with cable end
Short-circuit protection 10 A cartridge fuse type gG
IP degree of protection IP66/IP67/IP69/IP69K
NEMA degree of protection NEMA 4X/13
IK degree of protection IK05
Ambient temperature, operation -40...70 °C
Net weight 0.163 kg

Certifications & Standards

  • IEC 60947-5-1
  • IEC 60947-5-4
  • IEC 60947-5-5
  • UL 508
  • CSA C22.2 No 14
  • JIS C8201-1
  • JIS C8201-5-1

Selection Notes

The standard handle gives a wide grip for frequent mode changes, and the single-pole 1NO output keeps wiring to one signal. Where the application needs the switch locked in position or needs a key to prevent unauthorized changeover, the key-operated XALD144 covers the same O-I layout in a secured variant.

Technical Details

Short Description
Harmony XALD control station, 1 selector switch O-I, 1NO, IP66/IP67/IP69/IP69K.
Mounting Type
Panel mount, 22 mm cut-out
Protection Type
IP66/IP67/IP69/IP69K
Catalog No
XALD134
Delivery Date (Days)
30 days
Model Number
XALD
Tariff Code
853650
