Schneider Electric XALD114 Harmony XALD 1 Red Flush Push Button 22 mm 1NC STOP Control Station

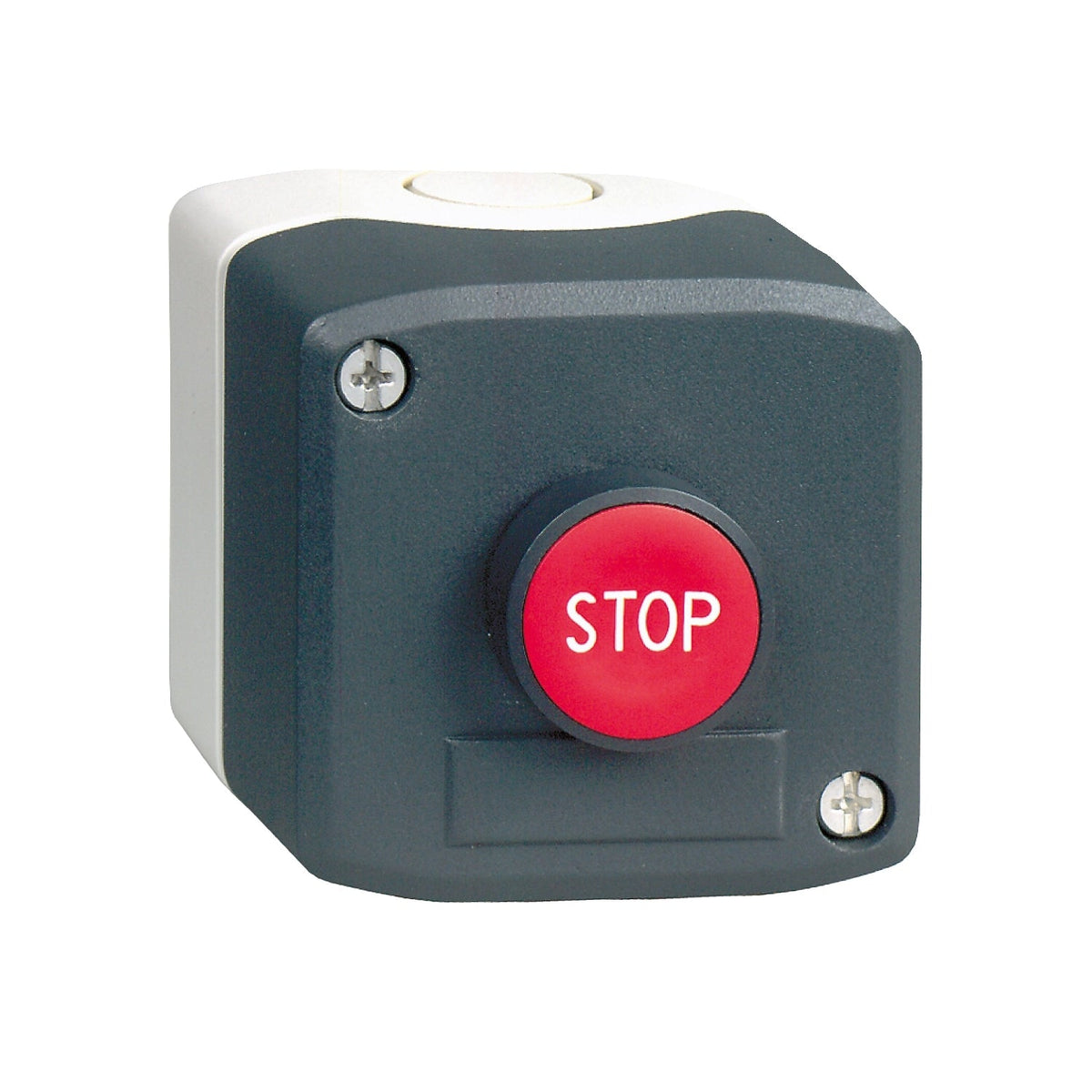

The Schneider Electric XALD114 is a Harmony XALD complete control station built around a single red flush push button marked STOP, wired 1NC with slow-break contact operation. The dark grey polycarbonate enclosure is rated IP66/IP67/IP69/IP69K, so it tolerates high-pressure washdown and dust ingress on packaging and production lines where a dedicated stop point is needed.

Technical Specifications

Certifications & Standards

• IEC 60947-5-1
• IEC 60947-5-4
• IEC 60947-5-5
• UL 508
• CSA C22.2 No 14
• JIS C8201-1
• JIS C8201-5-1

Selection Notes

The single-function layout keeps this station to one cut-out, which suits panels where STOP is the only local command needed and a separate START point exists elsewhere. The 1NC contact wired for a positive-opening fail-safe response, combined with the IP69K rating, makes it a fit for washdown areas; for a combined start/stop point in the same footprint, the 2-button XALD213 or XALD215 variants are the next step up.
