Schneider Electric XA2EVM4LC Easy Harmony XA2 Monolithic Red 22 mm Integral LED 220 V AC Pilot Light

% $-2.68

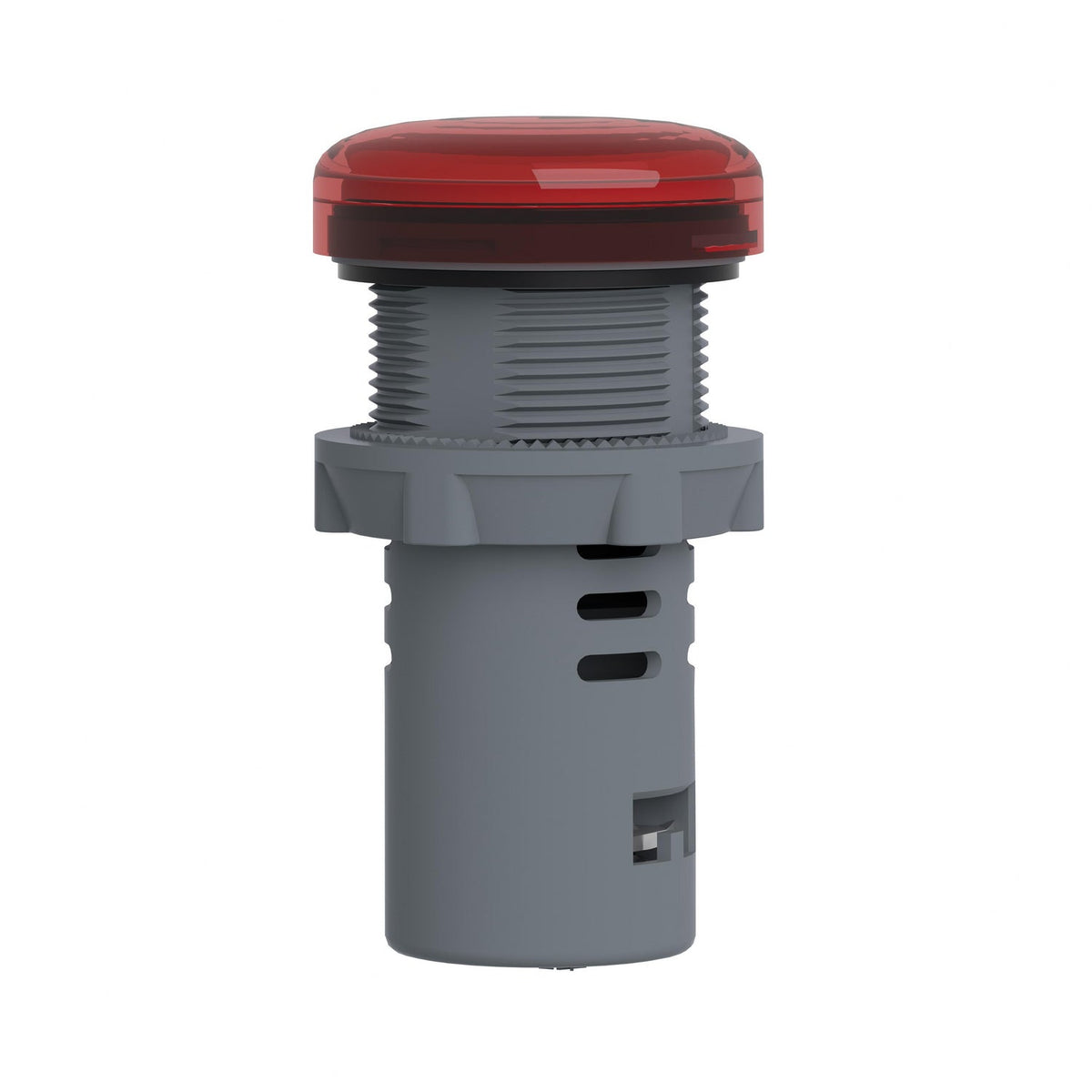

Schneider Electric XA2EVM4LC Easy Harmony XA2 Pilot Light Red 22mm 220V Integral LED
Schneider Electric XA2EVM4LC Easy Harmony XA2 Pilot Light Red 22mm 220V Integral LED

Schneider Electric XA2EVM4LC Easy Harmony XA2 Monolithic Red 22 mm Integral LED 220 V AC Pilot Light

Brand: Schneider Electric
Reference No: XA2EVM4LC
Catalog No: XA2EVM4LC
Series: Harmony XA2
Tariff Code (HS): 853661
Rated Voltage: 220...230 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2.68

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XA2EVM4LC is an Easy Harmony XA2 monolithic pilot light with a round red lens and a COB clustered integral LED, rated for 220...230 V AC supply. It gives a steady signal through a single-piece body with screw-clamp terminals, mounting in a 22.5 mm panel cutout sealed to IP65.

Technical Specifications

Reference XA2EVM4LC
Brand Schneider Electric
Range Easy Harmony XA2
Product Type Monolithic pilot light
Bezel Material Plastic
Mounting Diameter 22.5 mm
Shape of Signalling Unit Head Round
Cap / Lens Colour Red
Light Source COB clustered LED
Bulb Base No bulb
Signalling Type Steady
[Us] Rated Supply Voltage 220...230 V AC, 50/60 Hz
Current Consumption <=20 mA
Service Life 40000 h at rated voltage, 25 degrees C
Connections - Terminals Screw clamp, <=2 x 1.5 mm2 with cable end; 1 x 0.5...2.5 mm2 without cable end
[Ui] Rated Insulation Voltage 400 V (pollution degree 3)
[Uimp] Rated Impulse Withstand Voltage 6 kV
Dimensions (W x H x D) 29 x 29 x 53 mm
Net Weight 0.02 kg
IP Degree of Protection IP65
IK Degree of Protection IK05

Certifications & Standards

  • CE
  • CCC
  • GB 14048.5
  • IEC 60947-1
  • GB 14048.1
  • IEC 60947-5-1

Selection Notes

Red follows the IEC 60204-1 convention for a fault or stop-condition status signal, distinguishing it from the run-status green XA2EVM3LC in the same monolithic body. The 220...230 V AC supply runs off mains-derived control wiring instead of a dedicated 24 V rail, the main reason to pick this over the 24 V XA2EVB4LC. For a dual-status indication in one cutout, choose the bi-colour XA2EVM34LC (green/red) instead.

Technical Details

Short Description
Easy Harmony XA2 pilot light, red, integral LED, 220V AC, screw clamp, IP65.
Rated Voltage (VAC)
220...230 V AC
Mounting Type
22.5 mm panel cutout
Protection Type
IP65, IK05
Catalog No
XA2EVM4LC
Delivery Date (Days)
30 days
Model Number
Easy Harmony XA2
Tariff Code
853661
