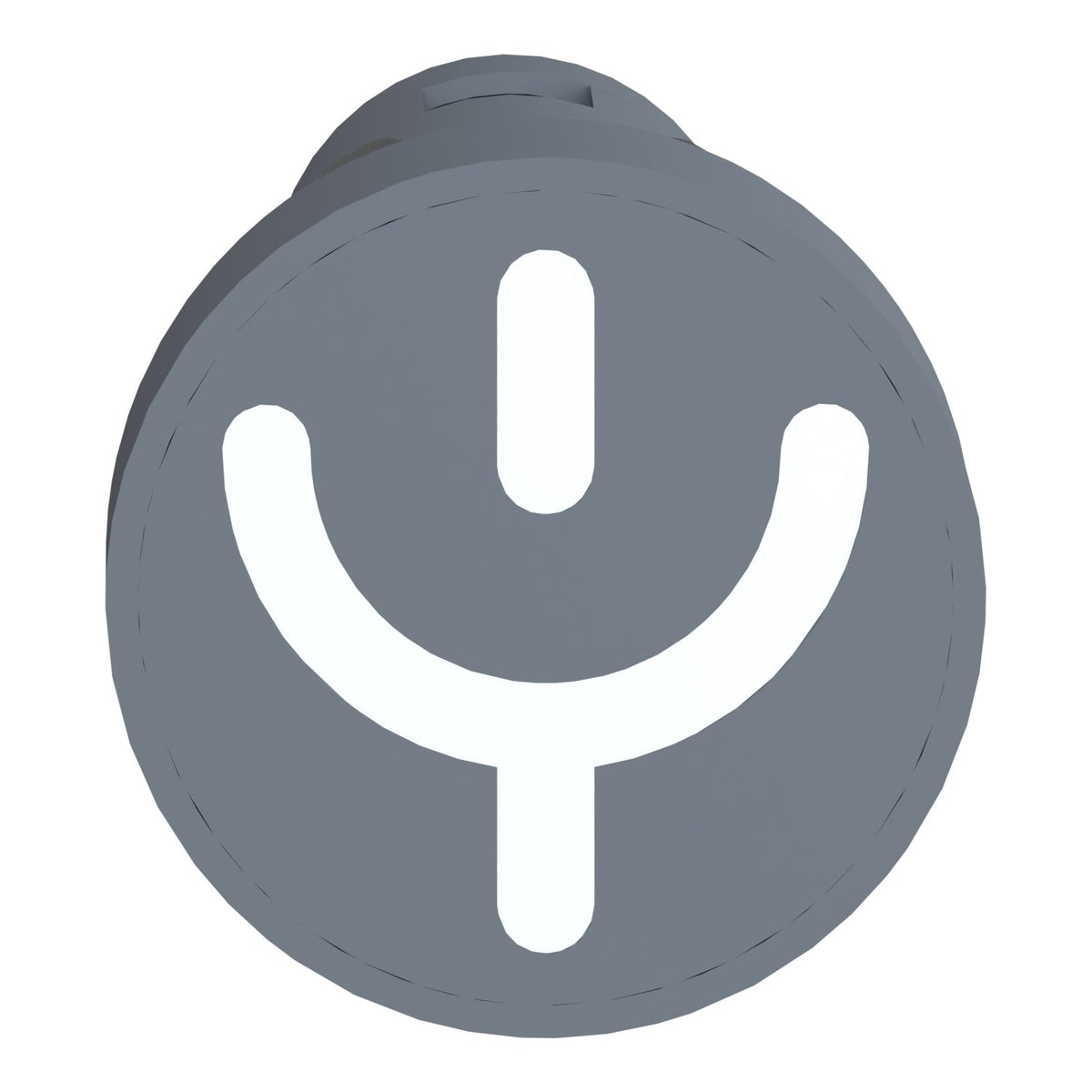

Schneider Electric XA2EVM34BPC Easy Harmony XA2 Circuit Breaker Indicator Light Green Red 220 V AC Pilot Light

The Schneider Electric XA2EVM34BPC is an Easy Harmony XA2 indicator light marked for circuit-breaker status, combining a green and red lens with a COB clustered integral LED, rated for 220...230 V AC supply. It gives a steady signal through a single-piece body with screw-clamp terminals, mounting in a 22.5 mm panel cutout sealed to IP54.

Technical Specifications

Certifications & Standards

• CE
• CCC
• GB 14048.5
• IEC 60947-1
• IEC 60947-5-1
• GB 14048.1

Selection Notes

The circuit-breaker marking and larger 33.5 mm square body give this indicator a wider lens than the round XA2EVM34LC general-purpose pilot light, improving legibility where it labels a specific breaker position on a switchgear door. IP54 (rather than IP65 on the plain monolithic lights) matches typical indoor switchgear panel sealing needs without the added cost of full washdown protection. Choose the ground indicator XA2EVM34GPC or isolation-switch indicator XA2EVM34SPC in the same body style for other breaker-panel status functions.
