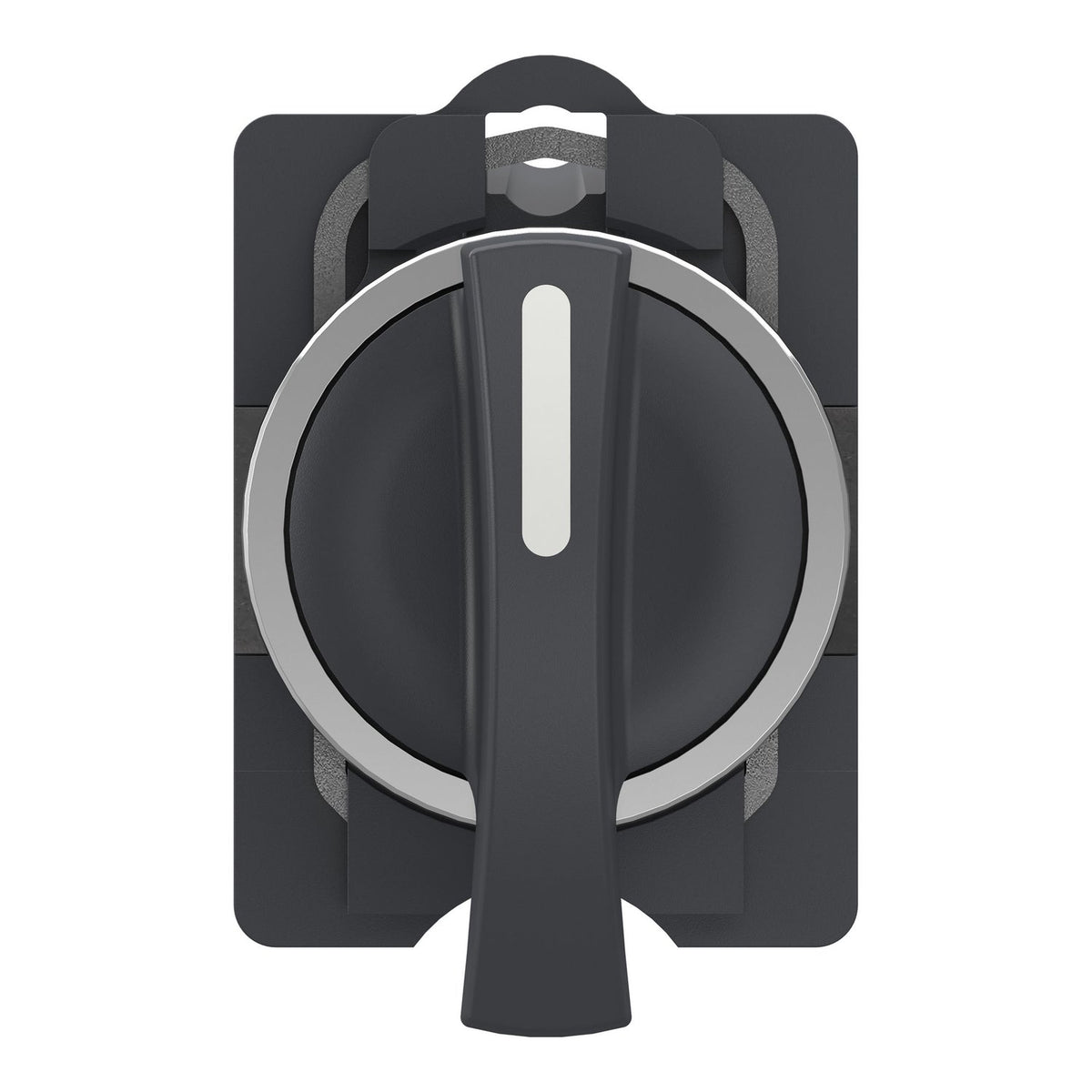

Schneider Electric XA2AJ53 Easy Harmony XA2 Long Handle Black 3-Position Spring Return 2NO Selector Switch

The Schneider Electric XA2AJ53 is an Easy Harmony XA2 complete selector switch with a black long handle and 3 operating positions spaced 45 degrees apart. It switches 2 NO contacts through slow-break operation and returns from both side positions back to centre, mounting in a 22.5 mm panel cutout sealed to IP65.

Technical Specifications

Certifications & Standards

• CCC
• CE
• UKCA
• GB 14048.1
• IEC 60947-1
• GB 14048.5
• IEC 60947-5-1

Selection Notes

Spring return to centre means the 2 NO contacts only stay made while the handle is held in a side position, releasing back to the neutral centre state as soon as the operator lets go - suited to momentary two-direction commands such as jog-forward / jog-reverse rather than a latched mode selection. This differs from the XA2AJ33 stay-put 3-position variant, which holds whichever position is last selected. Choose XA2AJ33 instead when the application needs the selected position to remain latched.
