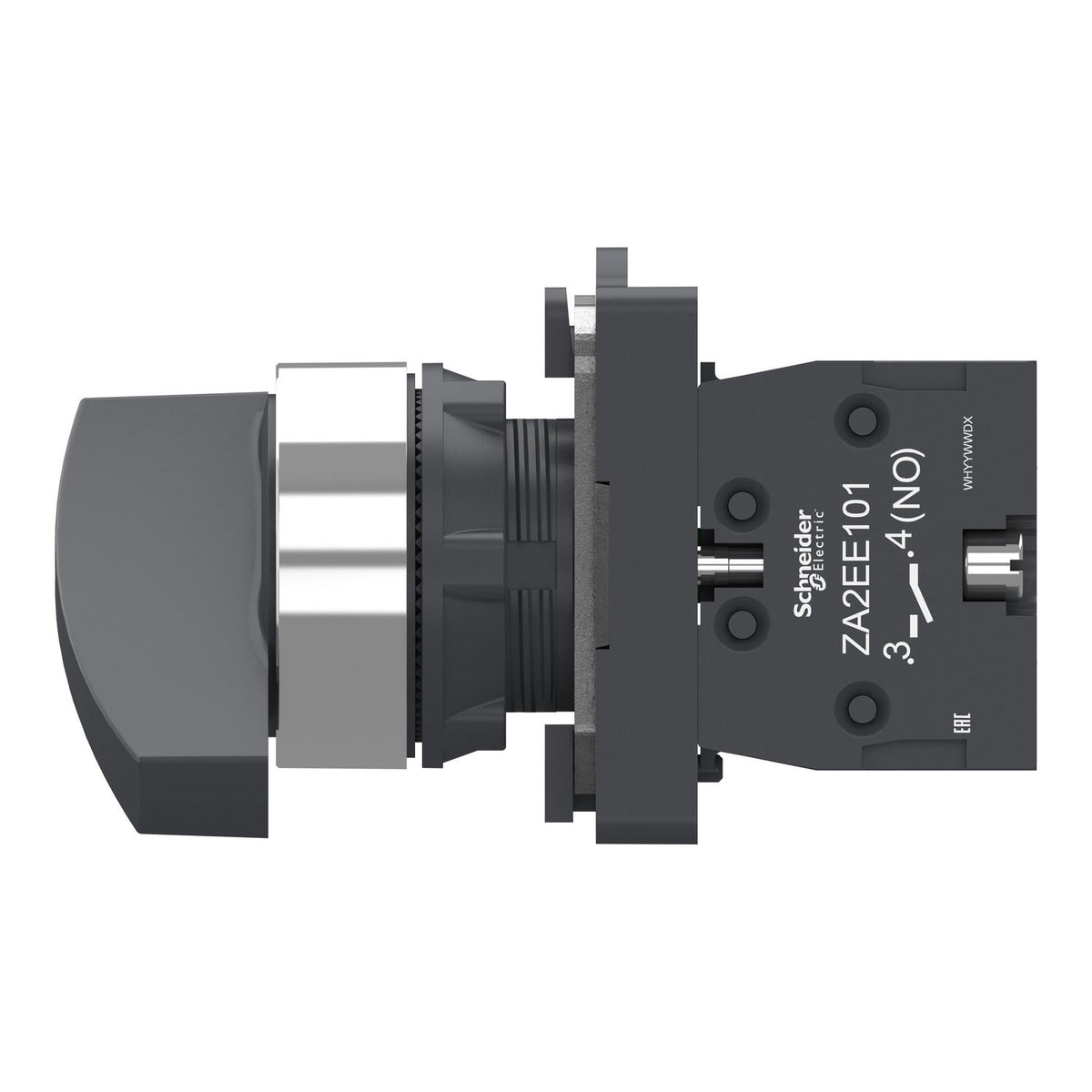

Schneider Electric XA2AJ25 Easy Harmony XA2 Plastic Long Handle Black 22 mm 2-Position 1NO+1NC Selector Switch

The Schneider Electric XA2AJ25 is an Easy Harmony XA2 complete selector switch with a black long handle and 2 operating positions at 90 degrees apart. It switches 1 NO + 1 NC contact through slow-break operation and holds its position with a stay-put mechanism, mounting in a 22.5 mm panel cutout sealed to IP65.

Technical Specifications

Certifications & Standards

• CCC
• CE
• UKCA
• GB 14048.1
• IEC 60947-1
• GB 14048.5
• IEC 60947-5-1

Selection Notes

The combined 1 NO + 1 NC contact block gives a positive confirmation signal in the opposite state position, which is useful for interlocking logic (for example feeding a PLC with both a 'selected' and a 'not selected' signal) rather than relying on a single contact. Stay-put operation holds the handle, and the contacts, in whichever of the 2 positions it was last turned to. Choose the simpler XA2AJ21 (1 NO only) in the same long-handle body when a single confirmation contact is sufficient.
