Schneider Electric VZ13 TeSys VARIO additional neutral block for V5 V6

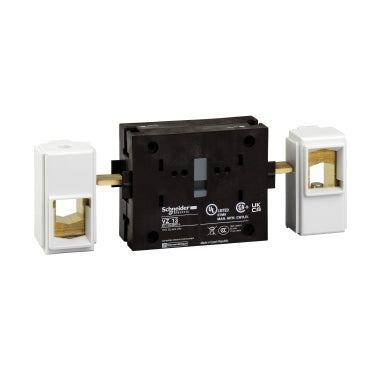

Schneider Electric VZ13 TeSys VARIO Additional Neutral Block 1N 175 A for V5/V6 Contactor Accessory

Name: Schneider Electric VZ13 TeSys VARIO Additional Neutral Block 1N 175 A for V5/V6 Contactor Accessory
Brand: Schneider Electric
SKU: VZ13
Price: 37.15 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: VZ13

Tariff Code (HS): 853650

Rated Current: 175 A

Rated Voltage: 690 V AC

Poles: 1P

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$37.15

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric VZ13 is an add-on neutral-pole module for TeSys VARIO switch-disconnectors, rated 125-175 A at 690 V for use with V5 and V6 switch bodies. Its early-make, late-break contact sequences the neutral ahead of the phase poles on closing and after them on opening.

Technical Specifications

SKU	VZ13
Brand	Schneider Electric
Range	TeSys VARIO
Device Short Name	VZ
Product Type	Additional neutral block
Poles	1N
Contacts	1 NO, early make / late break
Product Compatibility	V5, V6 switch bodies
Network Type	AC / DC
Rated Operational Voltage (Ue)	690 V AC 50/60 Hz
Rated Impulse Withstand Voltage (Uimp)	6 kV
Conventional Free Air Thermal Current (Ith)	175 A
Terminal Connection	70 mm2 flexible with cable end / 95 mm2 solid
Tightening Torque	22.6 N.m
Dimensions (H x W x D)	125 x 30 x 63 mm
Net Weight	0.25 kg
IP Degree of Protection	IP20

Certifications & Standards

UL
CSA
GL
UKCA
IEC 60947-3

Selection Notes

Fit the VZ13 to either side of a V5 (VBF5) or V6 (VBF6) switch body when the circuit needs a switched neutral alongside the three phase poles; for the smaller V0-V4 bodies, use the matching main-pole or neutral accessory sized for that frame instead, since the VZ13's 95 mm2 terminal does not fit the smaller housings.

Technical Details

Short Description

TeSys VARIO additional neutral-pole block, 175 A, 690 V AC, for V5/V6 switch disconnector bodies.

Rated Current (Ampere)

175 A

Rated Voltage (VAC)

690 V AC

Mounting Type

Side-mounted add-on module

Protection Type

IP20

Number of Poles

Delivery Date (Days)

30 days

Model Number

VZ13

Tariff Code

853650
