Schneider Electric VW3M5A21 Lexium 16 BCH16 Military Connection Kit Power Servo Drive Accessory

% $-248.50

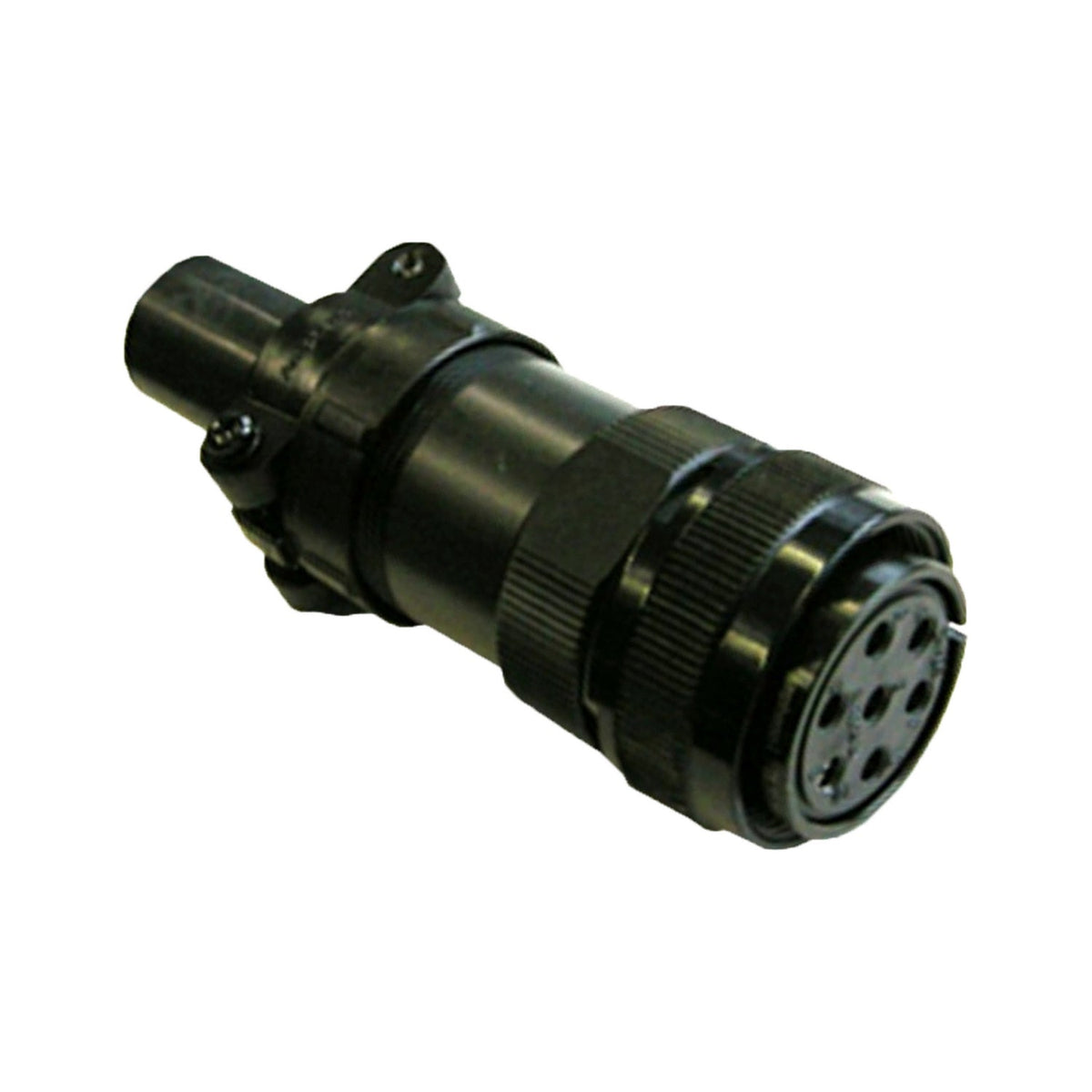

Schneider Electric VW3M5A21 Lexium 16 BCH16 military power connection kit
Schneider Electric VW3M5A21 Lexium 16 BCH16 military power connection kit

Schneider Electric VW3M5A21 Lexium 16 BCH16 Military Connection Kit Power Servo Drive Accessory

Brand: Schneider Electric
Reference No: VW3M5A21
Catalog No: VW3M5A21
Series: Easy Lexium 16
Tariff Code (HS): 853690
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$248.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3M5A21 is a military-style connection kit for building the power cable of a BCH16 servo motor in the Easy Lexium 16 range. It comprises one MIL connector, two housings, a screw ring and a cable clamp screw ring, for on-site cable assembly. It fits the 0.85-1.5 kW BCH16 motor frames.

Technical Specifications

Reference VW3M5A21
Brand Schneider Electric
Range Compatibility Easy Lexium 16
Product Type Connection kit (spare part)
Device Application Building the motor power cable
Kit Composition 1 MIL connector, 2 housings, 1 screw ring, 1 cable clamp screw ring
Compatible Motors Servo motor BCH16, 100/130 mm frame, 0.85-1.5 kW
Units per Package (inner) 1
Units per Package (outer) 25

Selection Notes

The VW3M5A21 is the military-connector kit for the larger 100-130 mm frame BCH16 motors, versus the plastic TE-style VW3M5A11 kit used on the smaller 40-80 mm frames. Use the VW3M5A22 power-and-brake kit instead when the motor is fitted with a holding brake.

Technical Details

Short Description
Lexium 16 BCH16 military power connection kit, 1 MIL connector, 2 housings, 25/pack.
Catalog No
VW3M5A21
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
Lexium 16 BCH16
Tariff Code
853690
