Schneider Electric VW3M5A12R05 Lexium 16 BCH16 Brake Control Cable 2x0.5 mm² 5 m Servo Cable

% $-37.19

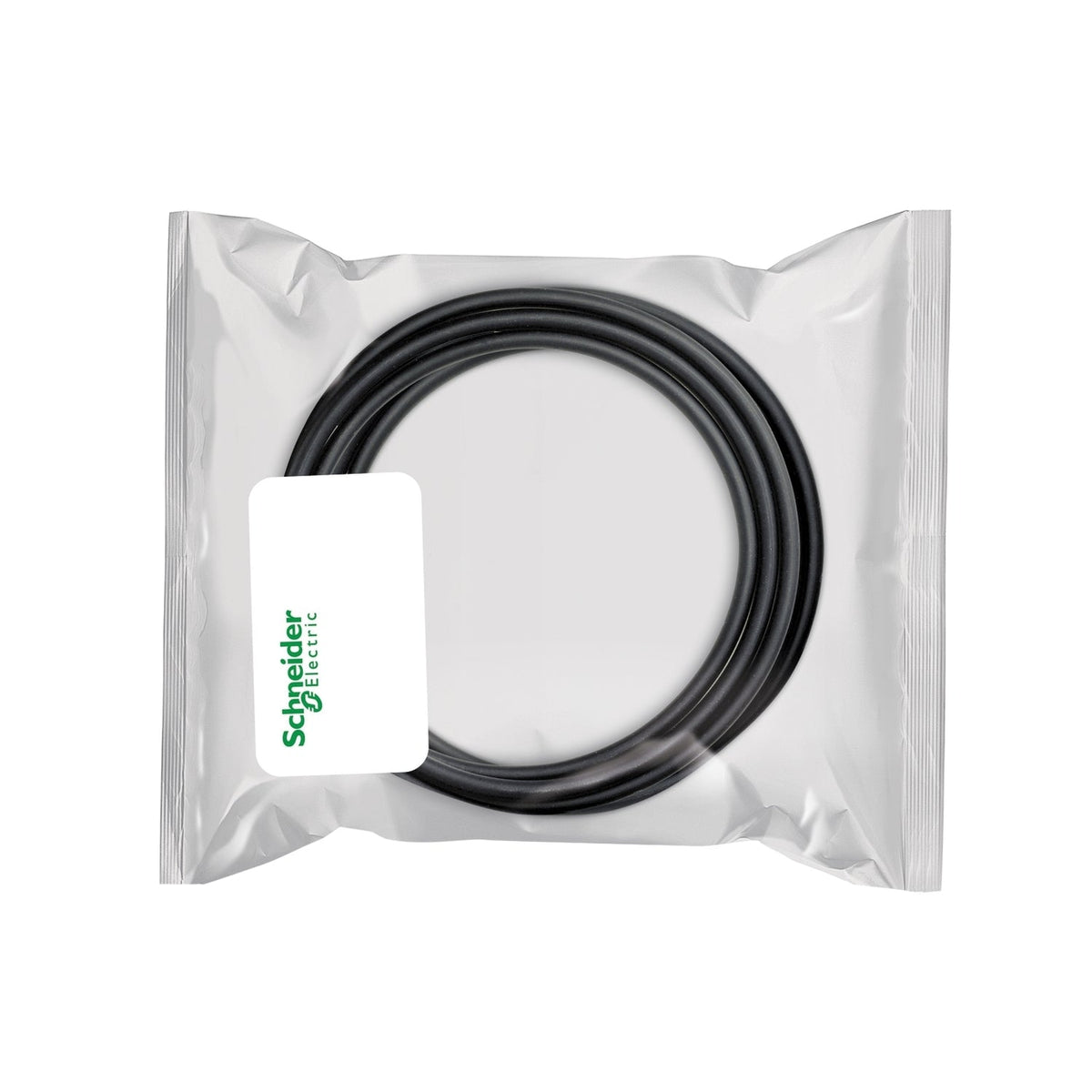

Schneider Electric VW3M5A12R05 Lexium 16 BCH16 brake control cable 5 m
Schneider Electric VW3M5A12R05 Lexium 16 BCH16 brake control cable 5 m

Schneider Electric VW3M5A12R05 Lexium 16 BCH16 Brake Control Cable 2x0.5 mm² 5 m Servo Cable

Brand: Schneider Electric
Reference No: VW3M5A12R05
Catalog No: VW3M5A12R05
Series: Lexium
Tariff Code (HS): 854442
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$37.19

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3M5A12R05 is an unshielded 5 m brake control cable that wires the holding brake of a BCH16 servo motor to a Lexium 16D (LXM16D) servo drive, with 2 x 0.5 mm² conductors. It has a 2-position TE connector on the motor side and flying-lead lugs on the drive side. Weighing 0.3 kg, it covers the 0.1-0.75 kW BCH16 motor frames with brake.

Technical Specifications

Reference VW3M5A12R05
Brand Schneider Electric
Range Compatibility Easy Lexium 16
Product Type Cable (brake control cable)
Accessory Type Connection accessory
Cable Composition 2 x 0.5 mm²
Cable Length 5 m
Shielding Unshielded
Connector - Motor Side 2-position TE connector
Connector - Drive Side Free end with flying-lead lugs
Compatible Motors Servo motor BCH16, 40/60/80 mm frame, with brake
Compatible Drives Motion servo drive LXM16D, 0.1-0.75 kW, 200-230 V
Net Weight 0.3 kg

Selection Notes

The VW3M5A12R05 wires only the holding-brake circuit and is used alongside the VW3M5A11R05 power cable, not in place of it, on brake-equipped BCH16 motors. Its 2-position TE connector and 2 x 0.5 mm² conductors are sized for the brake coil only, not the motor power path.

Technical Details

Short Description
Lexium 16 BCH16 brake control cable, 2x0.5 mm², 5 m, unshielded, TE connector, 0.3 kg.
Catalog No
VW3M5A12R05
Delivery Date (Days)
30 days
Model Number
Lexium 16 BCH16
Tariff Code
854442
