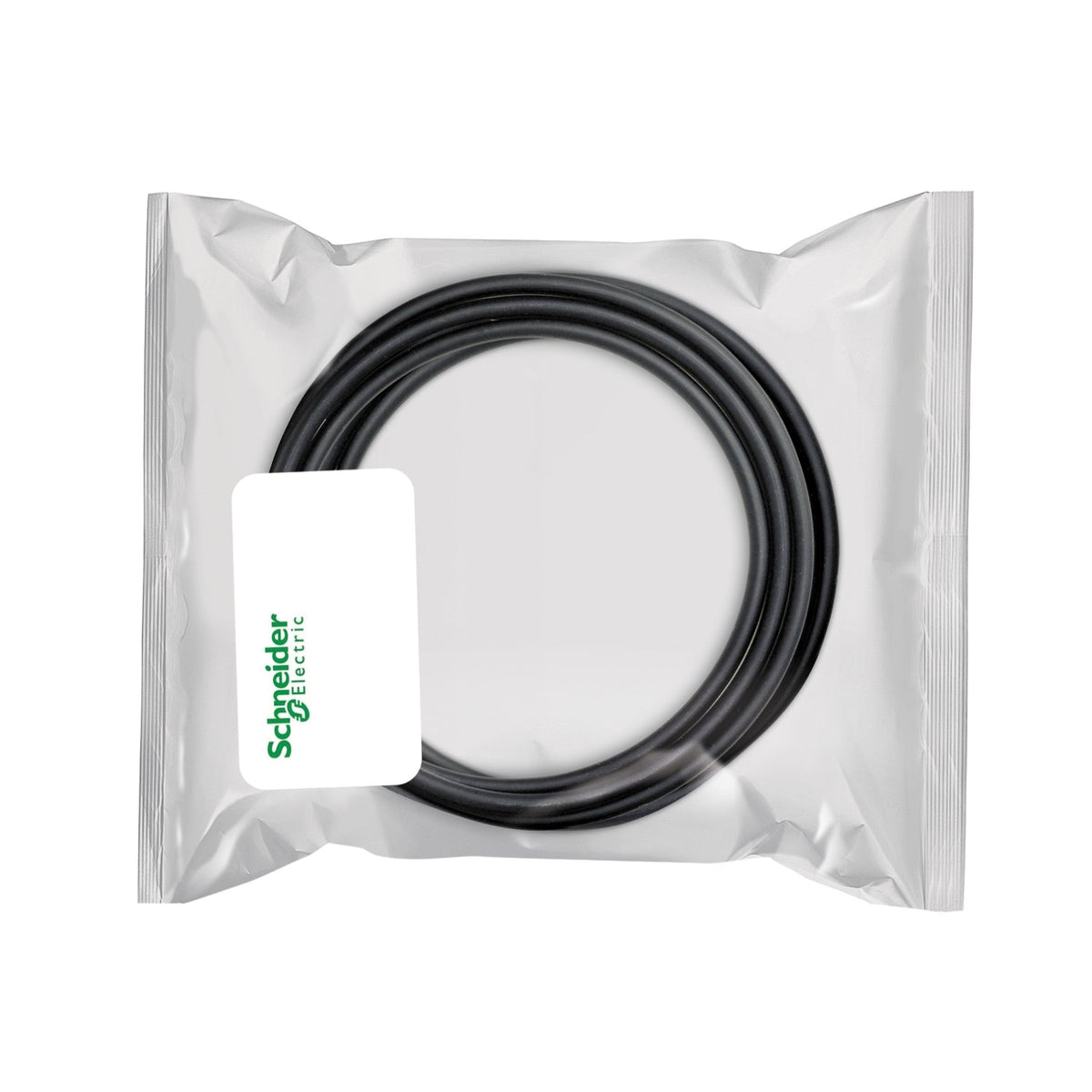

Schneider Electric VW3M5103R100 Lexium BSH Servo Motor Power Cable 4x4 mm² + 2x1 mm² 10 m Servo Cable

% $-421.21
Schneider Electric VW3M5103R100 Lexium BSH/BMH power cable 10 m - 4x4 mm²
Schneider Electric VW3M5103R100 Lexium BSH/BMH power cable 10 m - 4x4 mm²

Schneider Electric VW3M5103R100 Lexium BSH Servo Motor Power Cable 4x4 mm² + 2x1 mm² 10 m Servo Cable

Brand: Schneider Electric
Reference No: VW3M5103R100
Catalog No: VW3M5103R100
Tariff Code (HS): 854442
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$421.21

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3M5103R100 is a preassembled 10 m power cable that connects a Lexium BSH or BMH servo motor to its servo drive, wired with 4 x 4 mm² + 2 x 1 mm² conductors. It terminates in an industrial M40 connector on the motor side and a free end for wiring into the drive terminal block. Weighing 4.13 kg, it fits the Lexium 05, Lexium 15 and Lexium 32 ranges.

Technical Specifications

Reference VW3M5103R100
Brand Schneider Electric
Range Compatibility Lexium 05, Lexium 15, Lexium 32
GTIN 3389119207416
Product Type Power cable
Accessory Type Preassembled power cordset
Cable Composition 4 x 4 mm² + 2 x 1 mm²
Cable Length 10 m
Connector - Motor Side Industrial M40 connector
Connector - Drive Side Free end
Compatible Motors Servo motor BMH, 190/205 mm frame; Servo motor BSH, 140 mm frame
Net Weight 4.13 kg
Country of Manufacture Czech Republic (CZ)
Units per Package 18

Selection Notes

The VW3M5103R100 steps up to the larger M40 connector and 4 mm² conductors, carrying more current than the VW3M5102 series' M23/2.5 mm² cable for the 190-205 mm frame BMH motors. At 10 m it is the longest cable in the M40 family; the 3 m VW3M5103R30 and 5 m VW3M5103R50 cover shorter runs in the same cross-section.

Technical Details

Short Description
Lexium BSH/BMH servo motor power cable, 4x4 mm² + 2x1 mm², 10 m, M40 connector, 4.13 kg.
Catalog No
VW3M5103R100
Delivery Date (Days)
30 days
Model Number
Lexium BSH/BMH
Tariff Code
854442
