Schneider Electric VW3M5102R50 Lexium BSH Servo Motor Power Cable 4x2.5 mm² 5 m Servo Cable

% $-188.43

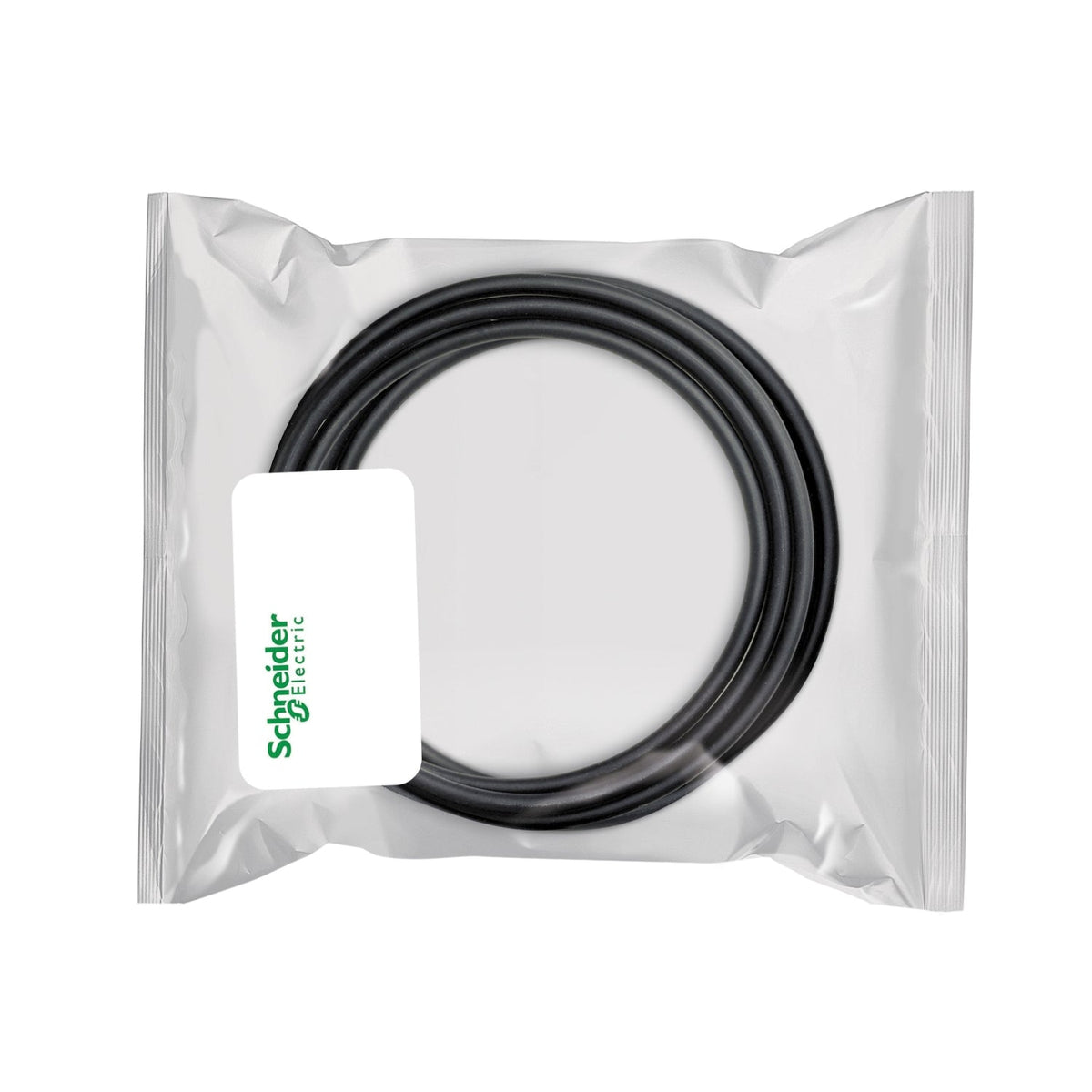

Schneider Electric VW3M5102R50 Lexium BSH power cable 5 m - 4x2.5 mm²
Schneider Electric VW3M5102R50 Lexium BSH power cable 5 m - 4x2.5 mm²

Schneider Electric VW3M5102R50 Lexium BSH Servo Motor Power Cable 4x2.5 mm² 5 m Servo Cable

Brand: Schneider Electric
Reference No: VW3M5102R50
Catalog No: VW3M5102R50
Tariff Code (HS): 854442
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$188.43

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3M5102R50 is a preassembled 5 m power cable that connects a Lexium BSH servo motor to its servo drive, wired with 4 x 2.5 mm² + 2 x 1 mm² conductors. It terminates in an industrial M23 connector on the motor side and a free end for wiring into the drive terminal block. Weighing 1.67 kg, it fits the Lexium 05 and Lexium 32 ranges.

Technical Specifications

Reference VW3M5102R50
Brand Schneider Electric
Range Compatibility Lexium 05, Lexium 32
GTIN 3389119207355
Product Type Power cable
Accessory Type Preassembled power cordset
Cable Composition 4 x 2.5 mm² + 2 x 1 mm²
Cable Length 5 m
Connector - Motor Side Industrial M23 connector
Connector - Drive Side Free end
Compatible Motors Servo motor BMH, 140 mm frame (2- and 3-stack)
Net Weight 1.67 kg
Country of Manufacture Czech Republic (CZ)
Units per Package 30

Selection Notes

Choose the VW3M5102R50 when the servo drive sits 3-5 m from the BMH motor; the shorter VW3M5102R30 is the better fit in compact cabinets to minimize cable slack. The free end on the drive side wires directly into the servo drive's power terminal block, so no additional connector kit is required.

Technical Details

Short Description
Lexium BSH servo motor power cable, 4x2.5 mm² + 2x1 mm², 5 m, M23 connector to free end, 1.67 kg.
Catalog No
VW3M5102R50
Delivery Date (Days)
30 days
Model Number
Lexium BSH
Tariff Code
854442
