Schneider Electric VW3M5102R100 Lexium Servo Motor Power Cable 4x2.5 mm² + 2x1 mm² 10 m BSH Servo Cable

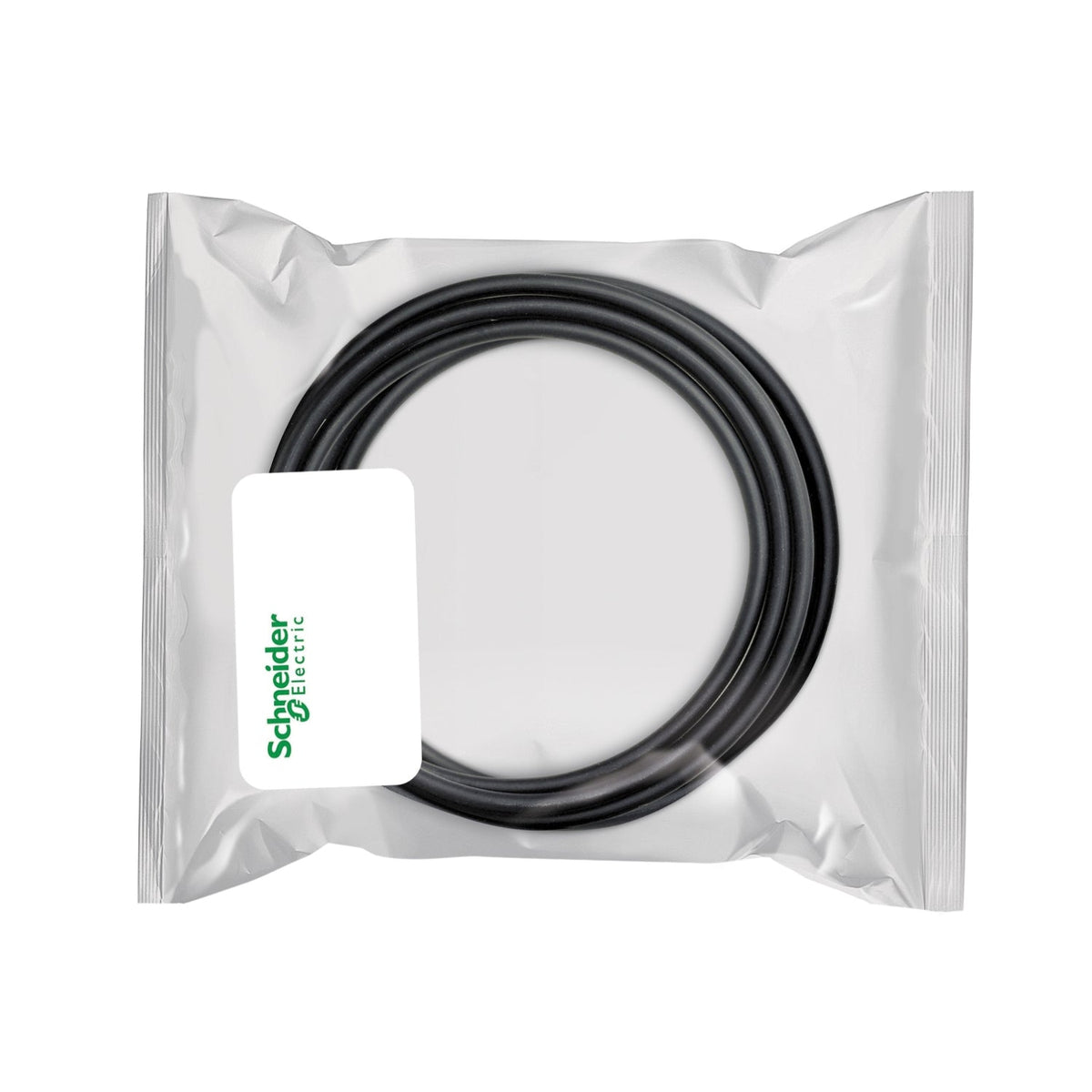

The Schneider Electric VW3M5102R100 is a 10 m preassembled power cable between a BSH servo motor and a Lexium 05 or 32 servo drive. It has a heavier 4 x 2.5 mm² + 2 x 1 mm² conductor composition than the VW3M5101 cable family, terminates in an industrial M23 connector on the motor side and a free end on the drive side, and weighs 3.21 kg.

Technical Specifications

Selection Notes

The VW3M5102R100 uses a heavier 4 x 2.5 mm² power conductor than the 4 x 1.5 mm² VW3M5101 cable family, sized for the higher continuous current drawn by the largest-frame (140 mm) servo motors rather than the mid-frame motors the thinner cable covers. Like the VW3M5101 family it terminates in an M23 connector on the motor side with a free end for drive-side wiring, and is only offered in the 10 m length.

Applications

Wires power between a large-frame (140 mm) servo motor and a Lexium 05 or 32 servo drive where the motor's higher rated current needs the heavier 2.5 mm² conductor.
