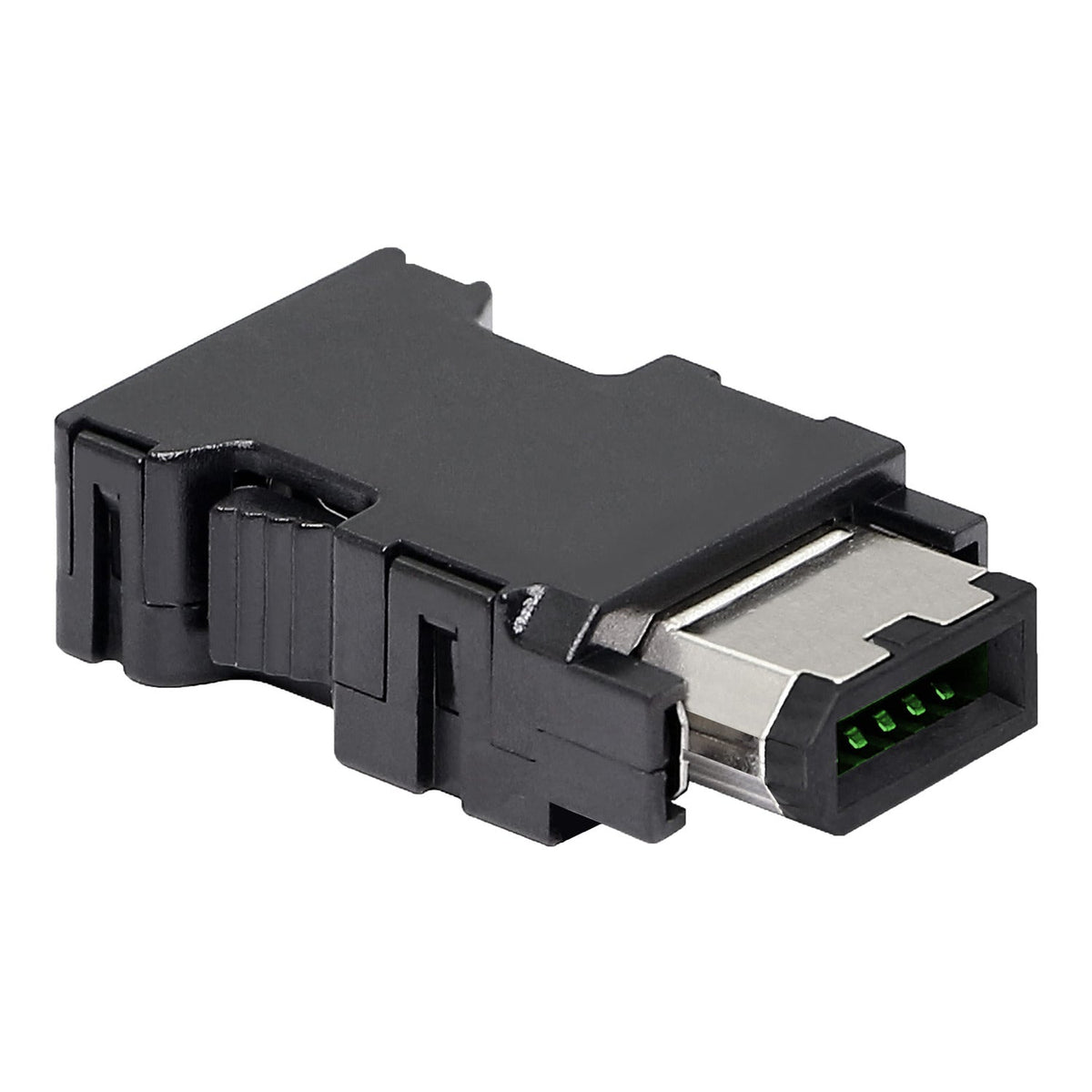

Schneider Electric VW3M4B21 Easy Lexium 18 ENC Encoder Connector Kit IEEE 1394 6-pin Servo Drive Accessory

The Schneider Electric VW3M4B21 is an encoder connector kit for the Lexium 18 range, built around a 6-pin IEEE 1394 connector for field-terminating encoder feedback wiring on a Lexium 18 servo motor. It is a spare-part connection kit with no cable included, matched to the motor's encoder output, without a separate cable or strain-relief boot supplied.

Technical Specifications

Selection Notes

The VW3M4B21 terminates encoder feedback wiring on a Lexium 18 servo motor using a 6-pin IEEE 1394 connector, completing the Lexium 18 connection set alongside the VW3M4B01 power kit and VW3M4B11/VW3M4B12 I/O kits. As a bare connector kit it needs crimping or soldering to finish a custom encoder cordset rather than arriving pre-assembled, so the servo motor's encoder pinout datasheet should be checked before crimping.

Applications

Used to field-terminate encoder feedback wiring on a Lexium 18 servo motor when building a custom cordset or replacing a damaged factory encoder cable.
