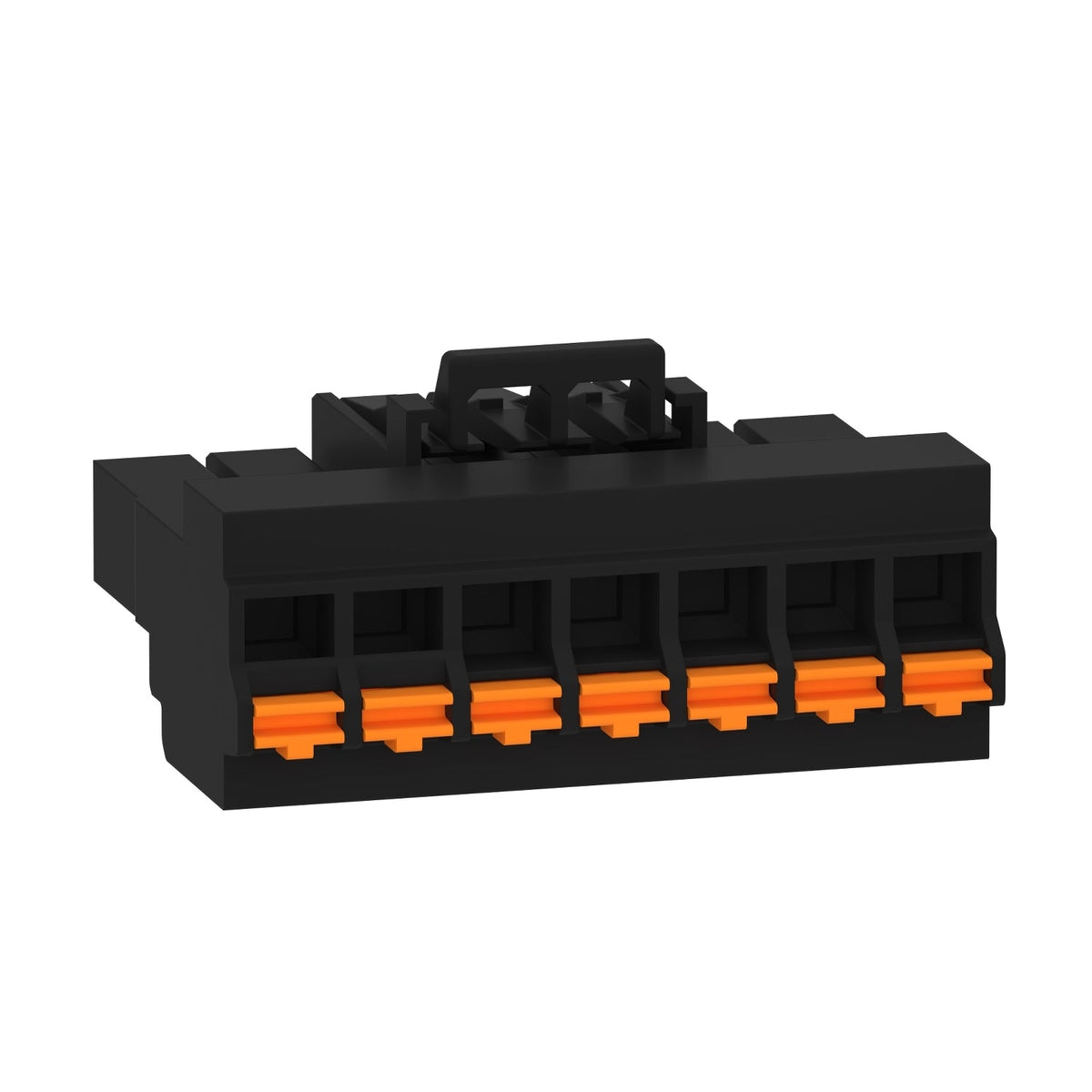

Schneider Electric VW3M4A21 Easy Lexium 16 CNP Power Connector Kit Servo Drive Accessory

The Schneider Electric VW3M4A21 is a CNP power connector kit for the Easy Lexium 16 range, used to terminate the power cordset on an LXM16D servo drive. The kit supplies the single connector needed at the drive's CNP power port, covering every LXM16D power rating from 0.1 kW to 1.5 kW at 200...230 V single phase.

Technical Specifications

Selection Notes

The VW3M4A21 is the power-side counterpart to the VW3M4A11 (CN1 control) and VW3M4A31 (CN3 encoder) connector kits in the Easy Lexium 16 accessory set - all three terminate a different cordset on the same LXM16D drive. One connector covers the entire 0.1-1.5 kW LXM16D power range, so the same part number applies regardless of which drive rating is fitted. Mounting hardware is not included; the connector accepts standard crimp-pin power conductors.

Applications

Used to field-terminate the power cordset feeding an LXM16D servo drive when building a custom cable instead of ordering a pre-made power cord.
