Schneider Electric VW3A9921 Altivar ATV320 ATV32 GV2 Circuit-Breaker Mounting Kit VFD Accessory

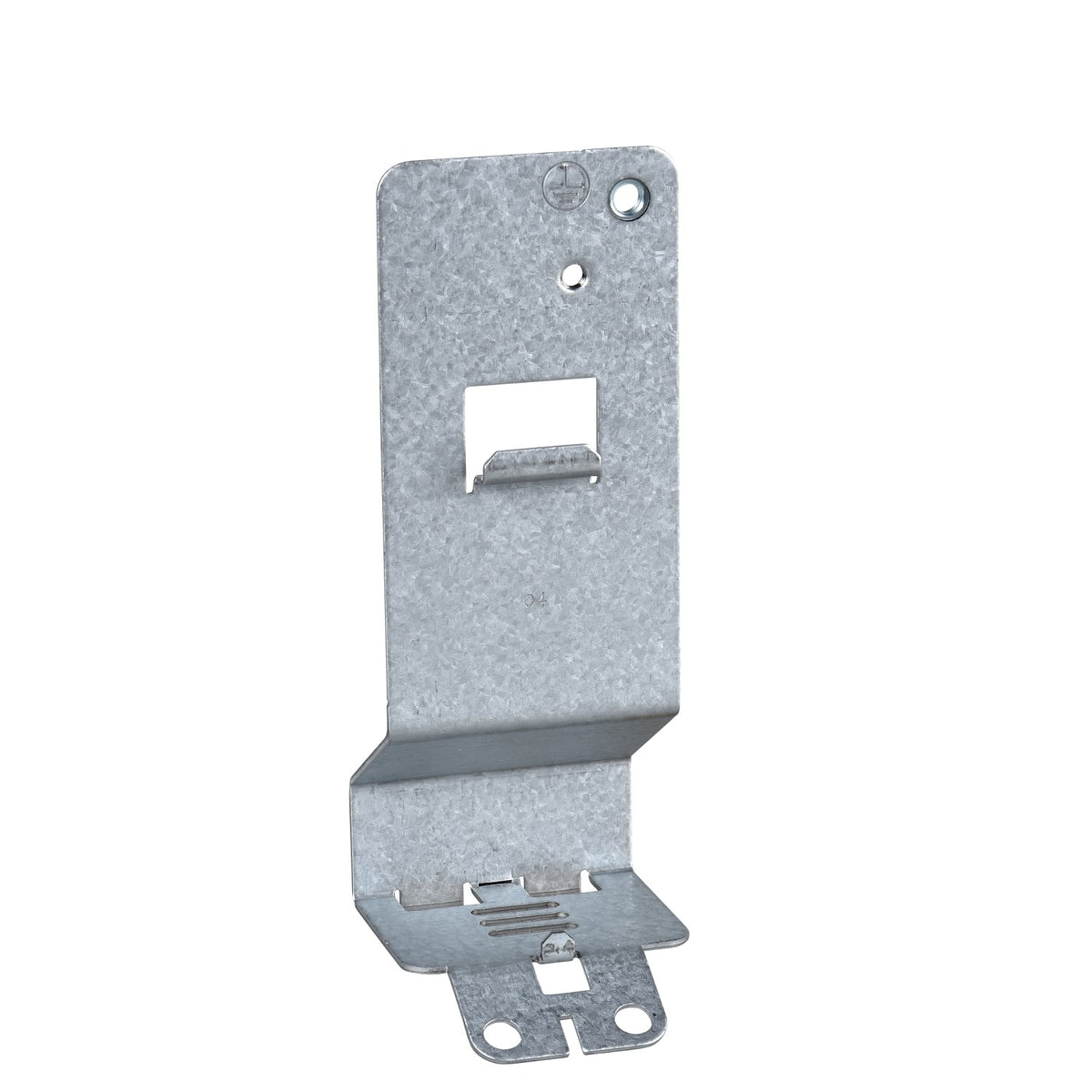

The Schneider Electric VW3A9921 is a mechanical mounting kit that lets a GV2 motor-circuit breaker mount directly onto an Altivar 32 or Altivar Machine ATV320...B drive, for the 0.18-2.2 kW single-phase 200-240 V and 0.37-4 kW three-phase 380-500 V variants. The kit consists of an adaptor plate, weighs 0.075 kg and is sold in packs of 10.

Technical Specifications

Selection Notes

The VW3A9921 combines a motor-circuit breaker and drive into a single mechanical assembly by mounting a GV2 breaker directly onto the Altivar 32 or Altivar Machine ATV320...B drive body, avoiding a separate bracket or DIN-rail run between the two devices. It is sold per 10-piece indivisible quantity, so it is a batch item for panel builders standardizing on this mounting method, not a single-unit spare. It fits the same 0.18-2.2 kW single-phase and 0.37-4 kW three-phase drive range as the 90-degree control-mounting adaptor in the accessory line.
