Schneider Electric VW3A3607 Altivar Profibus DP V1 Communication Module VFD Accessory

% $-231.82

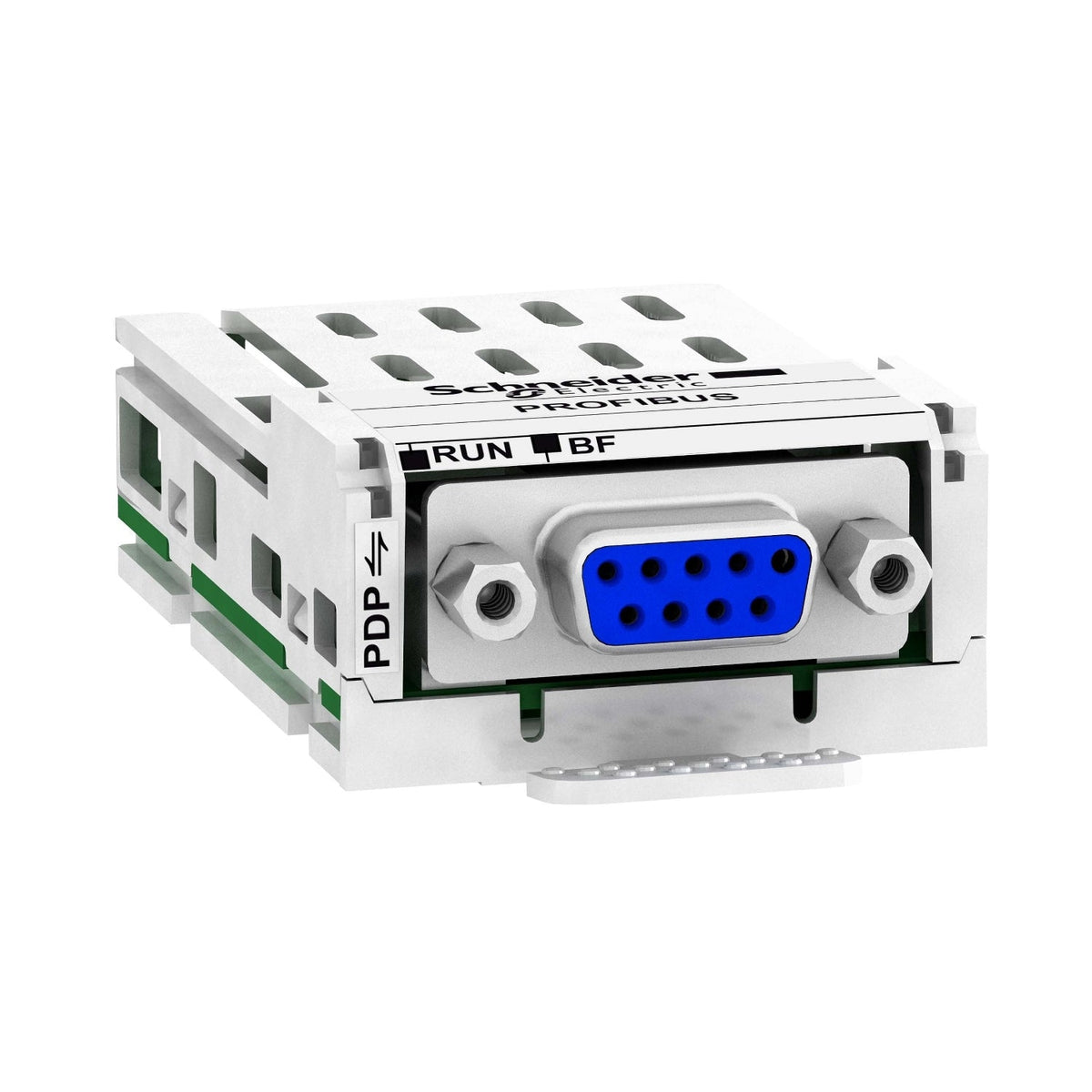

Schneider Electric VW3A3607 Altivar Profibus DP V1 communication module
Schneider Electric VW3A3607 Altivar Profibus DP V1 communication module

Schneider Electric VW3A3607 Altivar Profibus DP V1 Communication Module VFD Accessory

Brand: Schneider Electric
Reference No: VW3A3607
Catalog No: VW3A3607
Series: Altivar
Tariff Code (HS): 850490
Communication: Profibus DP V1
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$231.82

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3A3607 is a communication module that adds Profibus DP V1 connectivity to Altivar 32, Altivar Easy 610, Altivar Machine ATV320/ATV340, Altivar Process ATV600/ATV900/Modular and Lexium 32 drives. It connects through a female SUB-D9 port at 9.6 kbps to 12 Mbps, supports PROFIdrive V4.1 parameter management, and reports RUN and bus-fault status on two front-panel LEDs.

Technical Specifications

Reference VW3A3607
Brand Schneider Electric
GTIN 3606480177583
Range Altivar
Product or Component Type Communication module
Accessory Category Communication accessories
Range Compatibility Altivar 32, Altivar Machine ATV340 (except Sercos drives), Altivar Easy 610, Lexium 32, Altivar Process ATV900, Altivar Process ATV600, Altivar Machine ATV320, Altivar Process Modular
Communication Port Protocol Profibus DP V1
Electrical Connection 1 female connector SUB-D 9
Transmission Rate 9.6 kbps to 12 Mbps
Addressing 1-126, configurable by graphic terminal or SoMove software
Communication Service 4 configurable telegrams, mapping of process data from the master, parameter management compliant with PROFIdrive V4.1, several DP V1 messaging modes, native ATV32 drive profile (IEC 61800-7-201 / CiA 402)
Display Type 1 LED RUN, 1 LED bus fault (BF)
Diagnostic Function Diagnostic data with VSD status, host drive handled from two masters (MS0 and MS1), standard identification and maintenance requests
Bus Profile PROFIdrive, CiA 402

Certifications & Standards

  • IEC 61800-7-201

Selection Notes

Choose the VW3A3607 for plants standardized on Profibus DP rather than an Ethernet-based fieldbus. Its dual-master handling (MS0 and MS1) lets one master run cyclic control while a second monitors diagnostics, and the PROFIdrive V4.1 parameter mapping keeps drive commissioning consistent with other Profibus DP devices on the same segment.

Technical Details

Short Description
Profibus DP V1 communication module (12 Mbps, SUB-D9) for Altivar ATV320/600/900 drives.
Catalog No
VW3A3607
Delivery Date (Days)
30 days
Model Number
Altivar
Tariff Code
850490
