Schneider Electric VW3A3601 Altivar EtherCAT Communication Module VFD Accessory

Name: Schneider Electric VW3A3601 Altivar EtherCAT Communication Module VFD Accessory
Brand: Schneider Electric
SKU: VW3A3601
Price: 335.26 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: VW3A3601

Catalog No: VW3A3601

Series: Altivar

Tariff Code (HS): 850490

Communication: EtherCAT

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$335.26

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

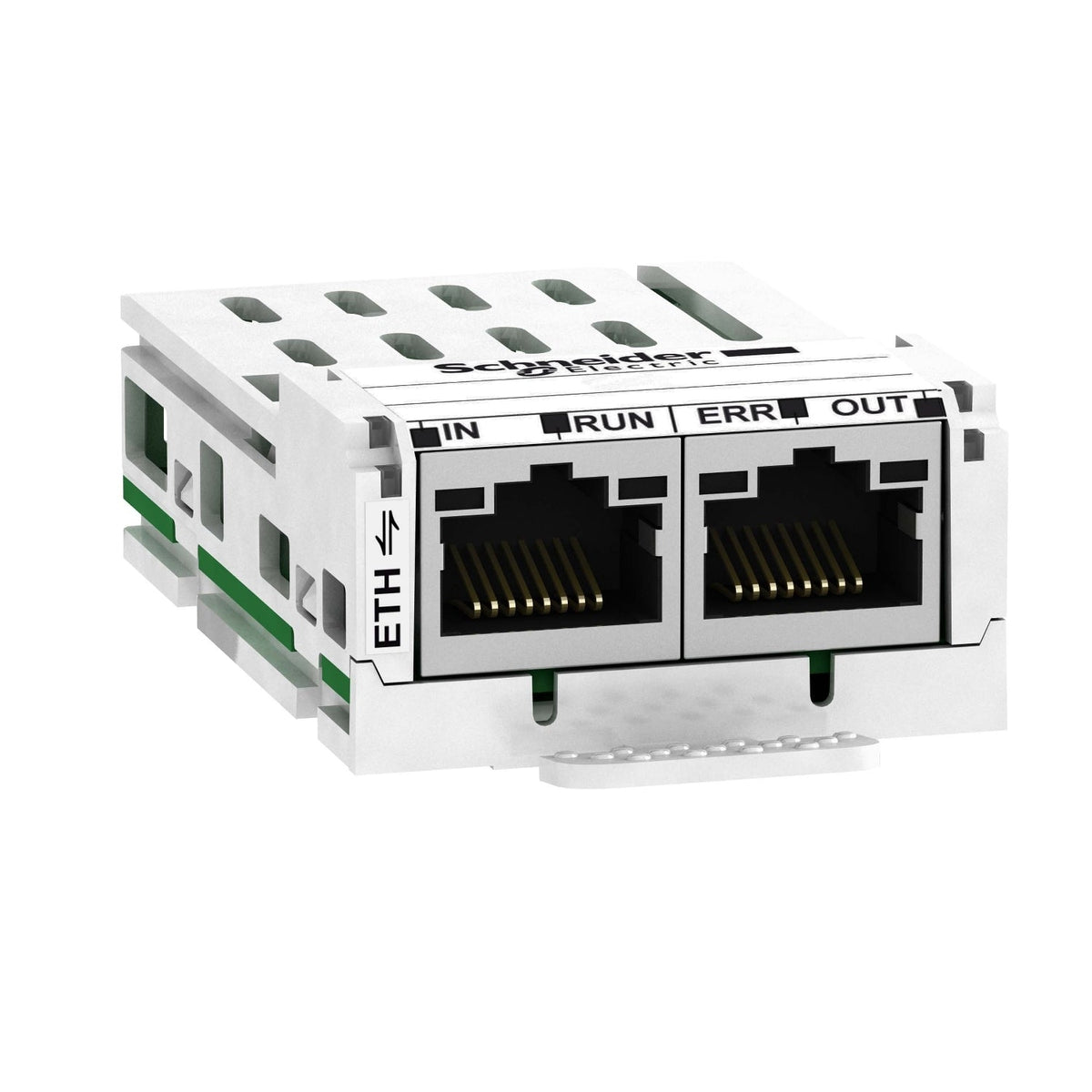

The Schneider Electric VW3A3601 is a communication module that adds EtherCAT fieldbus connectivity to Altivar 32, Altivar Machine ATV320/ATV340, Altivar Process ATV900, Altivar Process Modular and Lexium 32 drives. It transmits at 100 Mbps over two RJ45 connectors and supports CANopen over EtherCAT (CoE) with the CiA 402 velocity drive profile.

Technical Specifications

Reference	VW3A3601
Brand	Schneider Electric
GTIN	3606480326714
Range	Altivar
Product or Component Type	Communication module
Accessory Category	Communication accessories
Range Compatibility	Altivar Process Modular, Altivar Machine ATV340 (except Sercos drives), Altivar Machine ATV320, Altivar Process ATV900, Altivar 32, Lexium 32
Communication Port Protocol	EtherCAT
Electrical Connection	2 connectors RJ45
Transmission Rate	100 Mbps
Maximum Cable Distance	100 m at 100 Mbps
Addressing	Logical addressing, node addressing, position addressing
Communication Service	PDO and SDO support, drive profile CiA 402 velocity mode (IEC 61800-7-201), CANopen over EtherCAT (CoE)
Display Type	1 LED input status, 1 LED RUN, 1 LED error, 1 LED output status

Certifications & Standards

IEC 61800-7-201

Selection Notes

Choose the VW3A3601 for EtherCAT fieldbus segments where sub-millisecond cyclic updates matter, since EtherCAT's daisy-chained 100 Mbps ring outperforms Modbus TCP or CANopen for coordinated multi-axis motion. The module's CiA 402 velocity profile lets the drive slot directly into a standard EtherCAT motion controller without a custom mapping layer.

Technical Details

Short Description

EtherCAT communication module (100 Mbps, 2x RJ45) for Altivar and Lexium 32 drives.

Catalog No

VW3A3601

Delivery Date (Days)

30 days

Model Number

Altivar

Tariff Code

850490
