Schneider Electric VW3A3422 Altivar Analog Encoder Interface Module VFD Accessory

% $-191.94
Schneider Electric VW3A3422 Altivar analog encoder interface module
Schneider Electric VW3A3422 Altivar analog encoder interface module

Schneider Electric VW3A3422 Altivar Analog Encoder Interface Module VFD Accessory

Brand: Schneider Electric
Reference No: VW3A3422
Catalog No: VW3A3422
Series: Altivar
Tariff Code (HS): 850490
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$191.94

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

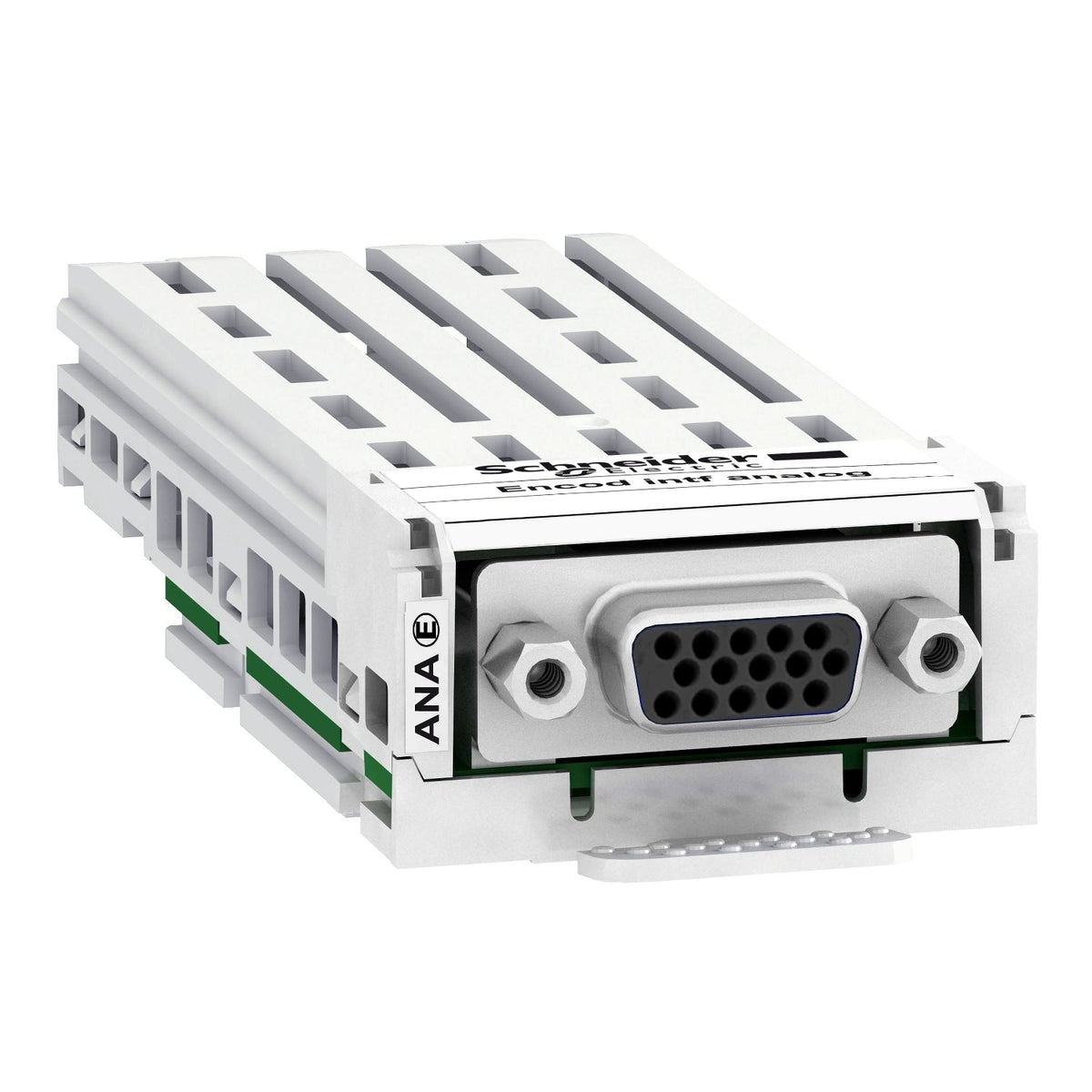

The Schneider Electric VW3A3422 is an analog encoder interface module that connects a SinCos Hiperface or 1 Vpp encoder to Altivar Machine ATV340, Altivar Process ATV900 and Altivar Process Modular drives. It supplies 5 V, 12 V or 24 V DC to the encoder and reads position feedback through a female high-density SUB-D15 connector, up to a 100 kHz operating frequency.

Technical Specifications

Reference VW3A3422
Brand Schneider Electric
GTIN 3606485441269
Range Altivar
Product or Component Type Analog encoder interface module
Range Compatibility Altivar Machine ATV340, Altivar Process ATV900, Altivar Process Modular
Encoder Type SinCos Hiperface, 1 Vpp
Rated Supply Voltage (Us) 5 V DC (4.75-5.25 V), 12 V DC (11.4-12.6 V), 24 V DC (22.8-25.2 V)
Maximum Supply Current 0.25 A at 5 V DC, 0.1 A at 12 V DC, 0.05 A at 24 V DC
Protection Type Overload protection, short-circuit protection
Maximum Cable Distance 100 m
Maximum Operating Frequency 100 kHz
Connector Type 1 female high-density SUB-D 15
Net Weight 0.15 kg

Selection Notes

Specify the VW3A3422 when the motor's feedback device is an analog SinCos Hiperface or 1 Vpp encoder rather than a digital RS422/EnDat type. Its lower 100 kHz maximum operating frequency reflects the analog signal path and suits standard servo feedback loops on ATV340 and ATV900 drives.

Technical Details

Short Description
Analog encoder interface module for SinCos Hiperface / 1 Vpp encoders on Altivar drives.
Catalog No
VW3A3422
Delivery Date (Days)
30 days
Model Number
Altivar
Tariff Code
850490
