Schneider Electric VW3A3203 Altivar Additional I/O Module 24V DC VFD Accessory

% $-265.47

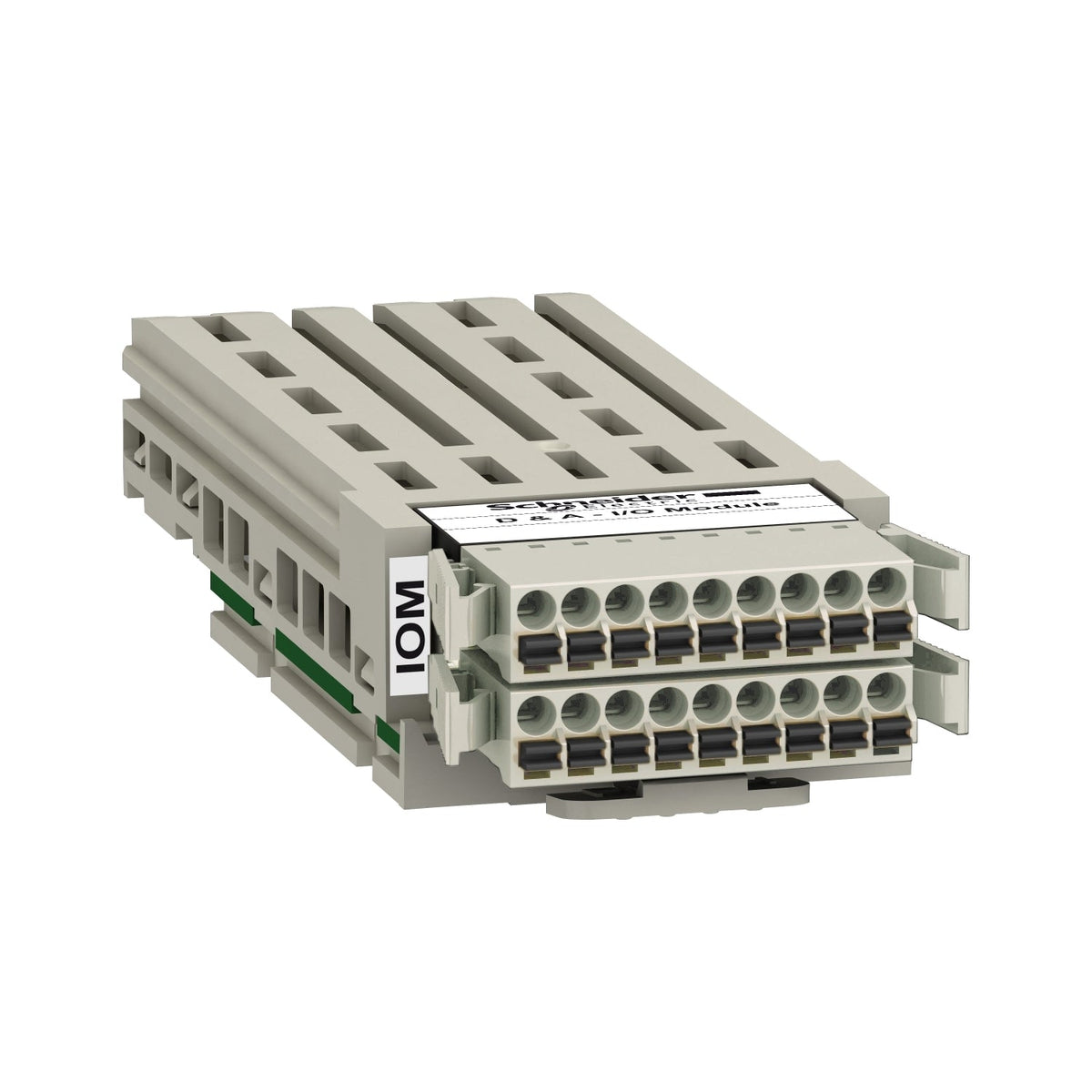

Schneider Electric VW3A3203 Altivar additional I/O module 24V DC
Schneider Electric VW3A3203 Altivar additional I/O module 24V DC

Schneider Electric VW3A3203 Altivar Additional I/O Module 24V DC VFD Accessory

Brand: Schneider Electric
Reference No: VW3A3203
Catalog No: VW3A3203
Tariff Code (HS): 850490
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$265.47

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3A3203 is an additional I/O module for the Altivar range, adding 2 configurable analog inputs, 6 discrete inputs and 2 discrete outputs at 24 V DC on a removable spring terminal block. It wires with 1.5 mm2 / 16 AWG conductors, includes reverse-polarity and short-circuit protection, and fits the Altivar Process ATV600, Altivar Machine ATV340, Altivar Process ATV900 and Altivar ATV610 drives.

Technical Specifications

Reference VW3A3203
Brand Schneider Electric
GTIN 3606480702525
Product or Component Type Additional I/O module
Input/Output Type 2 configurable analog inputs, 6 discrete inputs, 2 discrete outputs
Analogue Input Type AI4/AI5 configurable current 0-20 mA / 4-20 mA or voltage -10-10 V DC (24 V max, 20 kOhm) or PTC/Pt100/Pt1000, 14-bit, 0-1 ms
Discrete Input Type DI11-DI16 programmable, 250 Ohm, 1 ms, 2.5 mA, 24 V DC (<=30 V), positive or negative logic
Discrete Output Type DQ11, DQ12 assignable logic, 1 ms, 24 V DC (<=30 V), max 100 mA, positive or negative logic
Electrical Connection Removable spring terminal block, 1.5 mm2 / 16 AWG
Protection Type Reverse polarity protection (digital input), short-circuit protection (output)
Net Weight 0.5 kg
Range Compatibility Altivar Process ATV600, Altivar Machine ATV340, Altivar Process ATV900, Altivar ATV610

Technical Details

Short Description
Additional I/O module: 2 analog in, 6 discrete in, 2 discrete out, 24V DC, for Altivar drives.
Protection Type
Reverse polarity / short-circuit protection
Catalog No
VW3A3203
Delivery Date (Days)
30 days
Model Number
Altivar
Tariff Code
850490
