Schneider Electric VW3A1101 Altivar Remote Graphic Terminal 240x160 IP54 VFD Accessory

% $-233.69

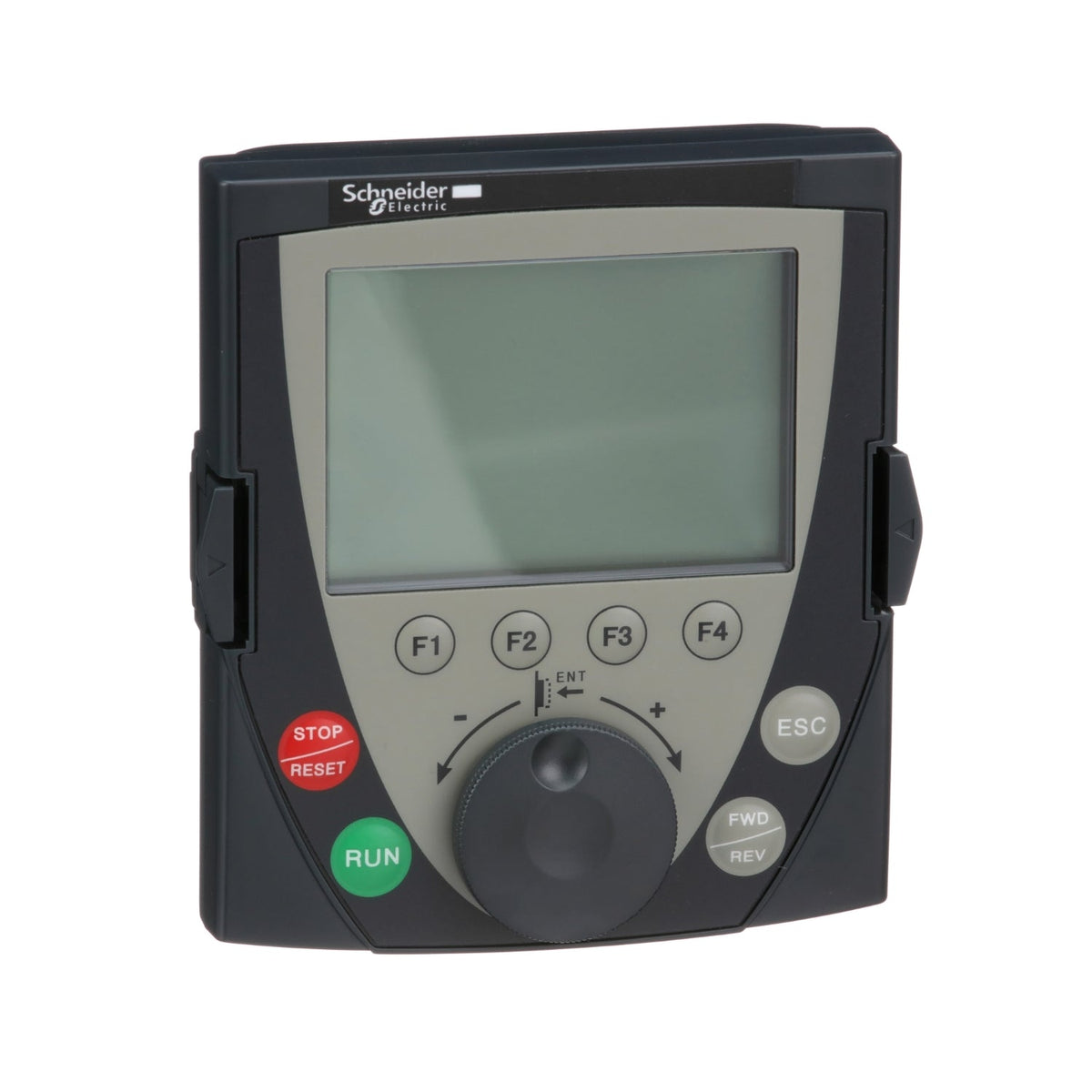

Schneider Electric VW3A1101 Altivar remote graphic terminal 240x160 IP54
Schneider Electric VW3A1101 Altivar remote graphic terminal 240x160 IP54

Schneider Electric VW3A1101 Altivar Remote Graphic Terminal 240x160 IP54 VFD Accessory

Brand: Schneider Electric
Reference No: VW3A1101
Catalog No: VW3A1101
Series: Altivar
Tariff Code (HS): 850490
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$233.69

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric VW3A1101 is an IP54 remote graphic terminal for the Altivar range, giving a 240 x 160 pixel, 8-line display to control, adjust and configure a drive, save and download configurations, and read live values. It mounts on the door of an enclosure and covers the Altivar 312, Altivar 61, Altivar Lift, Altivar 32, ATV320, Altivar 212, Altivar 71 and Altivar 61Q/71Q drives.

Technical Specifications

Reference VW3A1101
Brand Schneider Electric
GTIN 3389118069305
Range of Product Altivar
Product or Component Type Graphic terminal
Accessory Category Display and signalling accessories
Accessory Type Display terminal
Destination Variable speed drive
IP Degree of Protection IP54
Mounting Location On the door of an enclosure
Pixel Resolution 240 x 160
Messages Display Capacity 8 lines
User Language Italian, English, French, Spanish, German, Chinese
Ambient Air Temperature for Operation -15...50 degC
Net Weight 0.145 kg
Range Compatibility Altivar 312, Altivar 61, Altivar Lift, Altivar 32, Altivar Machine ATV320, Altivar 312 Solar, Altivar 212, Altivar 71, Altivar 61Q, Altivar 71Q

Selection Notes

The IP54 rating suits a standard cabinet door where the terminal is protected from dust and light splashes but not a direct washdown; where the panel faces hose-down cleaning, an IP65-rated terminal is the better fit. The 8-line, 240 x 160 pixel screen and six selectable languages make it suited to sites where operators read live drive values and download saved configurations directly from the enclosure door.

Technical Details

Short Description
IP54 remote graphic terminal, 240 x 160 px, 8 lines, for Altivar 32, 61, 71, 212 drives.
Mounting Type
On the door of an enclosure
Protection Type
IP54
Catalog No
VW3A1101
Delivery Date (Days)
30 days
Model Number
Altivar
Tariff Code
850490
