Schneider Electric TRV00121 EnerlinX FDM121 Display Module 96x96 mm IP53 Circuit Breaker Accessory

% $-251.13

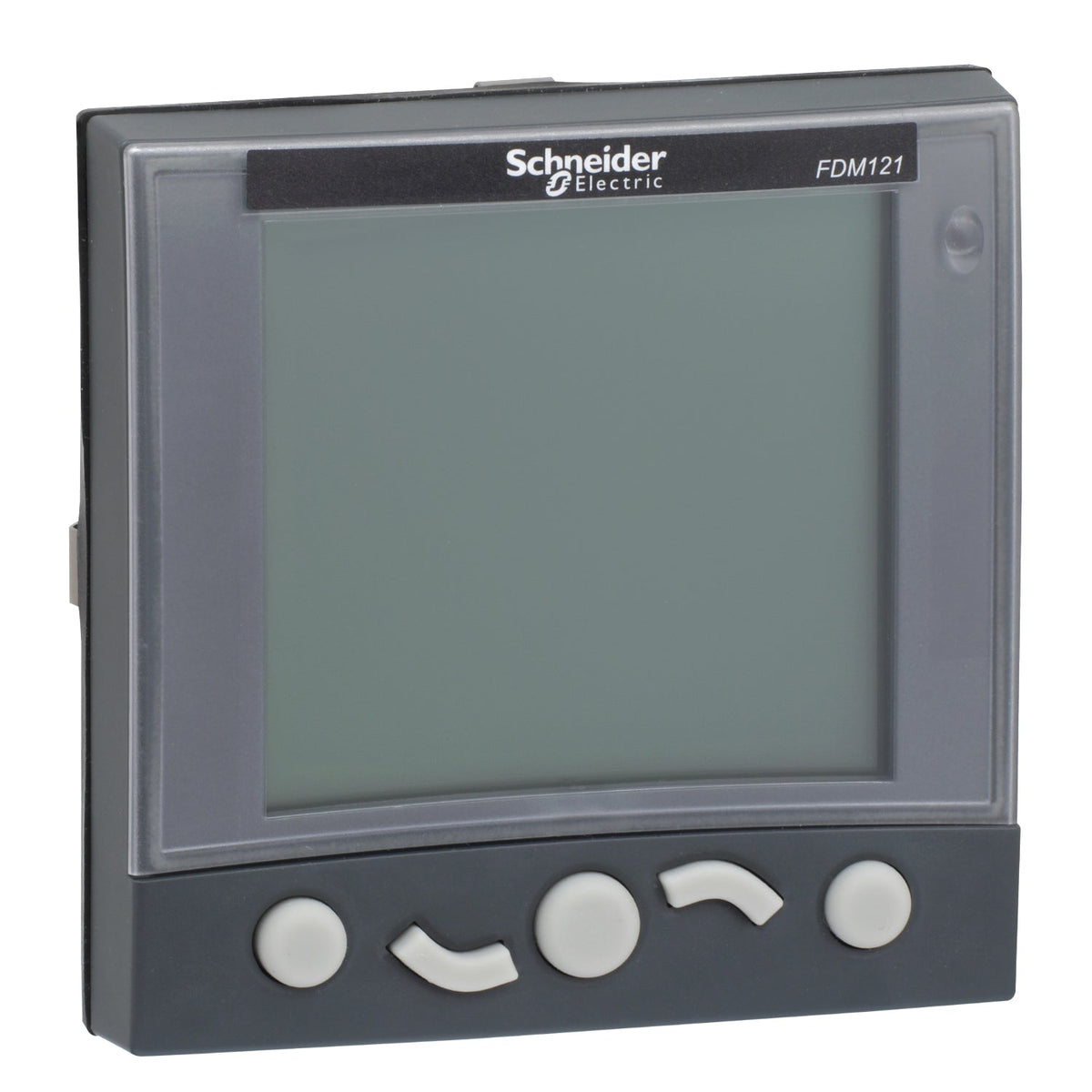

Schneider Electric TRV00121 Enerlin'X FDM121 display module 96x96 mm IP53 – Circuit Breaker Accessory
Schneider Electric TRV00121 Enerlin'X FDM121 display module 96x96 mm IP53 – Circuit Breaker Accessory

Schneider Electric TRV00121 Enerlin'X FDM121 Display Module 96x96 mm IP53 Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: TRV00121
Catalog No: TRV00121
Tariff Code (HS): 853890
Communication: ULP (2x RJ45)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$251.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TRV00121 is the Enerlin'X FDM121 switchboard display module, showing measurements, alarms, and operating assistance data from one ComPacT, MasterPact or PowerPact circuit breaker over a ULP connection. It flush-mounts in a 96 x 96 mm door cut-out with an LCD screen and is rated IP53 on the front face.

Technical Specifications

Reference TRV00121
Brand Schneider Electric
GTIN 3606480025389
Device Short Name FDM121
Product Name Enerlin'X FDM
Product or Component Type Display module
Range Compatibility MasterPact MTZ, NW, NT; Compact NSX; ComPact NS630b...3200; PowerPact H, J, L, P, R
Function Remote control, view network, metering, display alarm
Control Type Remote control
Mounting Mode Flush mounting (surface mount kit or door cut-out)
Display Type LCD screen, white backlighting, 128 x 128 px
View Angle (H x V) 60 x 30°
[Us] Rated Supply Voltage 24 V DC -20...+10 %
Current Consumption 21 mA
Dimensions (H x W x D) 96 x 96 x 33.6 mm
IP Degree of Protection IP53 front face
Ambient Temperature (Operation) -10...55 °C
Ambient Temperature (Storage) -40...85 °C
Country of Origin CN

Certifications & Standards

  • CE
  • CSA
  • UL

Selection Notes

The FDM121 reads one breaker at a time over its ULP link, so plan one unit per monitored ComPacT, MasterPact or PowerPact device; pair it with an LV434196/197 ULP cord sized for the distance between the breaker and the door-mounted display. Its 24 V DC terminal block and two RJ45 ULP sockets let it sit either on the ULP line or power the attached devices directly.

Technical Details

Short Description
Enerlin'X FDM121 display module, 96x96 mm LCD, 24 V DC, IP53, for ULP circuit breakers.
Mounting Type
Flush mounting
Protection Type
IP53 (front face)
Catalog No
TRV00121
Delivery Date (Days)
30 days
Model Number
Enerlin'X FDM121
Tariff Code
853890
