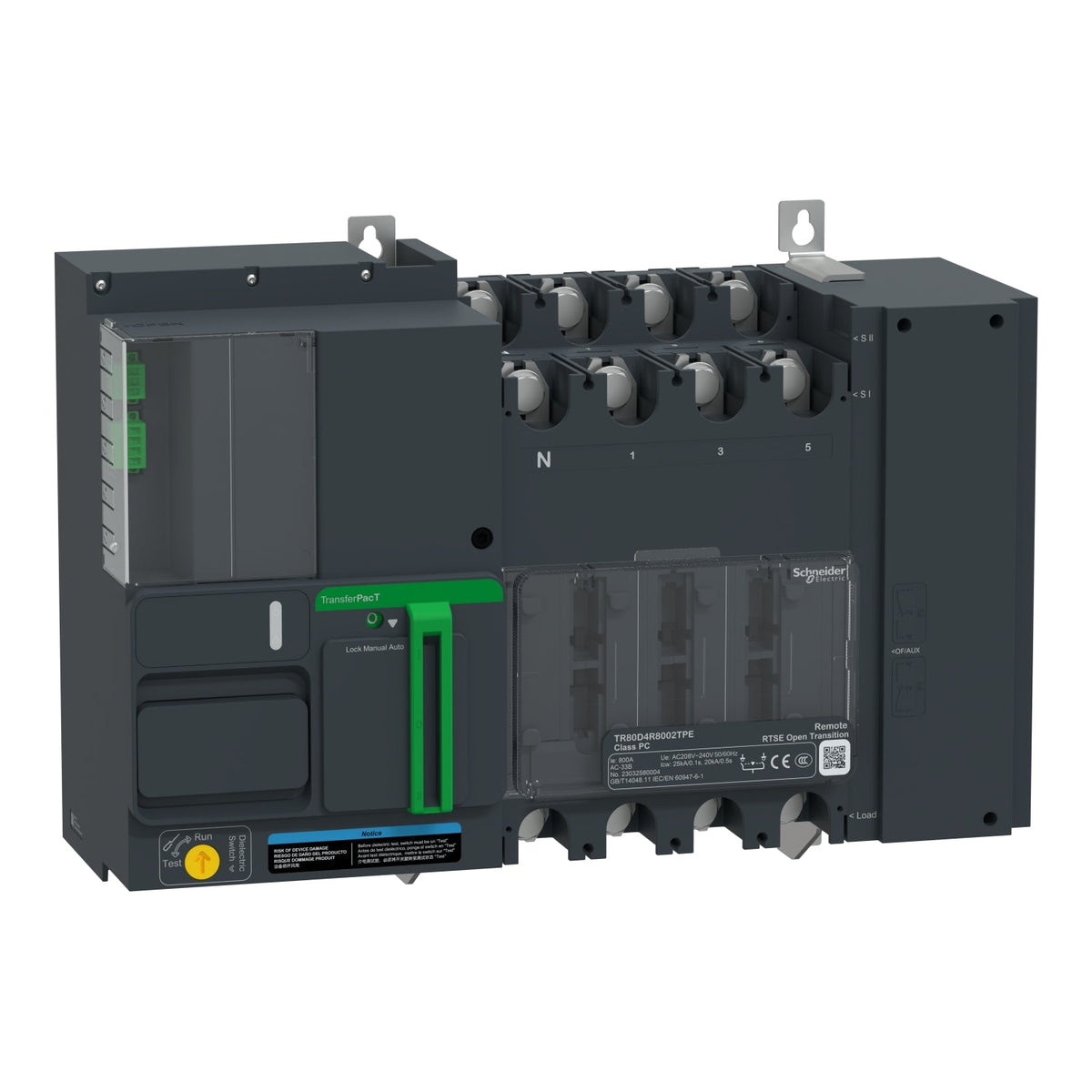

Schneider Electric TR80D4R8002TPE TransferPacT Remotely Operated 4P 800 A 230 V Automatic Transfer Switch

The Schneider Electric TR80D4R8002TPE is a 4-pole, 800 A TransferPacT automatic transfer switch built on the 800 A frame, rated for remote (motorised) operation at 230 V AC, 50/60 Hz. Driven by an external controller rather than a built-in display, it switches the load between two power sources, carrying a 40 kA making capacity and a 20 kA/0.5 s short-time withstand current for coordination with upstream protection.

Technical Specifications

Certifications & Standards

• CE
• CB
• CCC
• IEC 60947-6-1

Selection Notes

Because the TR80D4R8002TPE is the remote-operated (TR) version, it has no built-in TPC controller: the transfer logic and I/O live in an external controller, so it suits installations that already standardise on one controller platform across several switches. The front panel carries a rotary display module for local control and setting via a rotary/dip switch, so commissioning does not depend on the remote controller being present. The 4P version switches all three phases plus neutral, so it is the pick for installations that require neutral switching, such as TN-S systems with separate PE and N. The 800 A rating on the 800 A frame suits life-safety loads such as fire-fighting equipment, smoke extract fans, sprinkler pumps and emergency lighting, where the switch must carry the full load current continuously after a transfer. The 20 kA/0.5 s short-time withstand current sets how long it can carry a downstream fault before the upstream breaker must clear it, which is the figure to check against the protection device's tripping curve.
