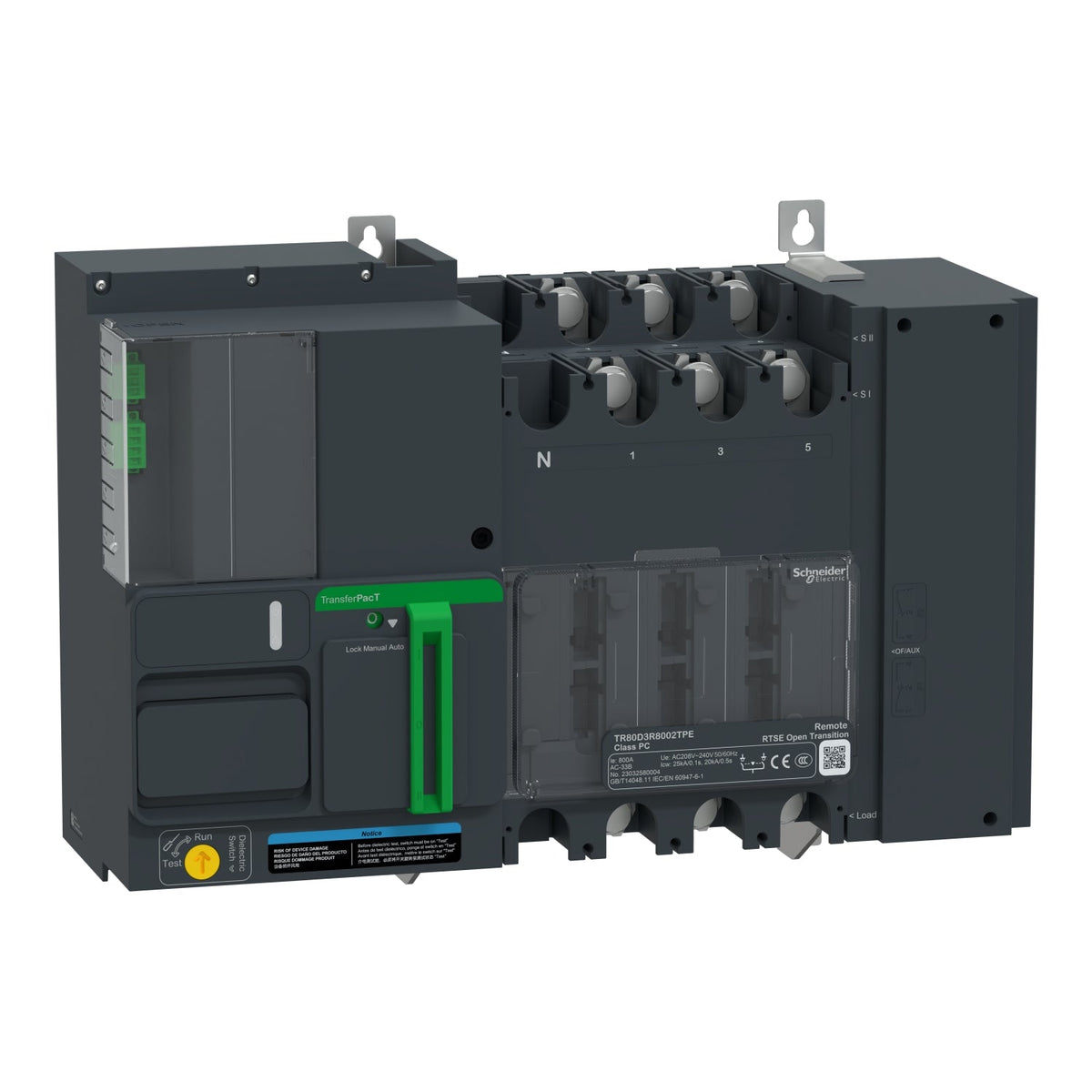

Schneider Electric TR80D3R8002TPE TransferPacT Remotely Operated 3P 800 A 230 V Automatic Transfer Switch

The Schneider Electric TR80D3R8002TPE is a 3-pole, 800 A TransferPacT automatic transfer switch built on the 800 A frame, rated for remote (motorised) operation at 230 V AC, 50/60 Hz. Driven by an external controller rather than a built-in display, it switches the load between two power sources, carrying a 40 kA making capacity and a 20 kA/0.5 s short-time withstand current for coordination with upstream protection.

Technical Specifications

Certifications & Standards

• CE
• CB
• CCC
• IEC 60947-6-1

Selection Notes

Because the TR80D3R8002TPE is the remote-operated (TR) version, it has no built-in TPC controller: the transfer logic and I/O live in an external controller, so it suits installations that already standardise on one controller platform across several switches. The front panel carries a rotary display module for local control and setting via a rotary/dip switch, so commissioning does not depend on the remote controller being present. The 3P version switches the three phase conductors, so it is the lower-cost choice for 3-wire distribution. The 800 A rating on the 800 A frame suits life-safety loads such as fire-fighting equipment, smoke extract fans, sprinkler pumps and emergency lighting, where the switch must carry the full load current continuously after a transfer. The 20 kA/0.5 s short-time withstand current sets how long it can carry a downstream fault before the upstream breaker must clear it, which is the figure to check against the protection device's tripping curve.
