Schneider Electric TPSAUX72 TransferPacT Auxiliary Contact OFF Frame 800-1600 A Transfer Switch Accessory

% $-64.93

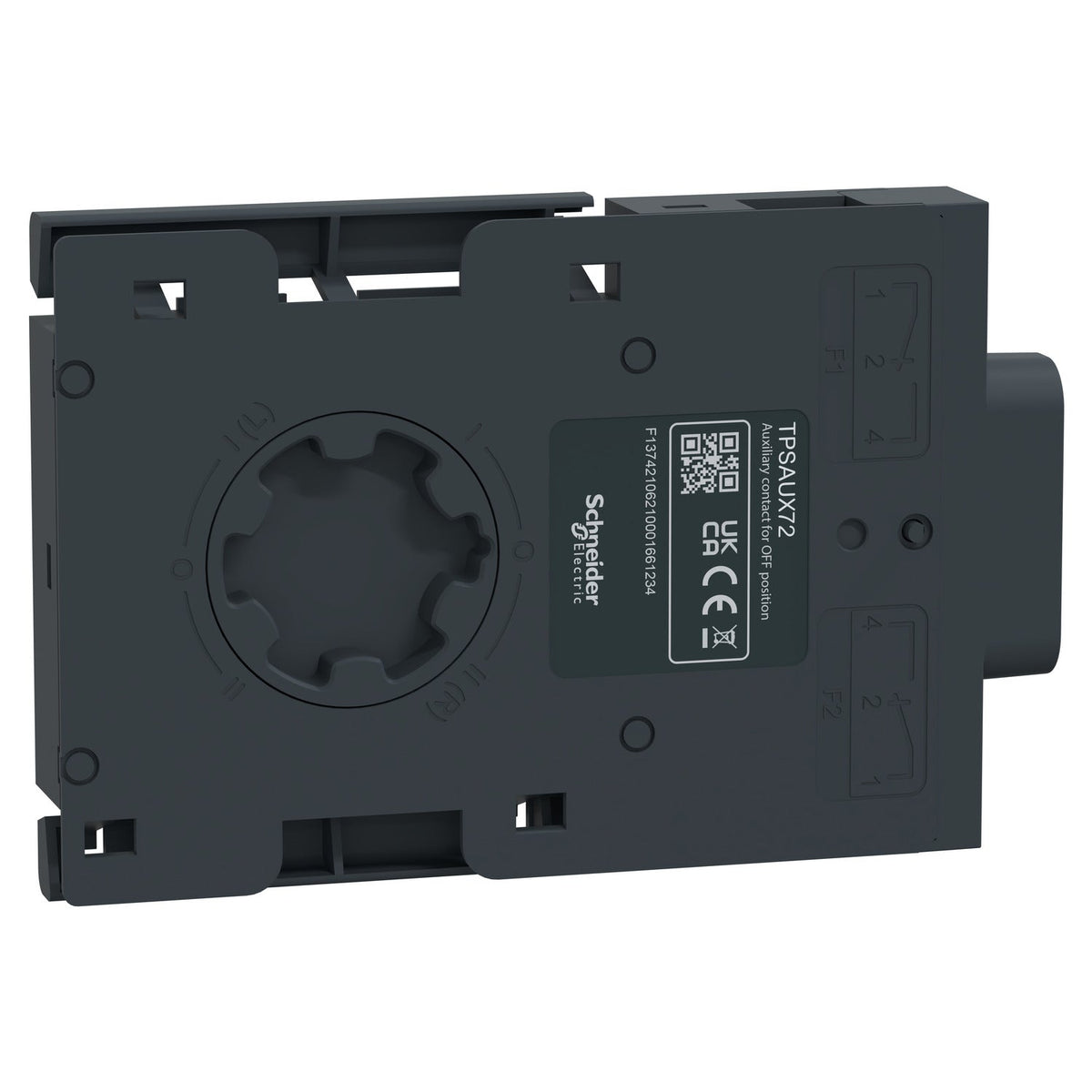

Schneider Electric TPSAUX72 TransferPacT Transfer Switch Accessory
Schneider Electric TPSAUX72 TransferPacT Transfer Switch Accessory

Schneider Electric TPSAUX72 TransferPacT Auxiliary Contact OFF Frame 800-1600 A Transfer Switch Accessory

Brand: Schneider Electric
Reference No: TPSAUX72
Catalog No: TPSAUX72
Series: TransferPacT
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$64.93

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The TPSAUX72 is a Schneider Electric TransferPacT auxiliary contact module for the frame 800-1600 A TA1A switch, clipping on at a side angle and signalling the off position through a 2 NO + 2 NC contact set wired on spring terminals, rated for a 100 mA minimum load at 24 V DC.

Technical Specifications

Reference TPSAUX72
Brand Schneider Electric
Range TransferPacT
Product type Auxiliary contact module
Device application Signalling
Auxiliary contact composition 2 NO + 2 NC
Signalling function Switch position indication (off position)
Auxiliary connection terminal Spring terminal, 0.5...1.5 mm squared (20-16 AWG)
Mounting mode Clip-on
[Ith] conventional free air thermal current 5 A
Minimum load 100 mA at 24 V DC
Tightening torque 0.6 N.m +/- 0.1 N.m
Product compatibility TA1A

Selection Notes

The TPSAUX72 is the TA1A-frame counterpart of the TPSAUX44, giving the off-position signal on the 800-1600 A frame where the TPSAUX44 covers the smaller 250/630 A frames.

Technical Details

Short Description
The TPSAUX72 is a Schneider Electric TransferPacT auxiliary contact module for the frame 800-1600 A TA1A switch, clipping on at a side angle and signa
Catalog No
TPSAUX72
Delivery Date (Days)
30 days
Model Number
TransferPacT
Tariff Code
853890
