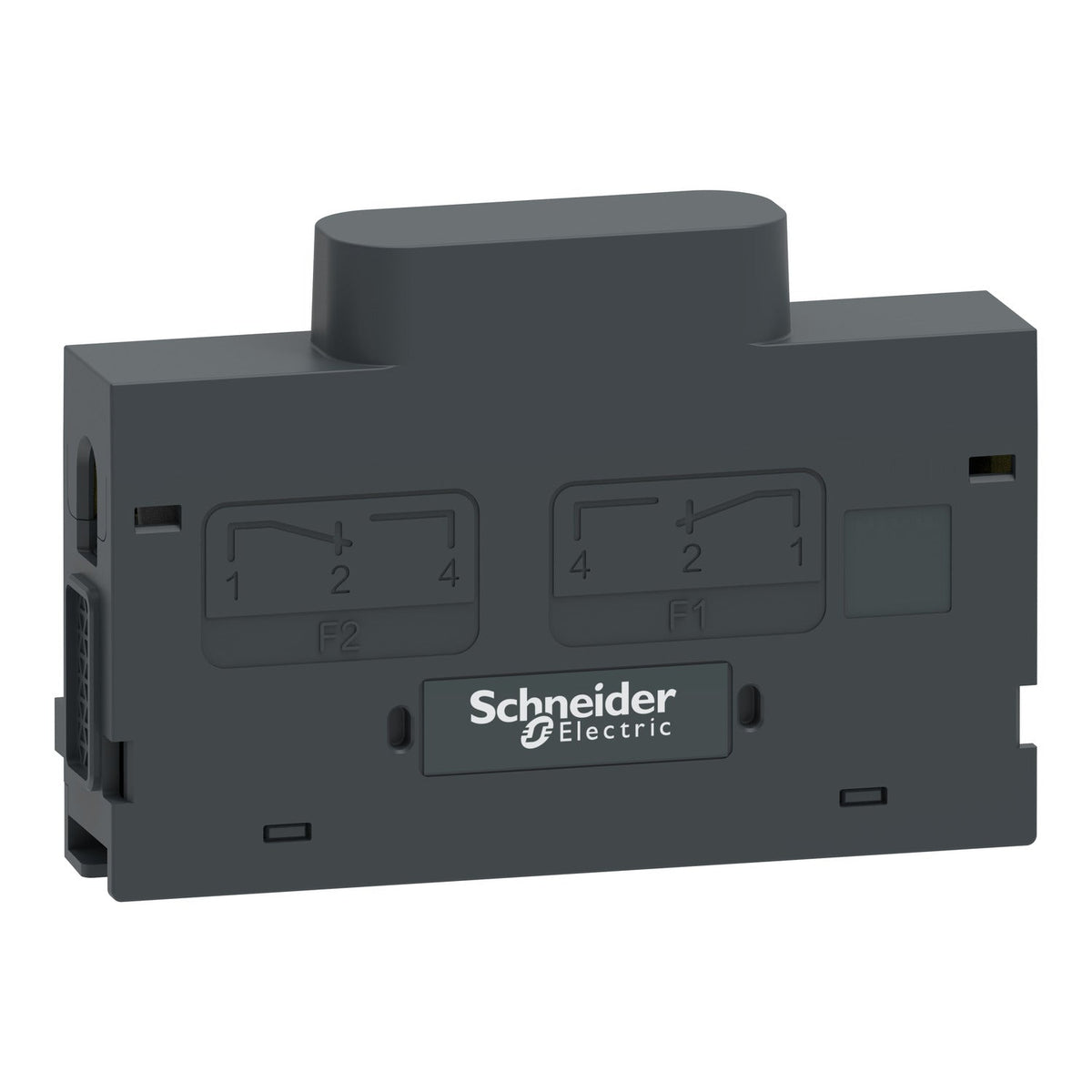

Schneider Electric TPSAUX33 TransferPacT Auxiliary Contact OFF Position Transfer Switch Accessory

% $-37.20
Schneider Electric TPSAUX33 TransferPacT Transfer Switch Accessory
Schneider Electric TPSAUX33 TransferPacT Transfer Switch Accessory

Schneider Electric TPSAUX33 TransferPacT Auxiliary Contact OFF Position Transfer Switch Accessory

Brand: Schneider Electric
Reference No: TPSAUX33
Catalog No: TPSAUX33
Series: TransferPacT
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$37.20

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The TPSAUX33 is a Schneider Electric TransferPacT auxiliary contact module that clips on beside the transfer switch and signals when the switch is mechanically in the off position, through a 2 NO + 2 NC contact set rated 2 A at 250 V AC, wired with 0.75-2.5 mm squared cable on a PZ2 screwdriver terminal.

Technical Specifications

Reference TPSAUX33
Brand Schneider Electric
Range TransferPacT
Product type Auxiliary contact module
Device application Signalling
Auxiliary contact composition 2 NO + 2 NC
Signalling function Switch position indication (off position)
Auxiliary connection terminal Screw clamp terminal
Mounting mode Clip-on
Mounting position Right-angled, mounted beside the switch
Tightening torque 0.6 N.m +/- 0.1 N.m
IP degree of protection IP20
Dimensions (W x H x D) 17.5 x 90 x 49.5 mm
Net weight 60 g

Selection Notes

Fit the TPSAUX33 where a remote indicator or interlock needs to know the switch sits in the off position specifically, as distinct from the source I/source II signal the TPSAUX32 provides.

Technical Details

Short Description
The TPSAUX33 is a Schneider Electric TransferPacT auxiliary contact module that clips on beside the transfer switch and signals when the switch is mec
Catalog No
TPSAUX33
Delivery Date (Days)
30 days
Model Number
TransferPacT
Tariff Code
853890
