Schneider Electric TPCDIO14 TransferPacT Fire Protection Dry Contact Input Module Transfer Switch Accessory

% $-73.47

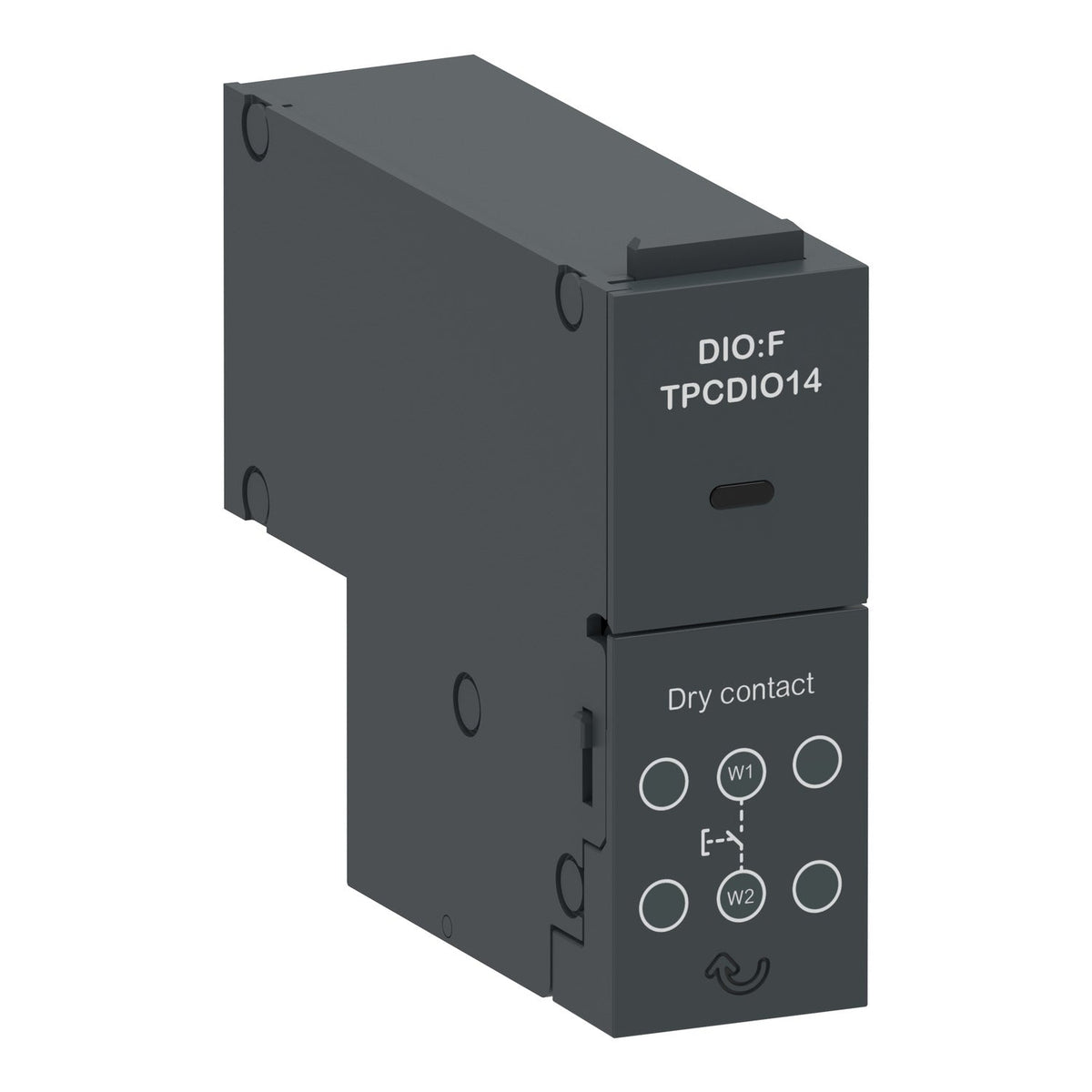

Schneider Electric TPCDIO14 TransferPacT Transfer Switch Accessory
Schneider Electric TPCDIO14 TransferPacT Transfer Switch Accessory

Schneider Electric TPCDIO14 TransferPacT Fire Protection Dry Contact Input Module Transfer Switch Accessory

Brand: Schneider Electric
Reference No: TPCDIO14
Catalog No: TPCDIO14
Series: TransferPacT
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$73.47

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The TPCDIO14 is a Schneider Electric TransferPacT plug-in I/O module that reads a passive, unpowered dry contact for fire protection instead of a voltage-driven signal. Closing the dry contact from the fire alarm system drives the transfer switch to the off position, suited to fire panels that supply a relay contact rather than a DC or AC voltage.

Technical Specifications

Reference TPCDIO14
Brand Schneider Electric
Range TransferPacT
Product type I/O module
Device application Signalling
Auxiliary contact composition 1 NO
Signalling function Fire protection, transfer to off position (dry contact)
Auxiliary connection terminal Screw clamp terminal, 0.05...2.6 mm squared
Mounting mode Plug-in
Mounting position Left-bottom
Minimum input current 5 mA
[Ui] rated insulation voltage 30 V DC
Tightening torque 0.6 N.m +/- 0.1 N.m
Dimensions (W x H x D) 20 x 56.5 x 69 mm
IP degree of protection IP20

Technical Details

Short Description
The TPCDIO14 is a Schneider Electric TransferPacT plug-in I/O module that reads a passive, unpowered dry contact for fire protection instead of a volt
Catalog No
TPCDIO14
Delivery Date (Days)
30 days
Model Number
TransferPacT
Tariff Code
853890
