Schneider Electric TPCDIO10 TransferPacT Fire Protection 24V DC Pulse Input Module Transfer Switch Accessory

% $-73.47

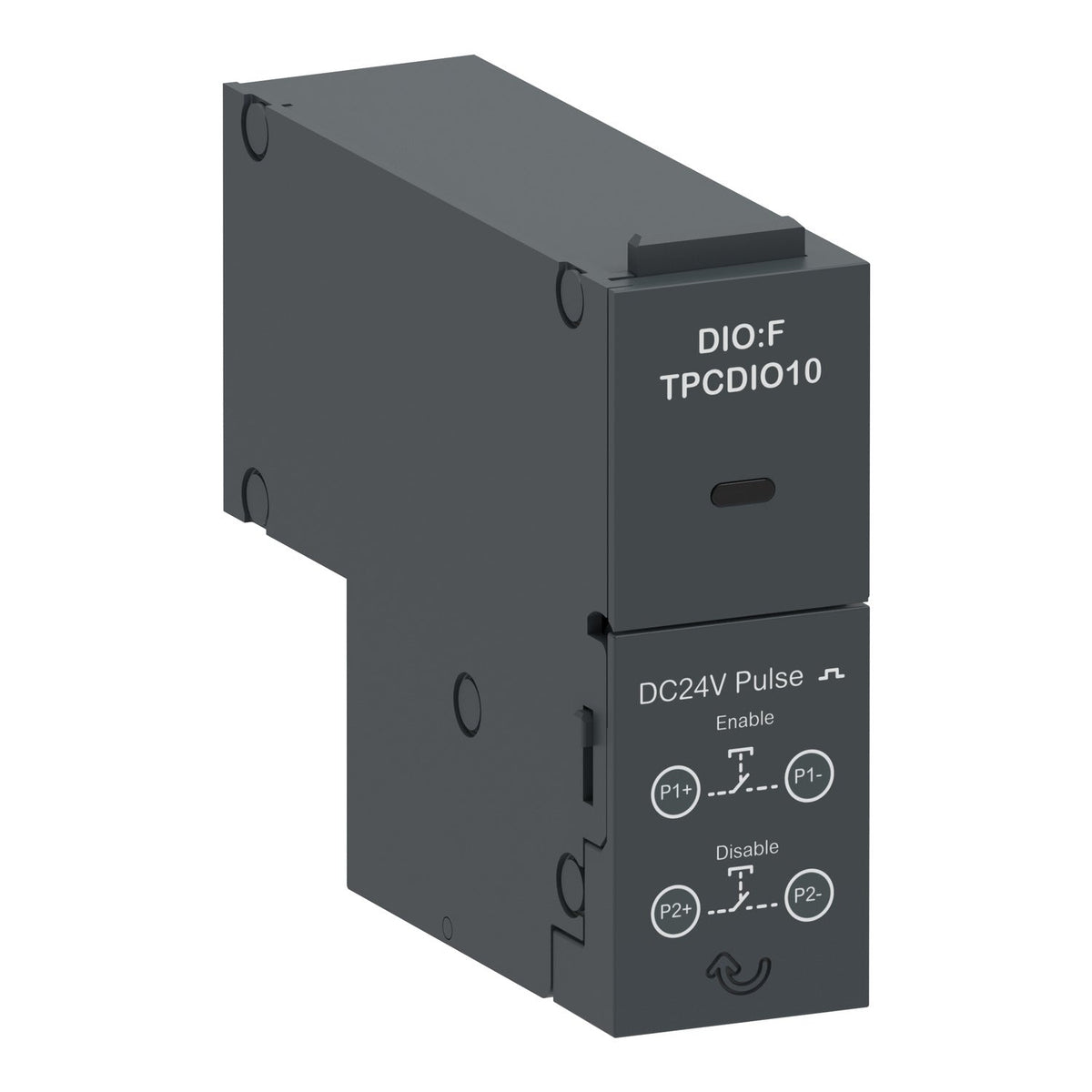

Schneider Electric TPCDIO10 TransferPacT Transfer Switch Accessory
Schneider Electric TPCDIO10 TransferPacT Transfer Switch Accessory

Schneider Electric TPCDIO10 TransferPacT Fire Protection 24V DC Pulse Input Module Transfer Switch Accessory

Brand: Schneider Electric
Reference No: TPCDIO10
Catalog No: TPCDIO10
Series: TransferPacT
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$73.47

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The TPCDIO10 is a Schneider Electric TransferPacT plug-in I/O module that accepts a 24 V DC pulse fire-protection input. On receiving the pulse from the fire alarm system, it drives the transfer switch to the off position, isolating the load path during a fire emergency while keeping the switch mechanism intact for continuity once the alarm clears.

Technical Specifications

Reference TPCDIO10
Brand Schneider Electric
Range TransferPacT
Product type I/O module
Device application Signalling
Auxiliary contact composition 2 NO
Signalling function Fire protection, transfer to off position (24 V DC pulse)
Auxiliary connection terminal Screw clamp terminal, 0.05...2.6 mm squared
Mounting mode Plug-in
Mounting position Left-bottom
Maximum input current 10 mA at 24 V DC +/- 20%
[Ui] rated insulation voltage 30 V DC
Dimensions (W x H x D) 20 x 56.5 x 69 mm
Net weight 40 g
IP degree of protection IP20

Selection Notes

Choose the TPCDIO10 when the fire alarm panel's output is a short pulse rather than a held signal, so the module latches the off command from that single pulse instead of needing the fire panel to keep a 24 V DC line energised, as the TPCDIO11 constant-signal variant does.

Technical Details

Short Description
The TPCDIO10 is a Schneider Electric TransferPacT plug-in I/O module that accepts a 24 V DC pulse fire-protection input. On receiving the pulse from t
Catalog No
TPCDIO10
Delivery Date (Days)
30 days
Model Number
TransferPacT
Tariff Code
853890
