Schneider Electric TPCDIO05 TransferPacT Load Shedding Output Module Transfer Switch Accessory

% $-73.47

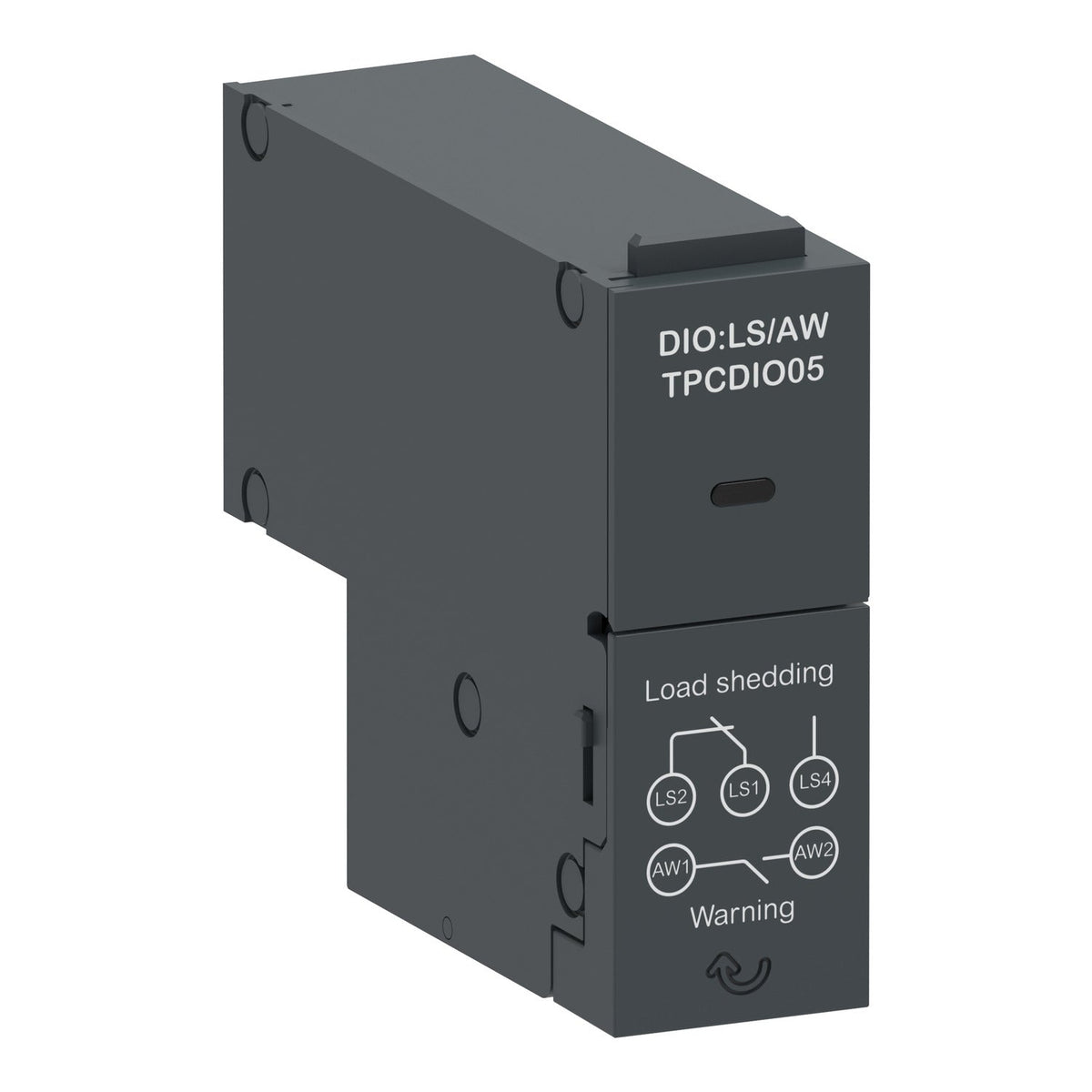

Schneider Electric TPCDIO05 TransferPacT Transfer Switch Accessory
Schneider Electric TPCDIO05 TransferPacT Transfer Switch Accessory

Schneider Electric TPCDIO05 TransferPacT Load Shedding Output Module Transfer Switch Accessory

Brand: Schneider Electric
Reference No: TPCDIO05
Catalog No: TPCDIO05
Series: TransferPacT
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$73.47

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The TPCDIO05 is a Schneider Electric TransferPacT plug-in I/O module that outputs a load-shedding signal and a status dry contact, rated 5 A at 250 V AC or 30 V DC. The load-shedding contact drops non-critical loads when the switch runs on the alternate source, and the status contact activates whenever the switch is off auto mode or both sources are lost.

Technical Specifications

Reference TPCDIO05
Brand Schneider Electric
Range TransferPacT
Product type I/O module
Device application Signalling
Auxiliary contact composition 2 NO + 1 NC
Signalling function Load-shedding indication, output status
Auxiliary connection terminal Screw clamp terminal, 0.05...2.6 mm squared
Mounting mode Plug-in
Mounting position Left-bottom
[Ui] rated insulation voltage 300 V AC
Dimensions (W x H x D) 20 x 56.5 x 69 mm
Net weight 40 g
IP degree of protection IP20

Selection Notes

Wire the load-shedding output to a shedding contactor on non-essential circuits so the generator or alternate source is not overloaded while supplying the panel, and use the status output to flag loss-of-auto or dual-source-loss conditions to a remote annunciator.

Technical Details

Short Description
The TPCDIO05 is a Schneider Electric TransferPacT plug-in I/O module that outputs a load-shedding signal and a status dry contact, rated 5 A at 250 V
Catalog No
TPCDIO05
Delivery Date (Days)
30 days
Model Number
TransferPacT
Tariff Code
853890
