Schneider Electric TMSCO1 Modicon M262 CANopen Smart Communication Module PLC Communication Module

% $-344.82

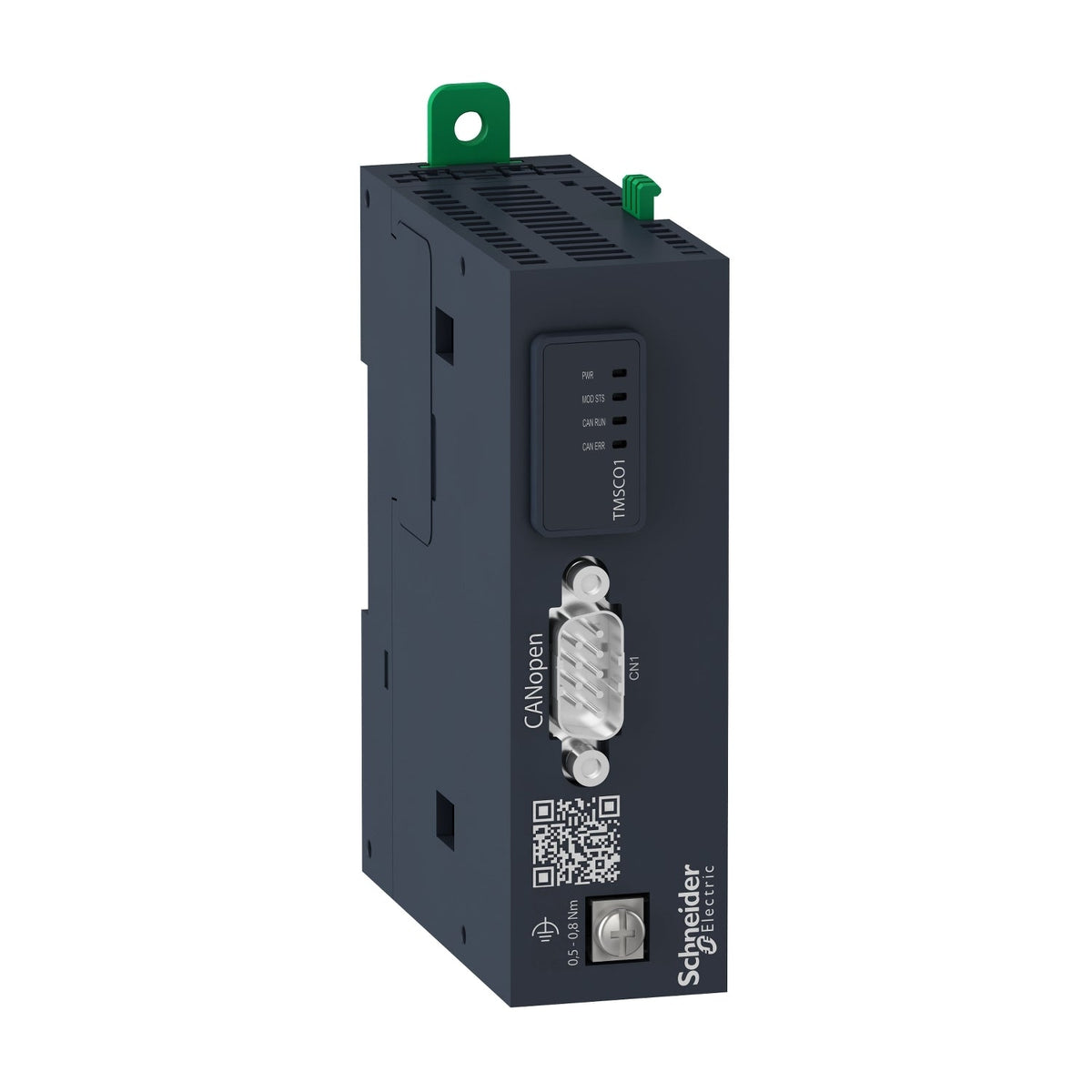

Schneider Electric TMSCO1 Modicon M262 CANopen smart communication module
Schneider Electric TMSCO1 Modicon M262 CANopen smart communication module

Schneider Electric TMSCO1 Modicon M262 CANopen Smart Communication Module PLC Communication Module

Brand: Schneider Electric
Reference No: TMSCO1
Catalog No: TMSCO1
Series: Modicon M262
Tariff Code (HS): 851762
Communication: CANopen
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$344.82

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TMSCO1 is a Modicon M262 smart communication module that adds one CANopen master port to M262 logic/motion controllers. It supports up to 63 slave nodes over a link configurable between 20 kbps and 1 Mbit/s, with power drawn from the controller's communication bus.

Technical Specifications

Reference TMSCO1
Brand Schneider Electric
Range Modicon M262
Product Type Smart communication module
Range Compatibility Modicon M262
Communication Port Protocol CANopen
Connector 1 SUB-D9 port
Services Up to 63 slave nodes
Current Consumption 50 mA at 24 V
Modules per Controller 1 maximum
Local Signalling LED for PWR, MOD STS, CAN RUN, CAN ERR
Mounting 35 mm DIN rail (TH35-15 / TH35-7.5) or panel with fixing kit
Dimensions (W x H x D) 30 x 100 x 88.3 mm
IP Degree of Protection IP20
Pollution Degree 2
Ambient Air Temperature (Operation) -20 to 60 degC horizontal / -20 to 50 degC vertical
Ambient Air Temperature (Storage) -40 to 85 degC
Operating Altitude 0-2000 m
Country of Origin Indonesia

Certifications & Standards

  • CE
  • cULus
  • RCM
  • Achilles
  • UL 61010-1
  • UL 61010-2-201
  • CSA C22.2 No 61010-1
  • CSA C22.2 No 61010-2-201
  • CSA C22.2 No 213
  • ANSI/ISA 12-12-01
  • IEC 61131-2

Selection Notes

Add the TMSCO1 when the M262 application needs a CANopen master link to drive controllers; for Ethernet-based IIoT connectivity on the same controller family, use the TMSES4 module instead.

Technical Details

Short Description
The Schneider Electric TMSCO1 is a Modicon M262 smart communication module that adds one CANopen master port to M262 logic/motion controllers. It supp
Mounting Type
35 mm DIN rail
Protection Type
IP20
Catalog No
TMSCO1
Delivery Date (Days)
30 days
Model Number
TMSCO1
Tariff Code
851762

Downloads
