Schneider Electric TMCR2AM3 Modicon M200 2 Analog Inputs / 1 Analog Output Cartridge PLC I/O Module

% $-267.34

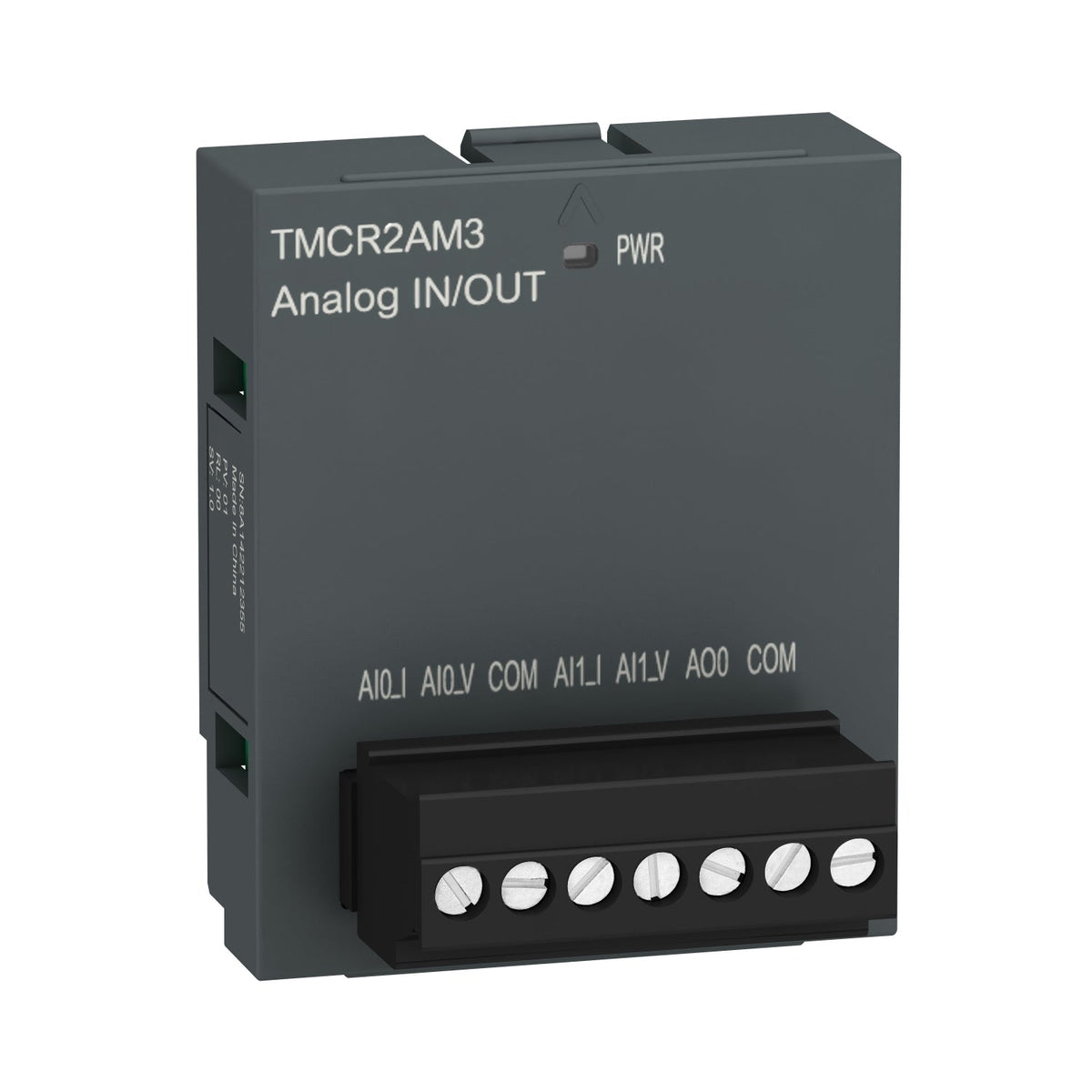

Schneider Electric TMCR2AM3 Easy Modicon M200 Analog I/O Cartridge, 2AI/1AO
Schneider Electric TMCR2AM3 Easy Modicon M200 Analog I/O Cartridge, 2AI/1AO

Schneider Electric TMCR2AM3 Modicon M200 2 Analog Inputs / 1 Analog Output Cartridge PLC I/O Module

Brand: Schneider Electric
Reference No: TMCR2AM3
Catalog No: TMCR2AM3
Series: Easy Modicon M200
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$267.34

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TMCR2AM3 is an Easy Modicon M200 cartridge combining 2 analog inputs and 1 analog output, each configurable for 0/4-20 mA current or 0-5/0-10 V voltage signals, at 16-bit resolution. It connects through a 7-point screw terminal block at 3.5 mm pitch, weighs 0.024 kg, and holds accuracy within plus or minus 1 percent of full scale at 55 degrees C.

Technical Specifications

Reference TMCR2AM3
Brand Schneider Electric
Range Easy Modicon M200
Product Type Analogue I/O cartridge
Product Compatibility Easy Modicon M200
Analogue Input Number 2
Analogue Input Type Current 0/4-20 mA; Voltage 0-5 V / 0-10 V
Analogue Input Resolution 16-bit
Analogue Output Number 1
Analogue Output Type Current 0/4-20 mA; Voltage 0-5 V / 0-10 V
Analogue Output Resolution 16-bit
Load Impedance 500 ohms maximum (current); 2 kOhm minimum (voltage)
Absolute Accuracy Error plus or minus 1% FS at 55 degrees C
Conversion Time 2 ms
Electrical Connection 1 screw terminal block, 7 points, 3.5 mm pitch
Maximum Cable Distance 30 m (twisted shielded pair)
Dimensions (W x D x H) 35 x 15 x 41 mm
Net Weight 0.024 kg

Certifications & Standards

  • CE

Selection Notes

Choose the TMCR2AM3 when a single M200 expansion slot needs to handle both an analog input and an analog output together rather than two separate single-function cartridges; the shared 16-bit resolution on input and output keeps signal conditioning consistent across the loop.

Technical Details

Short Description
Easy Modicon M200 cartridge, 2 analog inputs, 1 analog output, 16-bit resolution.
Mounting Type
Plug-in cartridge, Easy Modicon M200 slot
Catalog No
TMCR2AM3
Delivery Date (Days)
30 days
Model Number
TMCR2AM3
Tariff Code
853710
