Schneider Electric TMCR2AI2 Modicon M200 2 Analog Current/Voltage Inputs Cartridge PLC I/O Module

% $-95.34

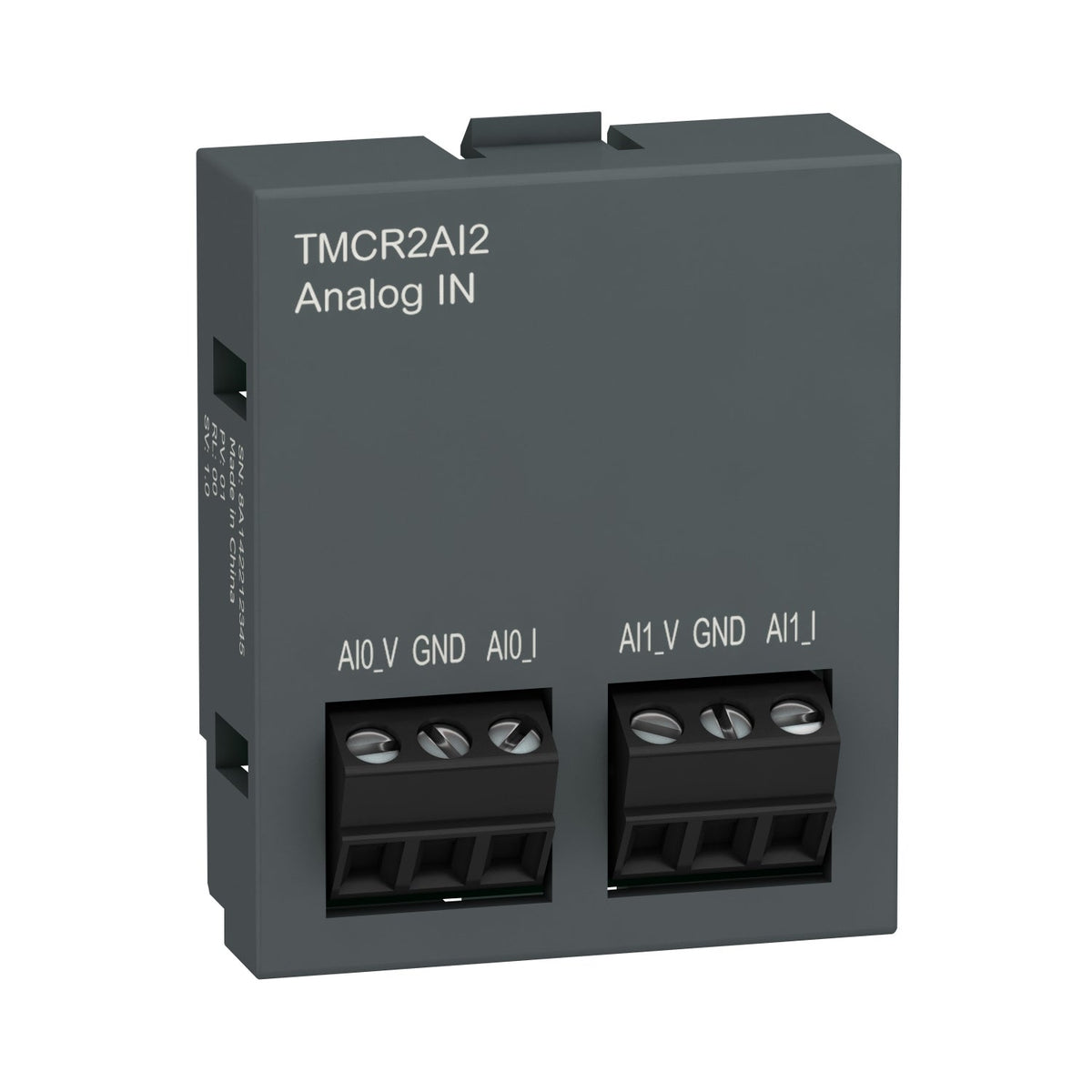

Schneider Electric TMCR2AI2 Easy Modicon M200 Analog Input Cartridge, 2 Channels
Schneider Electric TMCR2AI2 Easy Modicon M200 Analog Input Cartridge, 2 Channels

Schneider Electric TMCR2AI2 Modicon M200 2 Analog Current/Voltage Inputs Cartridge PLC I/O Module

Brand: Schneider Electric
Reference No: TMCR2AI2
Catalog No: TMCR2AI2
Series: Easy Modicon M200
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$95.34

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TMCR2AI2 is an Easy Modicon M200 cartridge that adds 2 analog inputs, configurable for 0/4-20 mA current or 0-10 V voltage signals, at 12-bit resolution. It connects through two screw terminal blocks at 3.81 mm pitch, weighs 0.012 kg, and holds accuracy within plus or minus 0.1 percent of full scale at 25 degrees C.

Technical Specifications

Reference TMCR2AI2
Brand Schneider Electric
Range Easy Modicon M200
Product Type Analogue input cartridge
Product Compatibility Easy Modicon M200
Analogue Input Number 2
Analogue Input Type Current 0/4-20 mA; Voltage 0-10 V
Analogue Input Resolution 12-bit
Absolute Accuracy Error plus or minus 0.1% FS at 25 degrees C (plus or minus 1% FS overall)
Conversion Time 20 ms
Sampling Duration 10 ms
Input Impedance 250 ohms maximum (current); 1 megohm minimum (voltage)
Electrical Connection 2 screw terminal blocks, 3.81 mm pitch
Maximum Cable Distance 30 m (twisted shielded pair)
Insulation Non-insulated between analog input and internal logic
Dimensions (W x D x H) 35 x 15 x 41 mm
Net Weight 0.012 kg

Selection Notes

Choose the TMCR2AI2 for general-purpose 4-20 mA or 0-10 V process inputs on an Easy Modicon M200 base; its screw-terminal connection at 3.81 mm pitch suits panels wired with standard tools. Select a dedicated temperature-input cartridge in the same range instead when the field devices are thermocouples or RTDs.

Technical Details

Short Description
Easy Modicon M200 cartridge, 2 analog current/voltage inputs, 12-bit resolution.
Mounting Type
Plug-in cartridge, Easy Modicon M200 slot
Catalog No
TMCR2AI2
Delivery Date (Days)
30 days
Model Number
TMCR2AI2
Tariff Code
853710
