Schneider Electric TMC4TI2 Modicon M241 2 Temperature Inputs Cartridge PLC I/O Module

% $-195.05

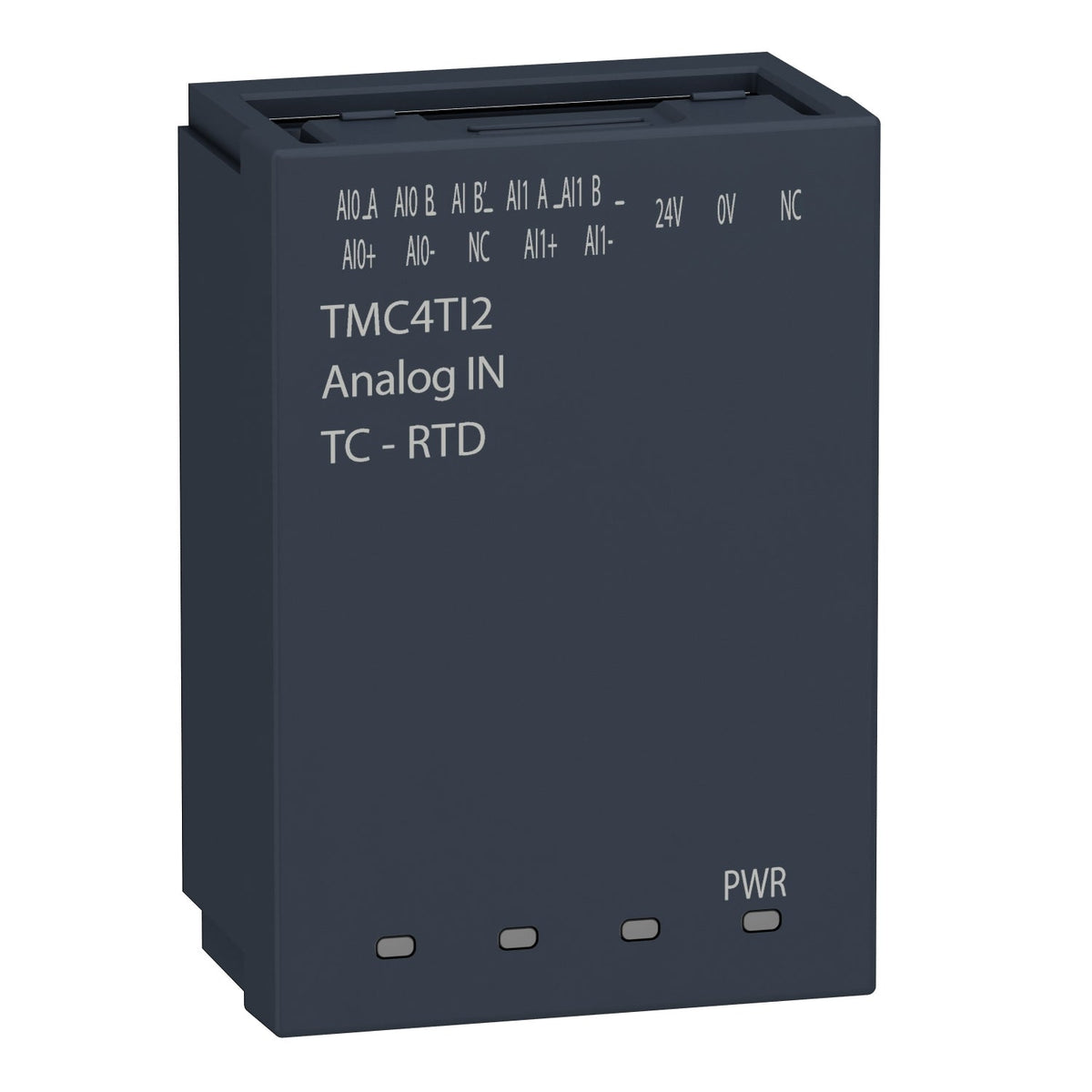

Schneider Electric TMC4TI2 Modicon M241 Temperature Input Cartridge, 2 Channels
Schneider Electric TMC4TI2 Modicon M241 Temperature Input Cartridge, 2 Channels

Schneider Electric TMC4TI2 Modicon M241 2 Temperature Inputs Cartridge PLC I/O Module

Brand: Schneider Electric
Reference No: TMC4TI2
Catalog No: TMC4TI2
Series: Modicon M241
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$195.05

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TMC4TI2 is a Modicon M241 analog input cartridge that adds 2 temperature inputs to an M241C logic controller, supporting Pt100/Pt1000, Ni100/Ni1000 probes and J/K/R/S/B/T/N/E thermocouples at 14-bit resolution. It connects through a single spring terminal block, is insulated from internal logic at 500 V DC, and weighs 0.055 kg.

Technical Specifications

Reference TMC4TI2
GTIN 3606480649202
Brand Schneider Electric
Range Modicon M241
Product Type Analogue input cartridge
Product Compatibility Modicon M241C
Analogue Input Number 2
Analogue Input Type Thermocouple J/K/R/S/B/T/N/E; Pt100/Pt1000; Ni100/Ni1000
Analogue Input Resolution 14-bit
LSB Value 0.1 degrees C
Sampling Duration 100 ms
Absolute Accuracy Error plus or minus 0.5% FS at 25 degrees C (RTD/probe); plus or minus 0.1-0.2% FS at 25 degrees C (thermocouple, type-dependent)
Input Impedance 1 megohm minimum
Electrical Connection 1 spring terminal block, 3.5 mm pitch
Maximum Cable Distance 30 m (twisted shielded pair)
Insulation Input-to-logic 500 V DC; non-insulated between inputs
Supply Voltage Limits 20.4...28.8 V
Dimensions (W x D x H) 34 x 21 x 50 mm
Net Weight 0.055 kg
Country of Origin Indonesia (ID)

Selection Notes

Choose the TMC4TI2 over a current/voltage input cartridge when the field sensors are RTDs or thermocouples rather than 4-20 mA/0-10 V transmitters; 14-bit resolution and a 0.1 degrees C LSB give fine temperature granularity directly at the cartridge, without a separate signal-conditioning module. Because the two inputs share no insulation between channels, keep both connected to sensors referenced to the same potential.

Technical Details

Short Description
Modicon M241 temperature input cartridge, 2 channels, thermocouple/RTD, 14-bit resolution.
Mounting Type
Plug-in cartridge, Modicon M241C slot
Catalog No
TMC4TI2
Delivery Date (Days)
30 days
Model Number
TMC4TI2
Tariff Code
853710
