Schneider Electric TMC4AQ2 Modicon M241 2 Analog Outputs Cartridge PLC I/O Module

% $-208.14

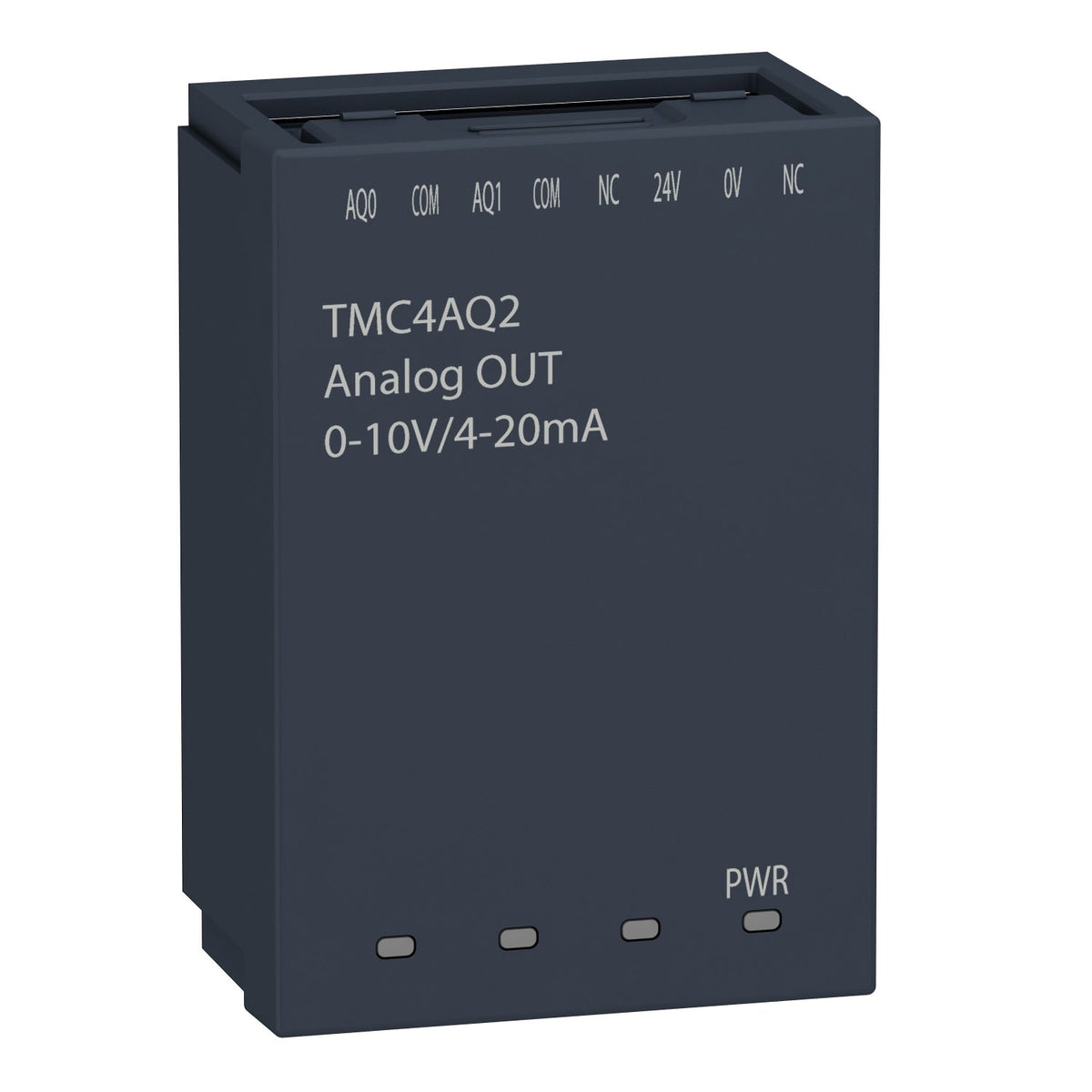

Schneider Electric TMC4AQ2 Modicon M241 analog output cartridge, 2 channels
Schneider Electric TMC4AQ2 Modicon M241 analog output cartridge, 2 channels

Schneider Electric TMC4AQ2 Modicon M241 2 Analog Outputs Cartridge PLC I/O Module

Brand: Schneider Electric
Reference No: TMC4AQ2
Catalog No: TMC4AQ2
Series: Modicon M241
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$208.14

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TMC4AQ2 is a Modicon M241 analog output cartridge that adds 2 current (4-20 mA) or voltage (0-10 V) outputs at 16-bit resolution to a Modicon M241C logic controller, connecting through a single spring terminal block with a 20.4-28.8 V supply range. Absolute accuracy is 0.2% of full scale at 25 degrees C, with a 10 ms conversion time and 10 ms stabilisation time per channel.

Technical Specifications

Reference TMC4AQ2
GTIN 3606480649172
Brand Schneider Electric
Range Modicon M241
Product Type Analogue output cartridge
Product Compatibility Modicon M241C
Analogue Output Number 2
Analogue Output Type Current 4-20 mA, Voltage 0-10 V
Analogue Output Resolution 16-bit
Load Type Resistive
Load Impedance 500 ohms max (current) / 2 kilohms min (voltage)
Conversion Time 10 ms + 1 controller cycle
Stabilisation Time 10 ms
Absolute Accuracy Error plus or minus 0.2% FS at 25 degrees C
Repeat Accuracy plus or minus 0.5% FS
Electrical Connection 1 spring terminal block, 3.5 mm pitch
Supply Voltage Limits 20.4...28.8 V
Local Signalling 1 LED (green) PWR
Insulation Output-to-logic 500 V DC, non-insulated between outputs
Dimensions (W x D x H) 34 x 21 x 50 mm
Net Weight 0.055 kg

Certifications & Standards

  • CE
  • IACS E10
  • RCM
  • CSA
  • cULus

Selection Notes

Use the TMC4AQ2 for 4-20 mA or 0-10 V control outputs on an M241C controller, such as a VFD speed reference. Both output types share the same 16-bit resolution, so the choice depends on which input the downstream device accepts, and its spring terminal wiring is faster to install than a screw-terminal cartridge.

Technical Details

Short Description
Modicon M241 analog output cartridge, 2 channels, current or voltage, 16-bit resolution.
Mounting Type
Plug-in cartridge, Modicon M241C slot
Catalog No
TMC4AQ2
Delivery Date (Days)
30 days
Model Number
TMC4AQ2
Tariff Code
853710
