Schneider Electric TMC4AI2 Modicon M241 2 Analog Inputs Cartridge PLC I/O Module

% $-170.12

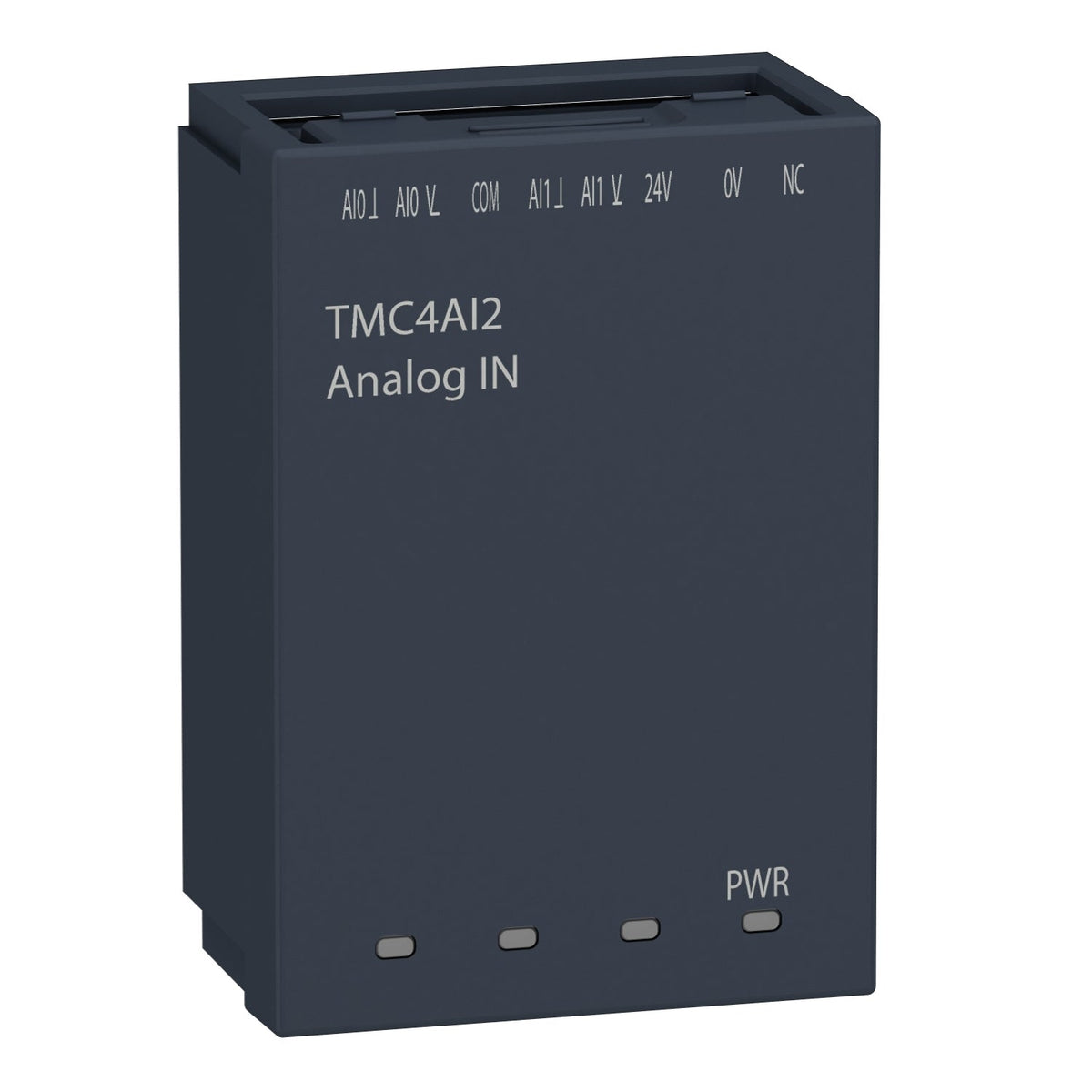

Schneider Electric TMC4AI2 Modicon M241 analog input cartridge, 2 channels
Schneider Electric TMC4AI2 Modicon M241 analog input cartridge, 2 channels

Schneider Electric TMC4AI2 Modicon M241 2 Analog Inputs Cartridge PLC I/O Module

Brand: Schneider Electric
Reference No: TMC4AI2
Catalog No: TMC4AI2
Series: Modicon M241
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$170.12

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TMC4AI2 is a Modicon M241 analog input cartridge that adds 2 current (0/4-20 mA) or voltage (0-10 V) inputs at 12-bit resolution to a Modicon M241C logic controller, connecting through a single spring terminal block with a 20.4-28.8 V supply range. Absolute accuracy is 0.2% of full scale at 25 degrees C, with a 10 ms sampling duration per channel.

Technical Specifications

Reference TMC4AI2
GTIN 3606480649165
Brand Schneider Electric
Range Modicon M241
Product Type Analogue input cartridge
Product Compatibility Modicon M241C
Analogue Input Number 2
Analogue Input Type Current 0/4-20 mA, Voltage 0-10 V
Analogue Input Resolution 12-bit
Absolute Accuracy Error plus or minus 0.2% FS at 25 degrees C
Repeat Accuracy plus or minus 0.2% FS
Sampling Duration 10 ms
Input Impedance 250 ohms max (current) / 1 megohm min (voltage)
Electrical Connection 1 spring terminal block, 3.5 mm pitch
Supply Voltage Limits 20.4...28.8 V
Local Signalling 1 LED (green) PWR
Maximum Cable Distance 30 m (twisted shielded pair)
Insulation Input-to-logic 500 V DC, non-insulated between inputs
Dimensions (W x D x H) 34 x 21 x 50 mm
Net Weight 0.055 kg

Selection Notes

Use the TMC4AI2 for general-purpose current or voltage process signals on an M241C controller; its spring terminal connection speeds up wiring compared with a screw-terminal cartridge. Pick a dedicated temperature-input cartridge in the same range when the field devices are thermocouples or RTDs instead of 4-20 mA or 0-10 V transmitters.

Technical Details

Short Description
Modicon M241 analog input cartridge, 2 channels, current or voltage, 12-bit resolution.
Mounting Type
Plug-in cartridge, Modicon M241C slot
Catalog No
TMC4AI2
Delivery Date (Days)
30 days
Model Number
TMC4AI2
Tariff Code
853710
