Schneider Electric TMC2AQ2V Modicon M221 2 Analog Voltage Outputs Cartridge PLC I/O Module

% $-119.65
Schneider Electric TMC2AQ2V Modicon M221 analog output cartridge, 2 voltage channels
Schneider Electric TMC2AQ2V Modicon M221 analog output cartridge, 2 voltage channels

Schneider Electric TMC2AQ2V Modicon M221 2 Analog Voltage Outputs Cartridge PLC I/O Module

Brand: Schneider Electric
Reference No: TMC2AQ2V
Catalog No: TMC2AQ2V
Series: Modicon M221
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$119.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

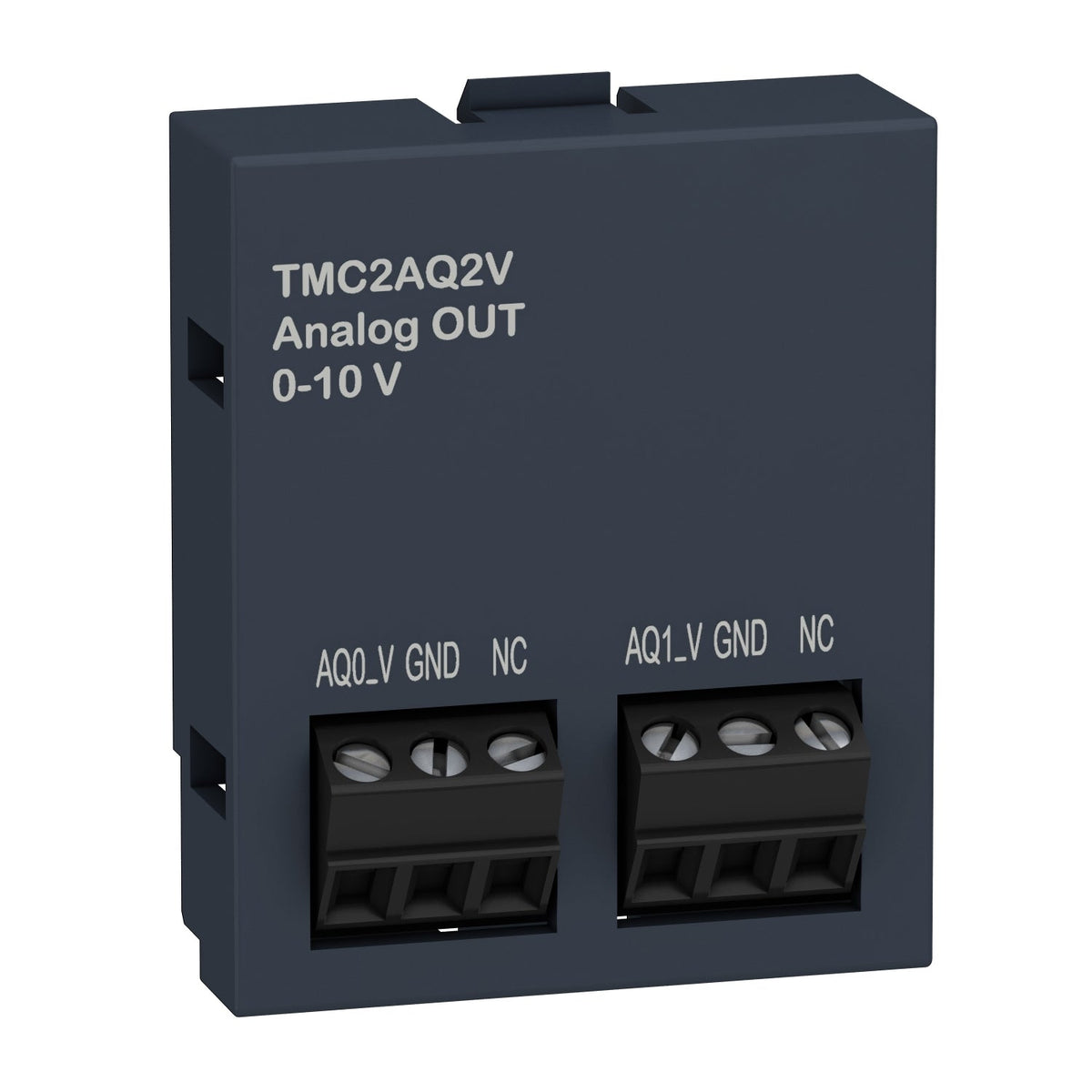

The Schneider Electric TMC2AQ2V is a Modicon M221 analog output cartridge that adds 2 voltage outputs (0-10 V) at 12-bit resolution to a Modicon M221C logic controller, driving loads of 2 kilohms or more through 2 screw terminal blocks without external wiring. Absolute accuracy is 0.3% of full scale at 25 degrees C, with a 20 ms conversion time and 40 ms stabilisation time per channel.

Technical Specifications

Reference TMC2AQ2V
GTIN 3606480649103
Brand Schneider Electric
Range Modicon M221
Product Type Analogue output cartridge
Product Compatibility Modicon M221C
Analogue Output Number 2
Analogue Output Type Voltage 0-10 V
Analogue Output Resolution 12-bit
Load Type Resistive
Load Impedance 2 kilohms minimum
Conversion Time 20 ms
Stabilisation Time 40 ms
Absolute Accuracy Error plus or minus 1% FS / plus or minus 0.3% FS at 25 degrees C
Repeat Accuracy plus or minus 0.4% FS
Electrical Connection 2 screw terminal blocks, 3.81 mm pitch
Maximum Cable Distance 30 m (twisted shielded pair)
Insulation Non-insulated between analogue output and internal logic
Dimensions (W x D x H) 35 x 15 x 41 mm
Net Weight 0.015 kg

Selection Notes

Use the TMC2AQ2V for 0-10 V control signals into high-impedance inputs, such as VFD speed references or panel meters. A companion current-output cartridge in the same M221 range covers 4-20 mA signals instead, for receiving devices that need current rather than voltage.

Technical Details

Short Description
Modicon M221 analog output cartridge, 2 voltage outputs, 0-10V, 12-bit resolution.
Mounting Type
Plug-in cartridge, Modicon M221C slot
Catalog No
TMC2AQ2V
Delivery Date (Days)
30 days
Model Number
TMC2AQ2V
Tariff Code
853710
