Schneider Electric TM3SAC5R Modicon TM3 Safety TM3SAC Cat 3 PL d SILCL 2 Safety Relay

% $-358.94

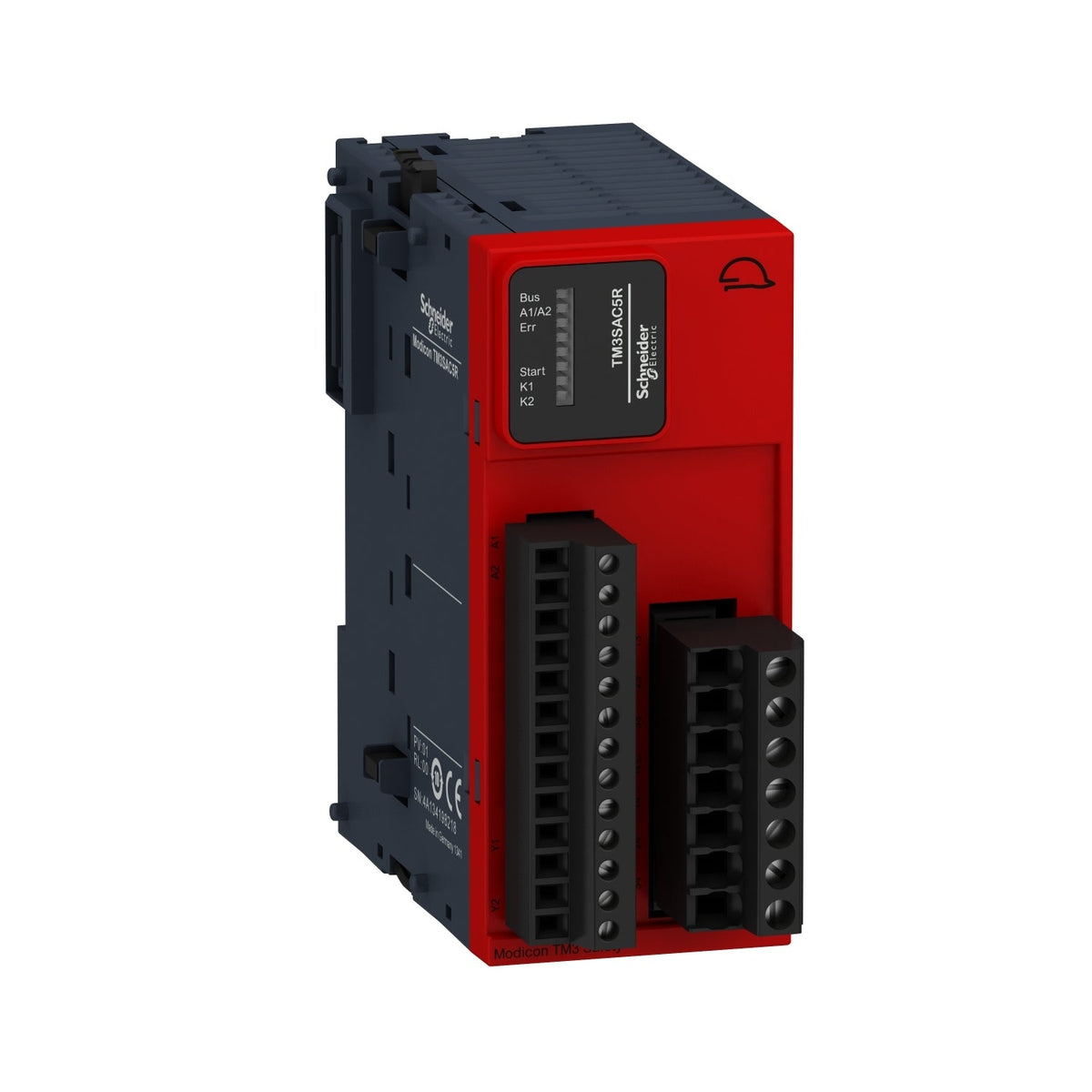

Schneider Electric TM3SAC5R Modicon TM3 Safety module, Cat 3 PL d SILCL 2
Schneider Electric TM3SAC5R Modicon TM3 Safety module, Cat 3 PL d SILCL 2

Schneider Electric TM3SAC5R Modicon TM3 Safety TM3SAC Cat 3 PL d SILCL 2 Safety Relay

Brand: Schneider Electric
Reference No: TM3SAC5R
Catalog No: TM3SAC5R
Series: Modicon TM3 Safety
Tariff Code (HS): 853641
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$358.94

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TM3SAC5R is a Modicon TM3 Safety expansion module (device short name TM3SAC) that adds one configurable safety function, emergency stop or movable-guard monitoring, to Modicon M221, M241 and M251 controllers, reaching PL d / Category 3 per ISO 13849-1 and SILCL 2 per IEC 62061 on a 24 V DC supply.

Technical Specifications

Reference TM3SAC5R
GTIN 3606485392974
Brand Schneider Electric
Range Modicon TM3 Safety
Device Short Name TM3SAC
Product Type Safety module
Safety Module Application Emergency stop and switch monitoring
Function of Module Emergency stop monitoring (1- or 2-channel wiring) or movable guard monitoring with 2 switches and automatic start
Safety Level PL d / Category 3 (ISO 13849-1), SILCL 2 (IEC 62061), SIL 2 (IEC 61508)
Diagnostic Coverage DC = 95%
PFHd 5E-9 /h at 1 operation/hour, DC-13 24V DC less than 4A
MTTFd 500 years at 1 operation/hour, DC-13 24V DC less than 4A
Rated Supply Voltage [Us] 24 V DC -15...+20%
Power Consumption 3.6 W at 24V DC
Output Type 3 NO relay, instantaneous opening, potential free
Breaking Capacity 4 A at 24V DC-13 / 360 VA holding AC-15 B300
Output Thermal Current 6 A per relay
Response Time on Input Open 40 ms maximum
Electrical Connection Screw terminal
Mounting TH35-7.5 / TH35-15 DIN rail, wall mount
Dimensions (W x D x H) 43.7 x 73 x 94 mm
Net Weight 0.19 kg
IP Degree of Protection IP20 (terminals)

Certifications & Standards

  • CE
  • TÜV
  • RCM
  • EAC
  • UL 61010-2-201
  • CSA 61010-2-201
  • IEC 60947-1
  • IEC 60947-5-1
  • IEC 60204-1
  • EN 1088/ISO 14119
  • ISO 13850

Selection Notes

Choose the TM3SAC5R for single-function emergency-stop or movable-guard monitoring on Modicon M221, M241 and M251 lines. The TM3SAFL5R in the same TM3 Safety range adds light-curtain and proximity-sensor functions at the same Cat 3 / PL d level, while the TM3SAF5R and TM3SAK6R step up to Cat 4 / PL e and SILCL 3 when a higher safety integrity level is required.

Technical Details

Short Description
Modicon TM3 Safety module, 1 function, Cat 3 PL d, SILCL 2, 24V DC, 3 NO relay outputs.
Mounting Type
TH35-7.5 / TH35-15 DIN rail, wall mount
Protection Type
IP20 (terminals)
Catalog No
TM3SAC5R
Delivery Date (Days)
30 days
Model Number
TM3SAC
Tariff Code
853641
