Schneider Electric TM3DQ8U Modicon TM3 8 Digital Outputs Transistor Sink PLC I/O Module

% $-119.65

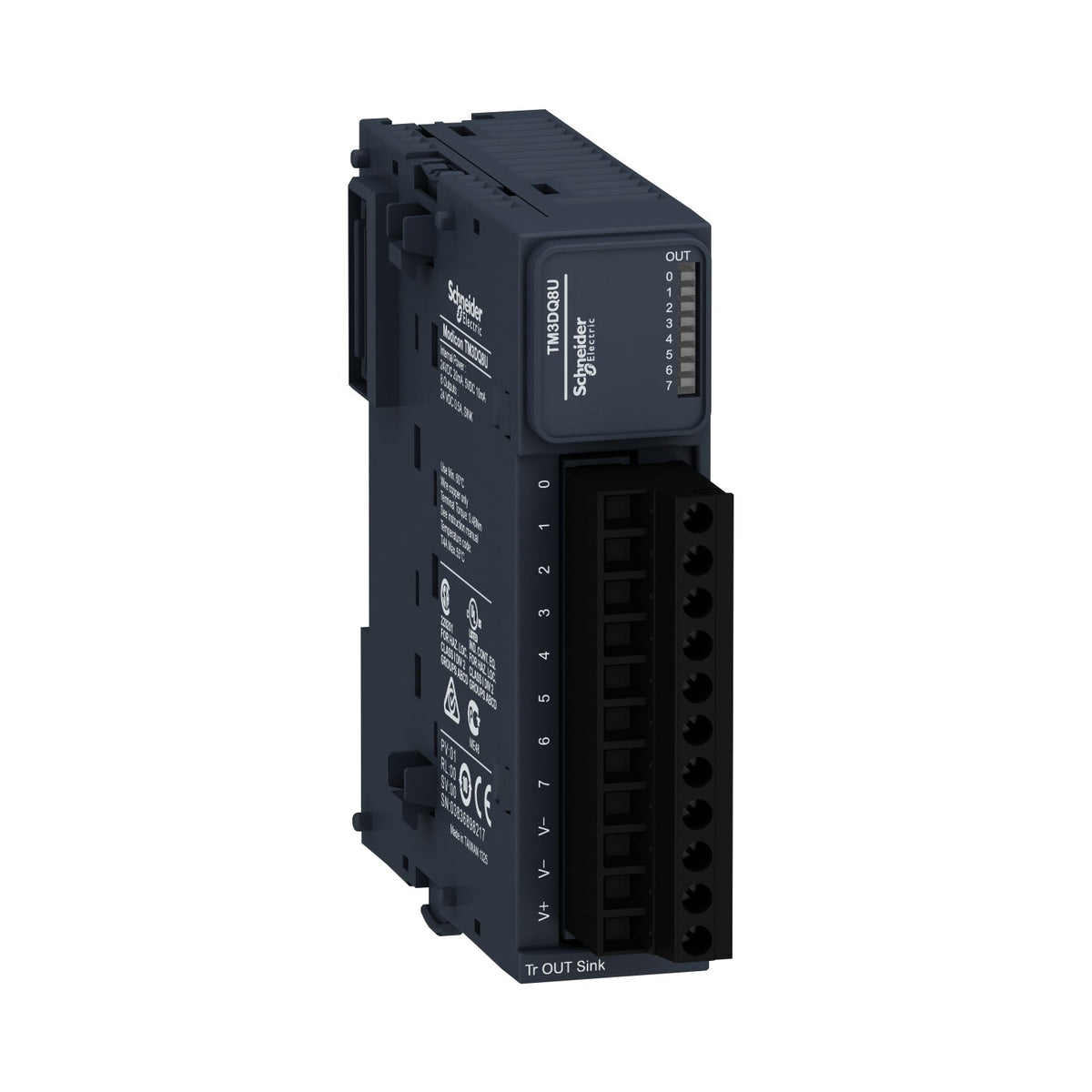

Schneider Electric TM3DQ8U Modicon TM3 discrete output module, 8 channels
Schneider Electric TM3DQ8U Modicon TM3 discrete output module, 8 channels

Schneider Electric TM3DQ8U Modicon TM3 8 Digital Outputs Transistor Sink PLC I/O Module

Brand: Schneider Electric
Reference No: TM3DQ8U
Catalog No: TM3DQ8U
Series: Modicon TM3
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$119.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TM3DQ8U is a Modicon TM3 expansion module that adds 8 transistor discrete outputs with negative (sink) logic and 24 V DC output voltage to Modicon M221, M241, M251 and M262 logic controllers. Each channel switches up to 50 mA with a response time of 450 microseconds and mounts via the TM3 bus connector.

Technical Specifications

Reference TM3DQ8U
GTIN 3606480611568
Brand Schneider Electric
Range Modicon TM3
Product Type Discrete output module
Range Compatibility Modicon M221, M241, M251, M262
Discrete Output Number 8
Discrete Output Logic Negative (sink)
Discrete Output Voltage 24 V DC
Discrete Output Current 50 mA per channel
Response Time 450 microseconds (turn on/off)
Maximum Leakage Current 0.1 mA
Maximum Voltage Drop less than 0.4 V
MTBF 170 years at 40 degrees C
Electrical Connection Removable screw terminal, 5.08 mm pitch
Isolation 500 V AC, output to bus
Current Consumption 20 mA at 5V DC / 10 mA at 24V DC (via bus)
Mounting TH35-15 / TH35-7.5 DIN rail, panel mount
Dimensions (W x D x H) 27.4 x 84.6 x 90 mm
Net Weight 0.76 kg
IP Degree of Protection IP20
Operating Temperature -10...35 C vertical / -10...55 C horizontal

Certifications & Standards

  • CE
  • cULus
  • UKCA
  • RCM
  • EAC
  • cULus HazLoc
  • IEC 61131-2

Selection Notes

Pick the TM3DQ8U when the downstream loads or drives expect negative (sink) logic; the TM3DQ8T covers the same 8-channel transistor output count but wired for positive (source) logic instead. Both share the 50 mA per-channel rating and 450 microsecond switching time, so the decision comes down to the sinking or sourcing convention of the connected actuators.

Technical Details

Short Description
Modicon TM3 expansion module, 8 transistor outputs, sink logic, 24V DC.
Mounting Type
TH35-15 / TH35-7.5 DIN rail, panel mount
Protection Type
IP20
Catalog No
TM3DQ8U
Delivery Date (Days)
30 days
Model Number
TM3DQ8U
Tariff Code
853710
