Schneider Electric TM3DQ8R Modicon TM3 8-relay output module – screw terminal

Schneider Electric TM3DQ8R Modicon TM3 8 Relay Output Screw Terminal PLC I/O Module

Name: Schneider Electric TM3DQ8R Modicon TM3 8 Relay Output Screw Terminal PLC I/O Module
Brand: Schneider Electric
SKU: TM3DQ8R
Price: 119.65 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: TM3DQ8R

Catalog No: TM3DQ8R

Series: Modicon TM3

Tariff Code (HS): 853710

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$119.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

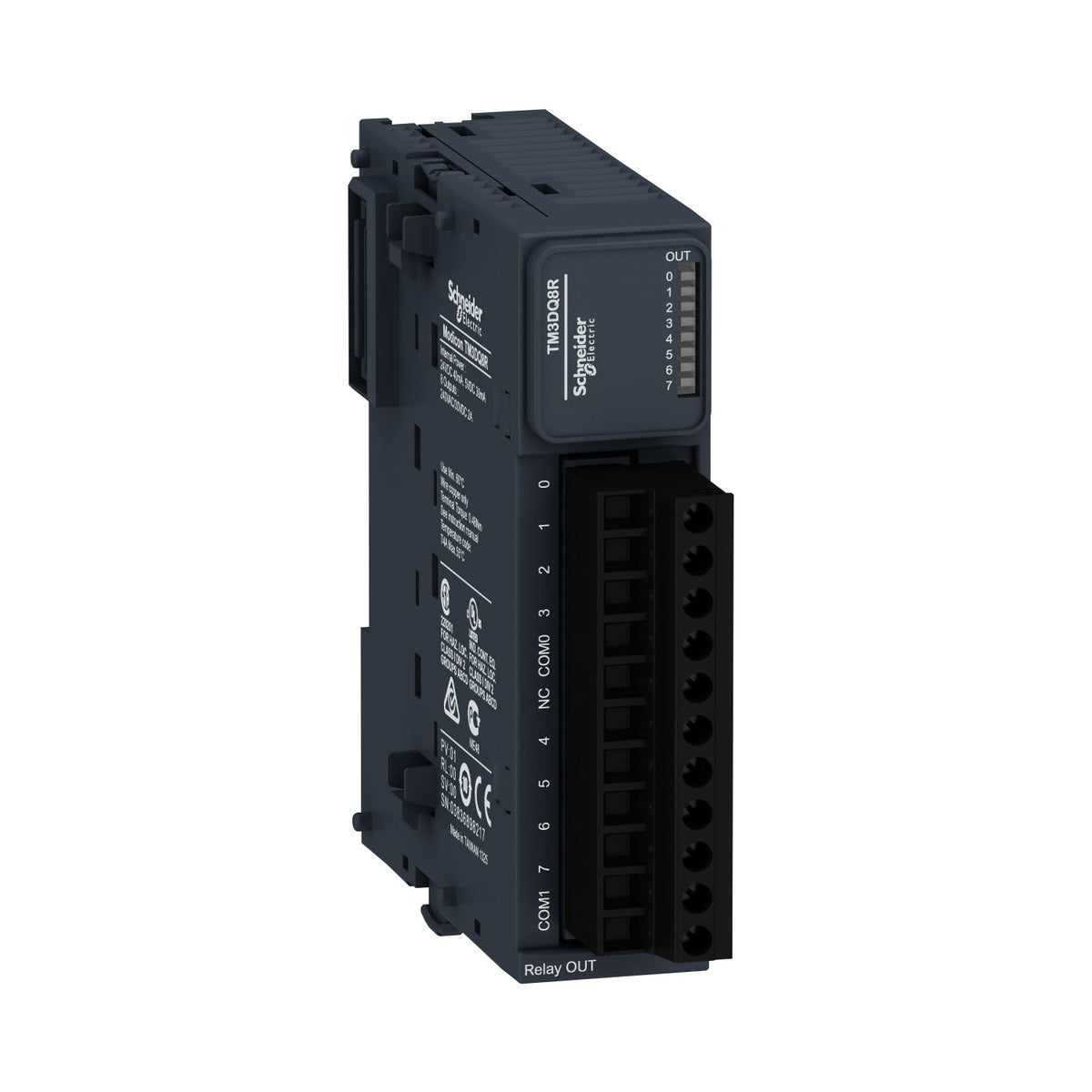

The Schneider Electric TM3DQ8R is a Modicon TM3 discrete output module that adds 8 normally-open relay outputs, rated 2 A at 240V AC/30V DC, to a Modicon M221, M241, M251 or M262 logic controller. It wires through a removable screw terminal block with 5.08 mm pitch and offers 20 million mechanical cycles.

Technical Specifications

Reference	TM3DQ8R
Brand	Schneider Electric
Range	Modicon TM3
GTIN	3606480611421
Product Type	Discrete output module
Compatibility	Modicon M221, M241, M251, M262
Discrete Output Number	8 relay, normally open
Discrete Output Voltage	240 V AC / 30 V DC
Discrete Output Current	2000 mA per relay output
Minimum Switching Current	10 mA at 5V DC
Response Time (On/Off)	≤ 10 ms / ≤ 5 ms max.
Mechanical Durability	20 million cycles
Electrical Connection	Removable screw terminal block, 5.08 mm pitch
Isolation (channels/bus)	500 V AC
IP Degree of Protection	IP20
Dimensions (W x D x H)	27.4 x 84.6 x 90 mm
Net Weight	0.11 kg
Ambient Operating Temperature	-10...35 °C vertical / -10...55 °C horizontal
Safety Reliability (MTBF)	250 years at 40 °C

Certifications & Standards

CE
cULus
UKCA
RCM
EAC
cULus HazLoc
IEC 61131-2

Selection Notes

The TM3DQ8R fits applications that need only a small relay output block - 8 normally-open contacts rated 2 A at up to 240V AC, rated for 20 million mechanical cycles, wired through 5.08 mm pitch screw terminals. Its 250-year MTBF at 40 °C is the highest of the TM3DQ relay modules because of the lower channel density versus the 16-output TM3DQ16R. Where the machine needs more than 8 relay outputs, the TM3DQ16R doubles the channel count in the same output type.

Technical Details

Short Description

TM3DQ8R: Modicon TM3 8-relay output module, 2A N/O, 240V AC/30V DC, screw terminal, IP20.

Mounting Type

35 mm DIN rail (TH35-15/TH35-7.5) or panel mount with fixing kit

Protection Type

IP20

Catalog No

TM3DQ8R

Delivery Date (Days)

30 days

Model Number

8-Relay Output Module

Tariff Code

853710
