Schneider Electric TM3DQ32UK Modicon TM3 32 Transistor Sink HE10 PLC I/O Module

% $-396.33

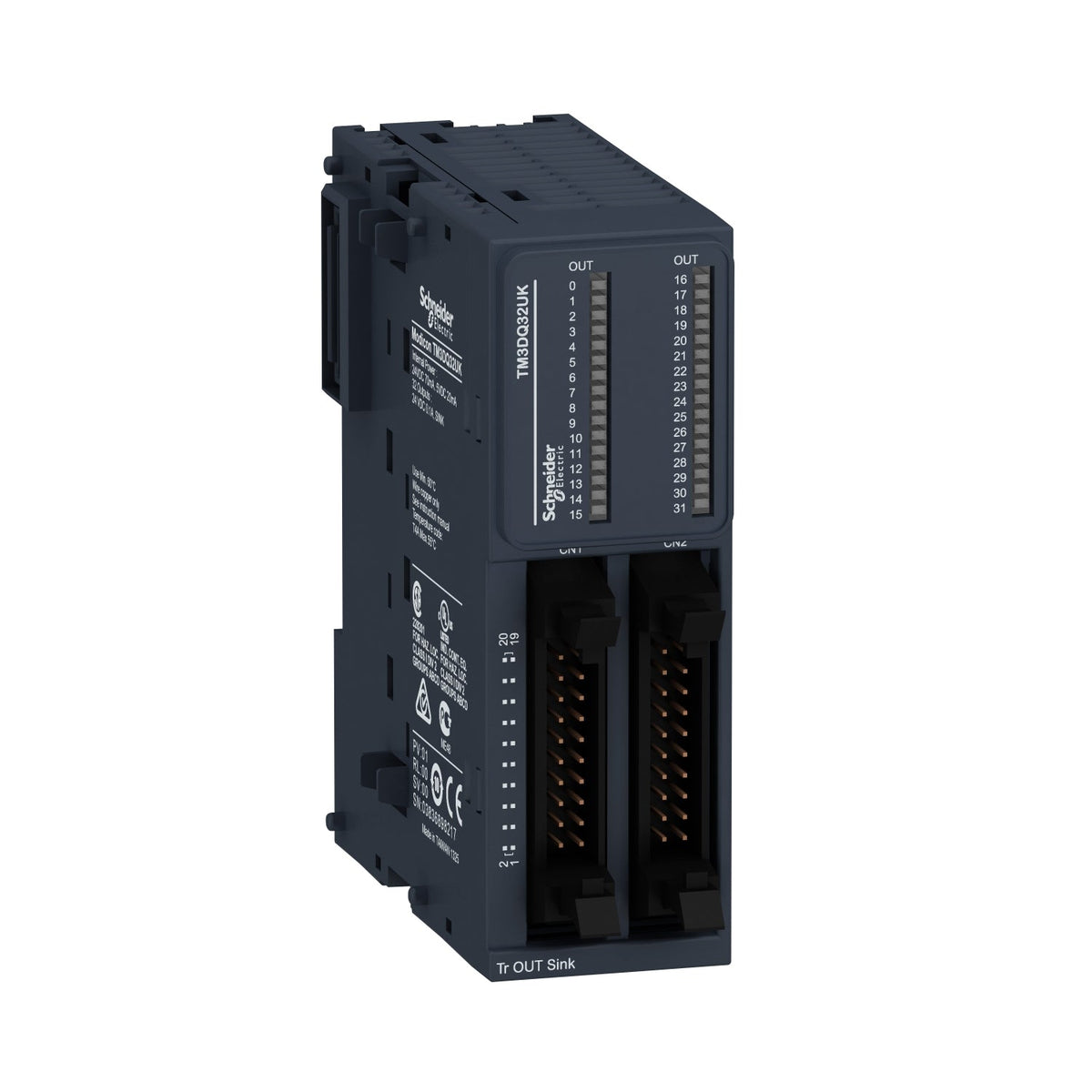

Schneider Electric TM3DQ32UK Modicon TM3 32 NPN transistor output module – HE10
Schneider Electric TM3DQ32UK Modicon TM3 32 NPN transistor output module – HE10

Schneider Electric TM3DQ32UK Modicon TM3 32 Transistor Sink HE10 PLC I/O Module

Brand: Schneider Electric
Reference No: TM3DQ32UK
Catalog No: TM3DQ32UK
Series: Modicon TM3
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$396.33

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TM3DQ32UK is a Modicon TM3 discrete output module that adds 32 NPN (sink) transistor outputs, rated 100 mA at 24V DC, to a Modicon M221, M241, M251 or M262 logic controller through a single HE10 connector. Each channel switches in 450 µs and carries an IP20 rating.

Technical Specifications

Reference TM3DQ32UK
Brand Schneider Electric
Range Modicon TM3
GTIN 3606480611612
Product Type Discrete output module
Compatibility Modicon M221, M241, M251, M262
Discrete Output Number 32 transistor, negative logic (sink/NPN)
Discrete Output Voltage 24 V DC
Discrete Output Current 100 mA per transistor output
Response Time (On/Off) 450 µs / 450 µs max.
Maximum Leakage Current 0.1 mA
Maximum Voltage Drop < 0.4 V
Maximum Tungsten Load < 1.2 W
Electrical Connection HE-10 connector
Isolation (channels/bus) 500 V AC
IP Degree of Protection IP20
Dimensions (W x D x H) 33.5 x 81.3 x 90 mm
Net Weight 0.112 kg
Ambient Operating Temperature -10...35 °C vertical / -10...55 °C horizontal
Safety Reliability (MTBF) 61 years at 40 °C

Certifications & Standards

  • CE
  • cULus
  • UKCA
  • RCM
  • EAC
  • cULus HazLoc
  • IEC 61131-2

Selection Notes

The TM3DQ32UK sinks current across 32 NPN transistor outputs in a single HE10 connector - the same 100 mA/450 µs rating as the TM3DQ32TK but with negative logic, matching downstream devices wired for sink inputs. Its 61-year MTBF at 40 °C is the lowest of the TM3DQ transistor family, reflecting the highest channel density. For source (PNP) logic at the same channel count, the TM3DQ32TK is the matching module; for half the outputs, the TM3DQ16UK covers 16 channels.

Technical Details

Short Description
TM3DQ32UK: Modicon TM3 32-output NPN transistor module, 100mA, HE10 connector, IP20.
Mounting Type
35 mm DIN rail (TH35-15/TH35-7.5) or panel mount with fixing kit
Protection Type
IP20
Catalog No
TM3DQ32UK
Delivery Date (Days)
30 days
Model Number
32-Output Transistor Sink (NPN) Module (HE10)
Tariff Code
853710
