Schneider Electric TM3DQ16U Modicon TM3 16 Transistor Sink Screw Terminal PLC I/O Module

% $-195.05

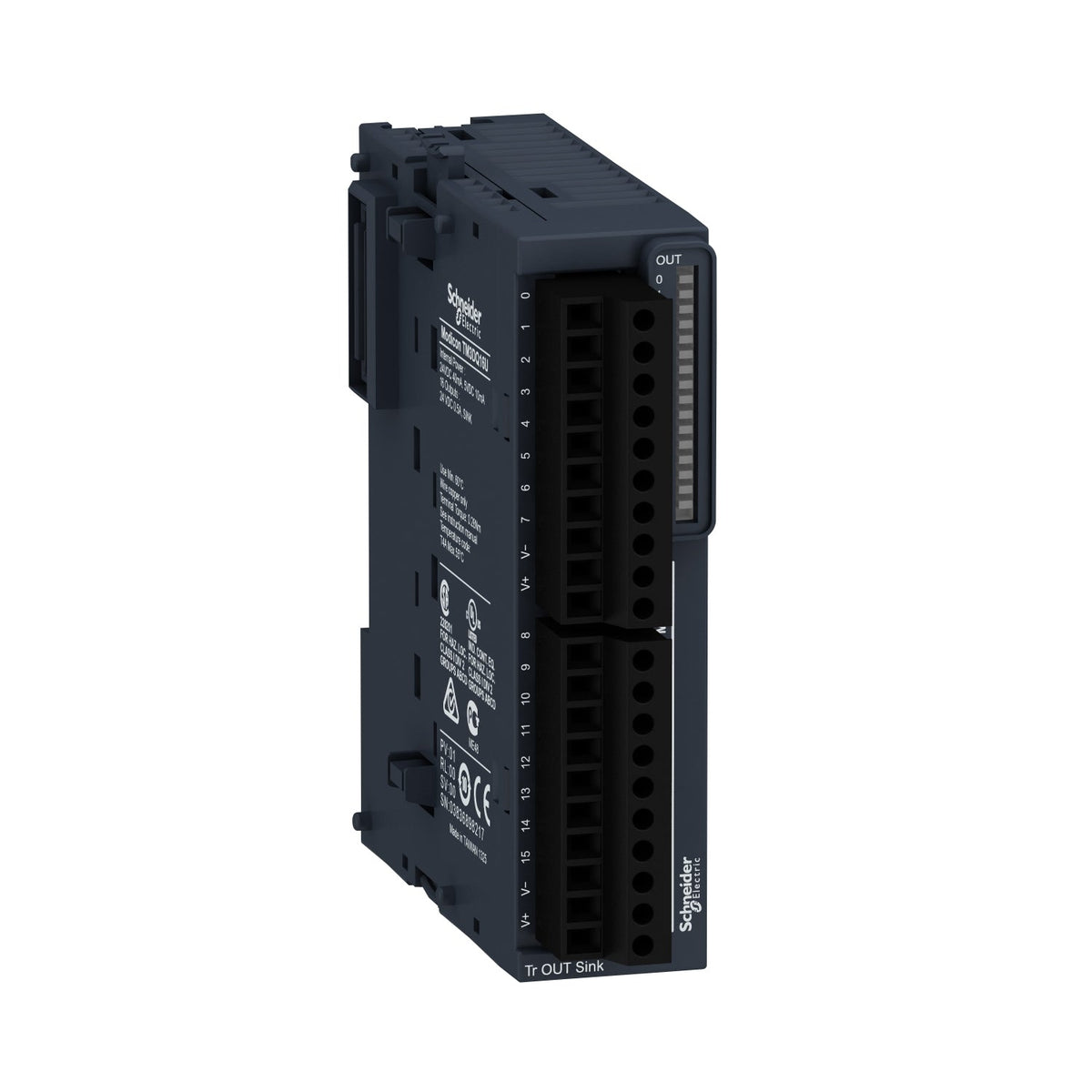

Schneider Electric TM3DQ16U Modicon TM3 16 NPN transistor output module
Schneider Electric TM3DQ16U Modicon TM3 16 NPN transistor output module

Schneider Electric TM3DQ16U Modicon TM3 16 Transistor Sink Screw Terminal PLC I/O Module

Brand: Schneider Electric
Reference No: TM3DQ16U
Catalog No: TM3DQ16U
Series: Modicon TM3
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$195.05

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TM3DQ16U is a Modicon TM3 discrete output module that adds 16 NPN (sink) transistor outputs, rated 300 mA at 24V DC, to a Modicon M221, M241, M251 or M262 logic controller. Each channel switches in 450 µs and wires through a removable screw terminal block with 3.81 mm pitch.

Technical Specifications

Reference TM3DQ16U
Brand Schneider Electric
Range Modicon TM3
GTIN 3606480611582
Product Type Discrete output module
Compatibility Modicon M221, M241, M251, M262
Discrete Output Number 16 transistor, negative logic (sink/NPN)
Discrete Output Voltage 24 V DC
Discrete Output Current 300 mA per transistor output
Response Time (On/Off) 450 µs / 450 µs max.
Maximum Leakage Current 0.1 mA
Maximum Voltage Drop < 0.4 V
Maximum Tungsten Load < 9.6 W
Electrical Connection Removable screw terminal block, 3.81 mm pitch
Isolation (channels/bus) 500 V AC
IP Degree of Protection IP20
Dimensions (W x D x H) 21.4 x 81.3 x 90 mm
Net Weight 0.76 kg
Ambient Operating Temperature -10...35 °C vertical / -10...55 °C horizontal
Safety Reliability (MTBF) 99 years at 40 °C

Certifications & Standards

  • CE
  • cULus
  • UKCA
  • RCM
  • EAC
  • cULus HazLoc
  • IEC 61131-2

Selection Notes

The TM3DQ16U sinks current on each of its 16 transistor outputs (NPN), switching 300 mA per channel in 450 µs versus the relay-output TM3DQ16R's 10 ms. Its higher tungsten load rating (< 9.6 W) suits small lamp loads better than the PNP TM3DQ16T (< 3 W). Where the downstream wiring uses positive (PNP/source) logic instead, the TM3DQ16T is the matching module; for an HE10 ribbon-cable connection with the same NPN logic, the TM3DQ16UK covers it in a narrower housing.

Technical Details

Short Description
TM3DQ16U: Modicon TM3 16-output NPN transistor module, 300mA, sink logic, screw terminal, IP20.
Mounting Type
35 mm DIN rail (TH35-15/TH35-7.5) or panel mount with fixing kit
Protection Type
IP20
Catalog No
TM3DQ16U
Delivery Date (Days)
30 days
Model Number
16-Output Transistor Sink (NPN) Module
Tariff Code
853710
