Schneider Electric TM3DQ16R Modicon TM3 16 Relay Output Screw Terminal PLC I/O Module

% $-200.04

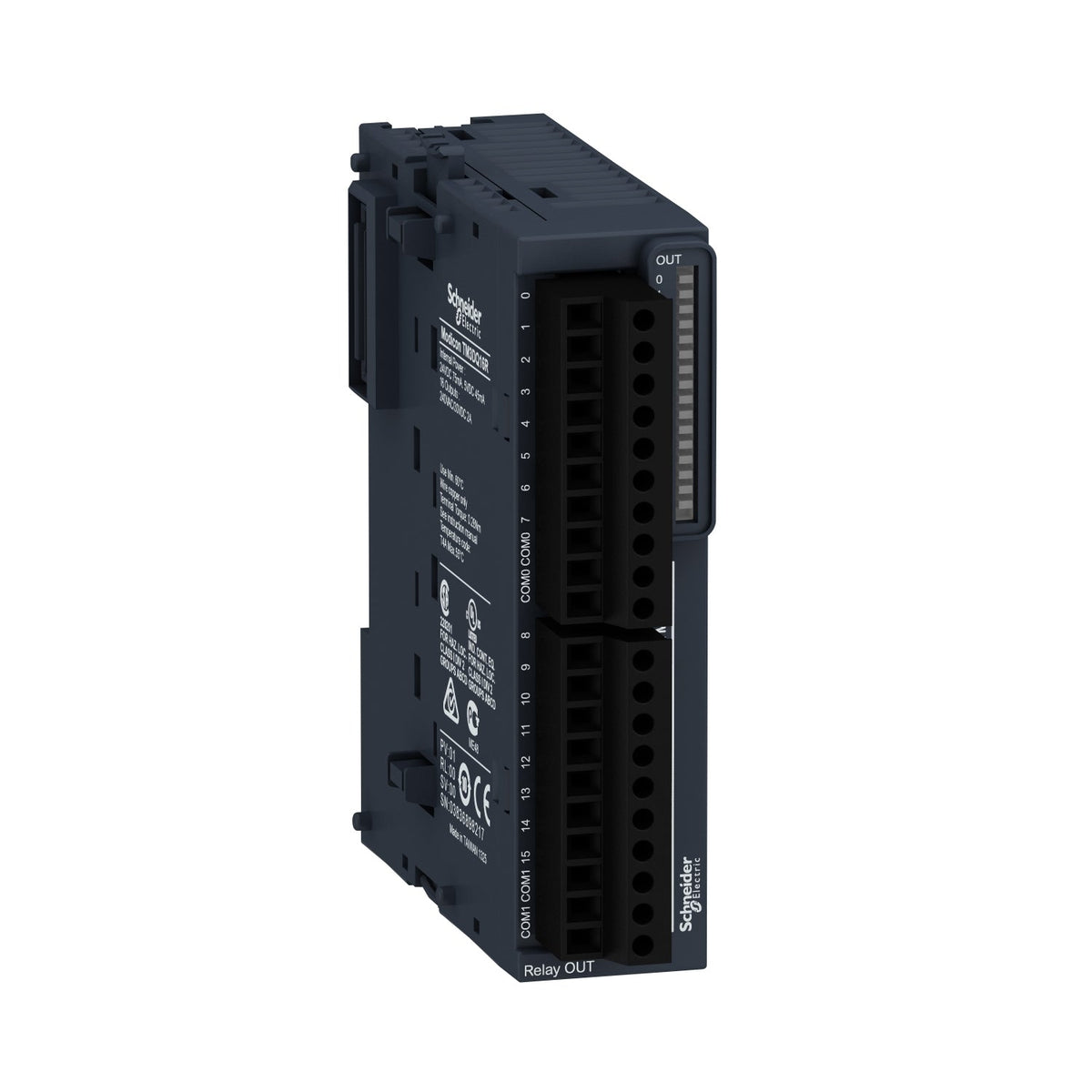

Schneider Electric TM3DQ16R Modicon TM3 16-relay output module – screw terminal
Schneider Electric TM3DQ16R Modicon TM3 16-relay output module – screw terminal

Schneider Electric TM3DQ16R Modicon TM3 16 Relay Output Screw Terminal PLC I/O Module

Brand: Schneider Electric
Reference No: TM3DQ16R
Catalog No: TM3DQ16R
Series: Modicon TM3
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$200.04

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TM3DQ16R is a Modicon TM3 discrete output module that adds 16 normally-open relay outputs, rated 2 A at 240V AC/30V DC, to a Modicon M221, M241, M251 or M262 logic controller. It wires through a removable screw terminal block with 3.81 mm pitch and carries an IP20 rating.

Technical Specifications

Reference TM3DQ16R
Brand Schneider Electric
Range Modicon TM3
GTIN 3606480611445
Product Type Discrete output module
Compatibility Modicon M221, M241, M251, M262
Discrete Output Number 16 relay, normally open
Discrete Output Voltage 240 V AC / 30 V DC
Discrete Output Current 2000 mA per relay output
Minimum Switching Current 10 mA at 5V DC
Response Time (On/Off) ≤ 10 ms / ≤ 5 ms max.
Electrical Connection Removable screw terminal block, 3.81 mm pitch
Isolation (channels/bus) 500 V AC
IP Degree of Protection IP20
Dimensions (W x D x H) 27.4 x 84.6 x 90 mm
Net Weight 0.145 kg
Ambient Operating Temperature -10...35 °C vertical / -10...55 °C horizontal
Safety Reliability (MTBF) 130 years at 40 °C

Certifications & Standards

  • CE
  • cULus
  • UKCA
  • RCM
  • EAC
  • cULus HazLoc
  • IEC 61131-2

Selection Notes

The TM3DQ16R's 16 normally-open relay outputs switch 2 A at up to 240V AC or 30V DC directly, making it suited to driving contactor coils, solenoids or indicator lamps without an interposing relay. Where the load needs faster switching than a relay's 10 ms response, the transistor-output TM3DQ16T (PNP/source) or TM3DQ16U (NPN/sink) modules switch in 450 µs instead. For half the channel count on the same relay output type, the TM3DQ8R covers 8 outputs.

Technical Details

Short Description
TM3DQ16R: Modicon TM3 16-relay output module, 2A N/O, 240V AC/30V DC, screw terminal, IP20.
Mounting Type
35 mm DIN rail (TH35-15/TH35-7.5) or panel mount with fixing kit
Protection Type
IP20
Catalog No
TM3DQ16R
Delivery Date (Days)
30 days
Model Number
16-Relay Output Module
Tariff Code
853710
