Schneider Electric TM3DI16K Modicon TM3 16-Input 24V DC HE10 Connector PLC I/O Module

% $-131.49
Schneider Electric TM3DI16K Modicon TM3 16-input 24V DC module – HE10 connector
Schneider Electric TM3DI16K Modicon TM3 16-input 24V DC module – HE10 connector

Schneider Electric TM3DI16K Modicon TM3 16-Input 24V DC HE10 Connector PLC I/O Module

Brand: Schneider Electric
Reference No: TM3DI16K
Catalog No: TM3DI16K
Series: Modicon TM3
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$131.49

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

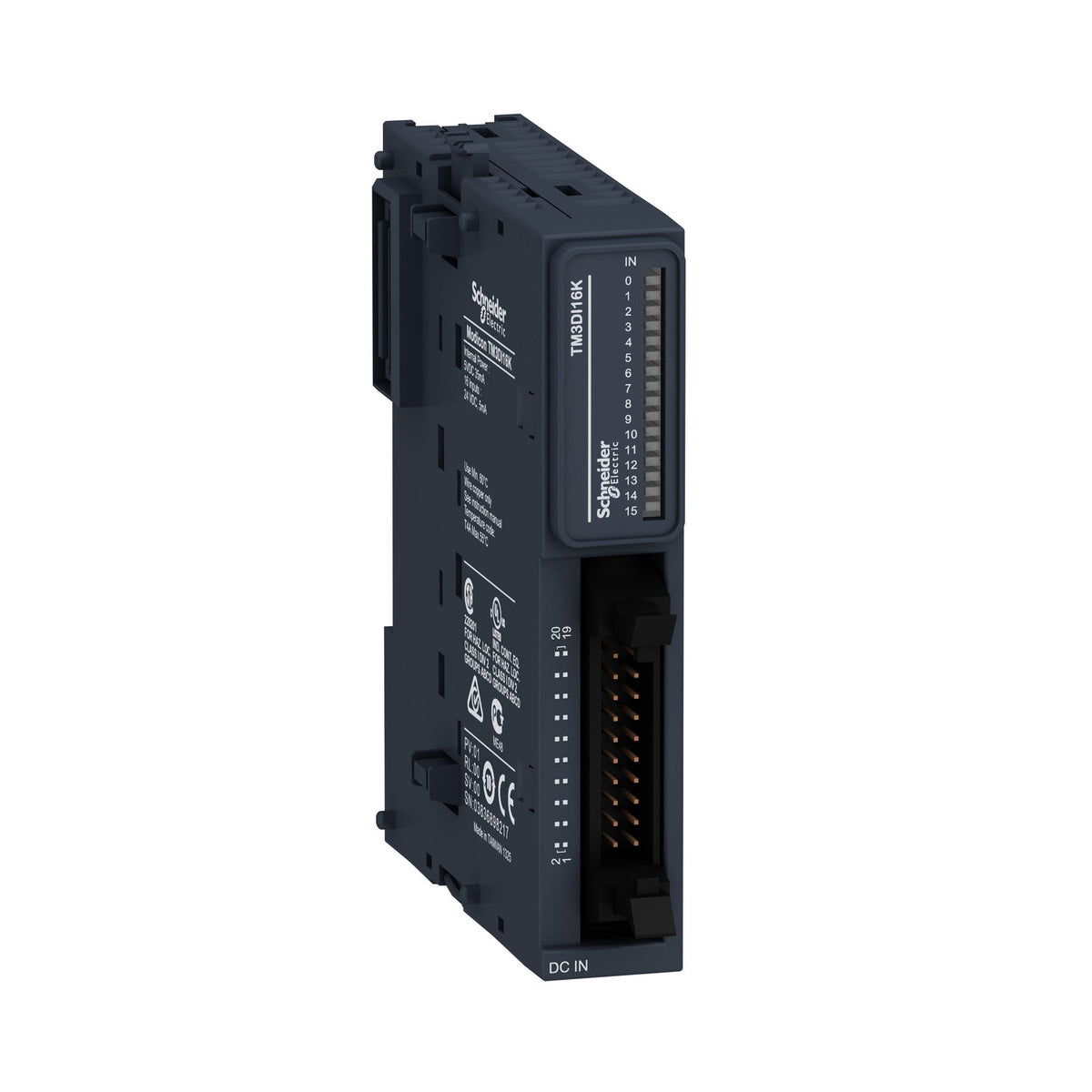

The Schneider Electric TM3DI16K is a Modicon TM3 discrete input module that adds 16 sink/source 24V DC inputs to a Modicon M221, M241, M251 or M262 logic controller through a single HE10 connector instead of screw terminals. Each channel conforms to IEC 61131-2 Type 3 and switches in 4 ms.

Technical Specifications

Reference TM3DI16K
Brand Schneider Electric
Range Modicon TM3
GTIN 3606480611407
Product Type Discrete input module
Compatibility Modicon M221, M241, M251, M262
Discrete Input Number 16
Discrete Input Voltage 24 V DC
Discrete Input Logic Sink or source (positive/negative)
Input Type Conforming to IEC 61131-2 Type 3
Discrete Input Current 5 mA
Voltage State 1 / State 0 15...28.8 V DC / 0...5 V DC
Input Impedance 4.4 kΩ
Response Time (On/Off) 4 ms / 4 ms max.
Electrical Connection HE-10 connector
Isolation (channels/bus) 500 V AC
IP Degree of Protection IP20
Dimensions (W x D x H) 21.4 x 81.3 x 90 mm
Net Weight 0.65 kg
Ambient Operating Temperature -10...35 °C vertical / -10...55 °C horizontal
Safety Reliability (MTBF) 250 years at 40 °C

Certifications & Standards

  • CE
  • cULus
  • UKCA
  • RCM
  • EAC
  • cULus HazLoc
  • IEC 61131-2

Selection Notes

Choose the TM3DI16K over the TM3DI16 when the panel uses a pre-wired HE10 ribbon cable instead of individual screw connections - the HE-10 connector and 21.4 mm width fit tighter DIN-rail layouts where screw-terminal modules would not. Input current drops to 5 mA per channel versus 7 mA on the screw-terminal TM3DI16, and impedance rises to 4.4 kΩ. For twice the input count in the same HE10 connector style, the TM3DI32K covers 32 inputs instead of 16.

Technical Details

Short Description
TM3DI16K: Modicon TM3 16-input 24V DC discrete input module, sink/source, HE10 connector, IP20.
Mounting Type
35 mm DIN rail (TH35-15/TH35-7.5) or panel mount with fixing kit
Protection Type
IP20
Catalog No
TM3DI16K
Delivery Date (Days)
30 days
Model Number
16-Input Discrete Input Module (HE10)
Tariff Code
853710
