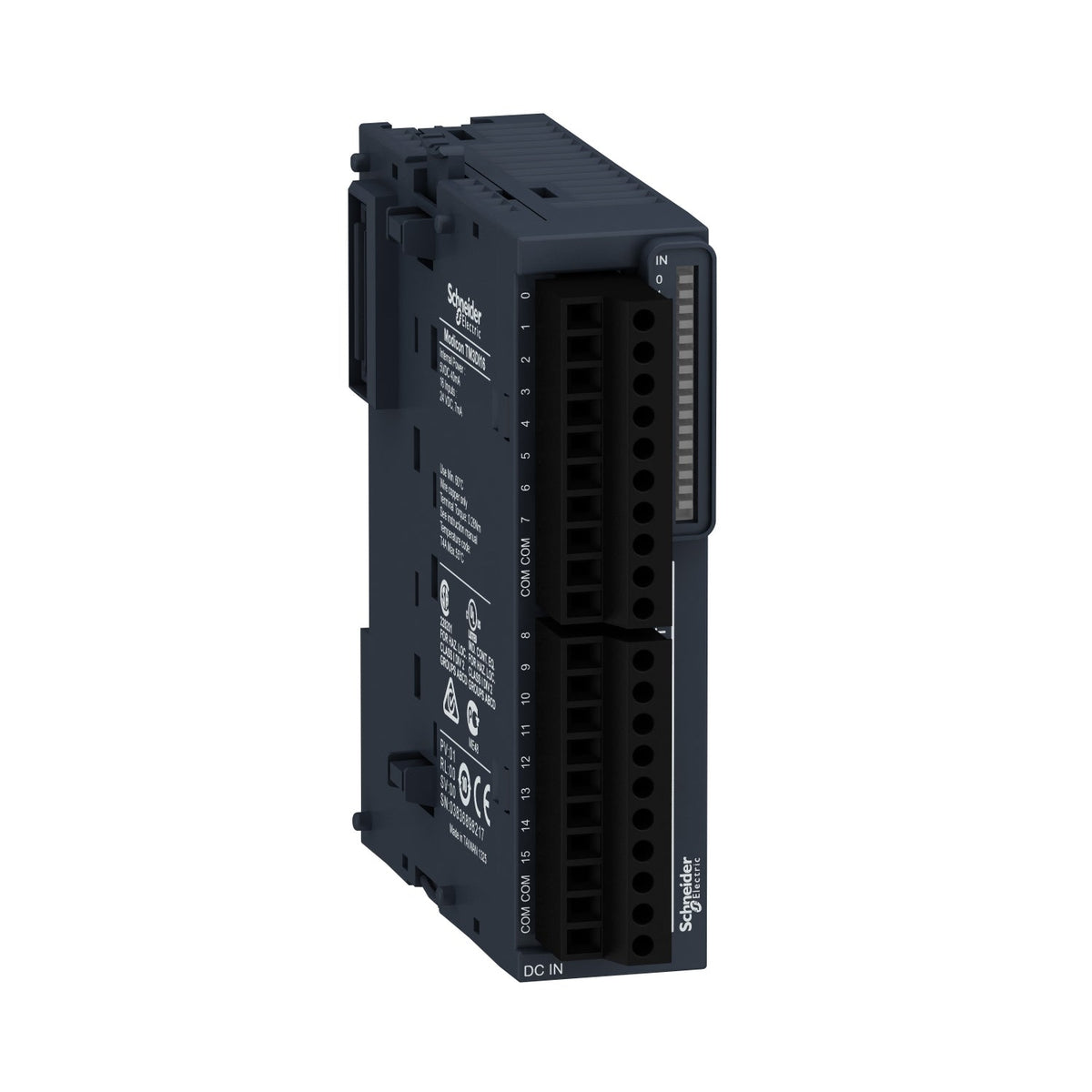

Schneider Electric TM3DI16 Modicon TM3 16-Input 24V DC Screw Terminal PLC I/O Module

The Schneider Electric TM3DI16 is a Modicon TM3 discrete input module that adds 16 sink/source 24V DC inputs to a Modicon M221, M241, M251 or M262 logic controller. Each channel conforms to IEC 61131-2 Type 3, switches in 4 ms, and connects through a removable screw terminal block with 3.81 mm pitch.

Technical Specifications

Certifications & Standards

• CE
• cULus
• UKCA
• RCM
• EAC
• cULus HazLoc
• IEC 61131-2

Selection Notes

Use the TM3DI16 where the controller's onboard inputs are not enough and the machine needs 16 additional 24V DC sensor inputs on a standard screw terminal block rather than a pre-wired HE10 connector. The 4 ms response time and IEC 61131-2 Type 3 compatibility suit conventional proximity and limit switches. For a pre-wired cabinet using a multi-pin cable instead of individual screw terminals, the TM3DI16K variant covers the same 16 inputs through an HE10 connector; for double the input count in the same connector style, the TM3DI32K adds 32 inputs.
