Schneider Electric TM3BCSL Modicon TM3 Modbus Serial Line Bus Coupler IP20 Remote I/O Module

% $-307.22

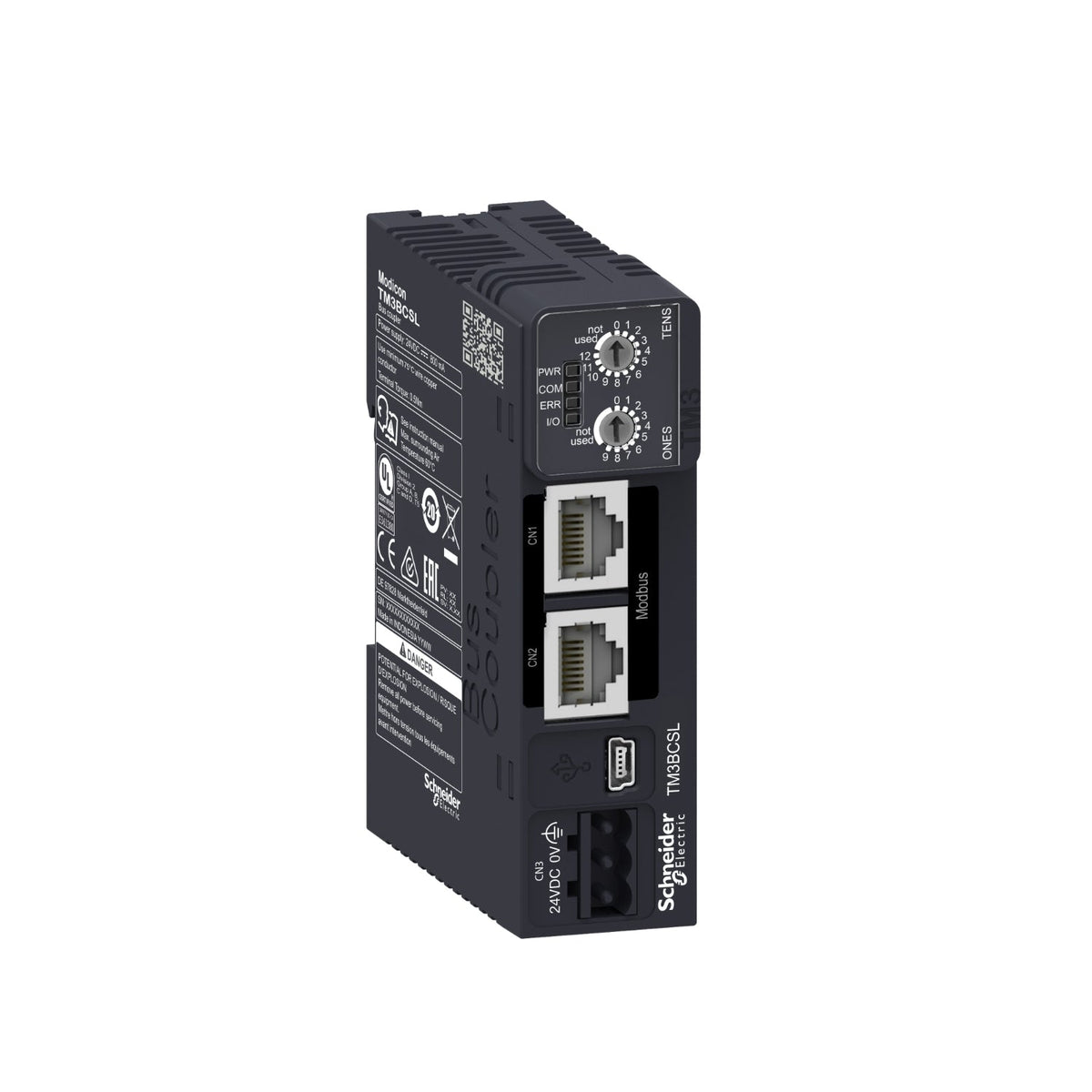

Schneider Electric TM3BCSL Modicon TM3 Modbus serial bus coupler – RS-485
Schneider Electric TM3BCSL Modicon TM3 Modbus serial bus coupler – RS-485

Schneider Electric TM3BCSL Modicon TM3 Modbus Serial Line Bus Coupler IP20 Remote I/O Module

Brand: Schneider Electric
Reference No: TM3BCSL
Catalog No: TM3BCSL
Series: Modicon TM3
Tariff Code (HS): 853710
Communication: Modbus serial (RS-485), 1.2-115.2 kbit/s, 2x isolated RJ45
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$307.22

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric TM3BCSL is a Modicon TM3 bus coupler that links TM3 expansion I/O to a Modicon M221, M241, M251 or M262 logic controller over a Modbus serial line, distributing up to 448 digital and 112 analog I/O points. It transmits at 1.2 to 115.2 kbit/s through two isolated RJ45 ports and carries an IP20 rating.

Technical Specifications

Reference TM3BCSL
Brand Schneider Electric
Range Modicon TM3
GTIN 3606489811051
Product Type I/O distributed module (bus coupler)
Compatibility Modicon M221, M241, M251, M262 logic/motion controllers
Communication Protocol Modbus serial
Communication Network Type Modbus
Transmission Rate 1.2...115.2 kbit/s
Exchange Mode Half duplex
Topology Daisy chain
Max. I/O Distribution Up to 448 digital I/O / 112 analog I/O
Current Consumption 0.8 A at 24V DC internal supply, max. 7 expansion modules
IP Degree of Protection IP20
Dimensions (W x D x H) 27 x 70 x 96.5 mm
Net Weight 0.10 kg
Ambient Operating Temperature -10...60 °C

Certifications & Standards

  • CE
  • cULus
  • EAC
  • RCM
  • UKCA
  • EU-RO MR
  • IEC 61131-2
  • UL/CSA 61010-1
  • UL/CSA 61010-2-201

Selection Notes

Pick the TM3BCSL when the installation runs on a Modbus RTU/RS-485 serial network rather than Ethernet - its two isolated RJ45 ports connect into that serial segment and the coupler manages up to 448 digital and 112 analog I/O points per controller. Where the network is EtherNet/IP or Modbus TCP instead, the TM3BCEIP bus coupler is the matching choice.

Technical Details

Short Description
TM3BCSL: Modicon TM3 Modbus serial line bus coupler, 1.2-115.2 kbit/s, 2x RJ45, IP20.
Mounting Type
35 mm DIN rail (clipping locks) or mounting plate (screws)
Protection Type
IP20
Catalog No
TM3BCSL
Delivery Date (Days)
30 days
Model Number
Modbus Serial Line Bus Coupler
Tariff Code
853710
