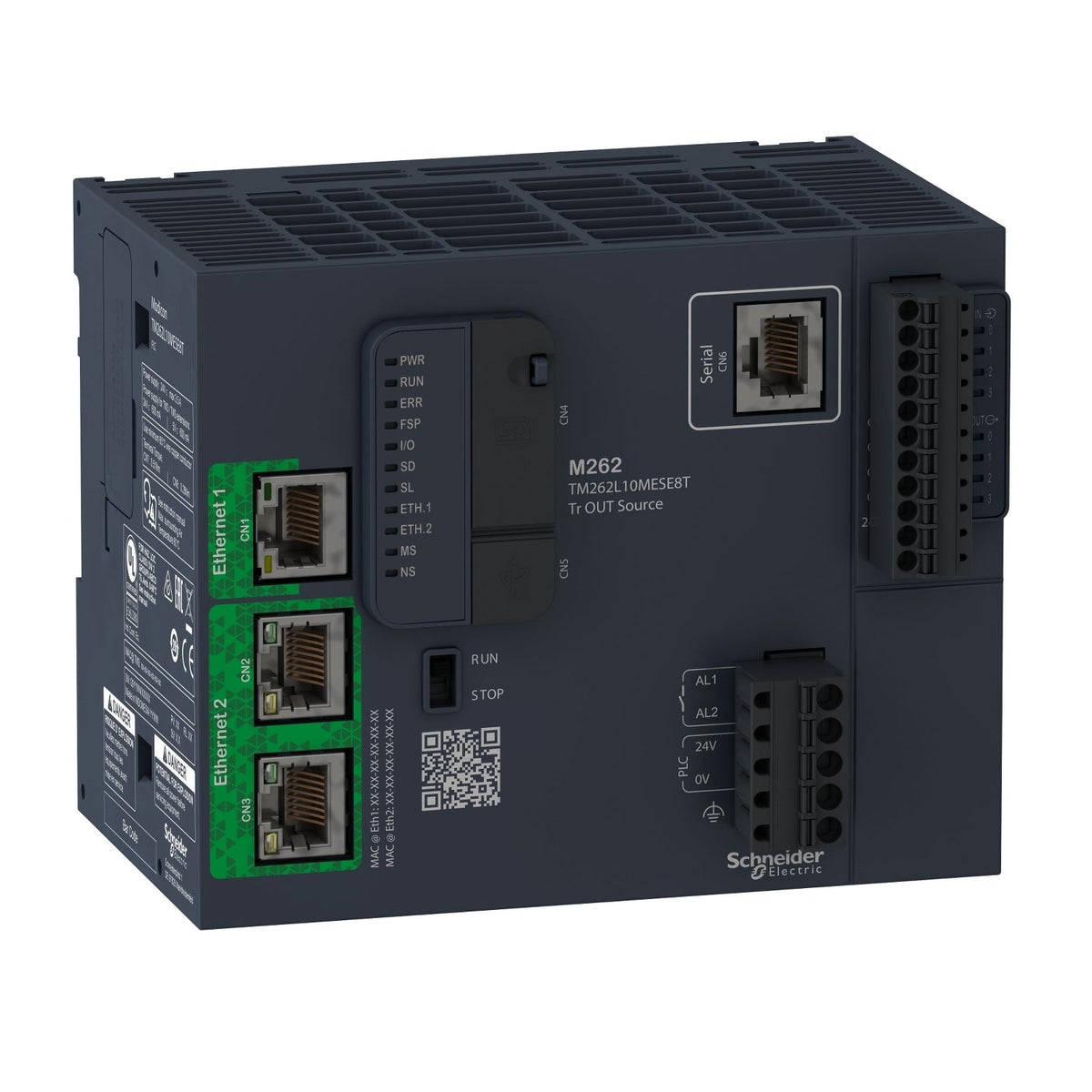

Schneider Electric TM262L10MESE8T Modicon M262 Dual Ethernet 5ns/Instruction Programmable Logic Controller

The Schneider Electric TM262L10MESE8T is a Modicon M262 logic controller reaching 5 ns per instruction, with 8 fast digital I/O (4 inputs, 4 transistor outputs to 300 kHz) and dual Ethernet networks for EtherNet/IP and Modbus TCP. Powered by 24 V DC, it targets IIoT-ready machines needing embedded cloud connectivity, cybersecurity and an expandable TM3 I/O bus without dedicated motion control.

Technical Specifications

Certifications & Standards

• CE
• cULus
• cULus HazLoc Class I Division 2
• RCM
• EAC
• Achilles
• KC
• UL 61010-1
• UL 61010-2-201
• CSA C22.2 No 61010-1
• CSA C22.2 No 61010-2-201
• CSA C22.2 No 213
• ANSI/ISA 12-12-01
• IEC 61131-2

Selection Notes

Choose the TM262L10MESE8T over a faster-instruction variant when 5 ns/instruction execution is sufficient for the application and program cost matters more than raw scan-cycle speed — both share the same 8 fast I/O, dual-Ethernet ports and roughly 96-device connection ceiling. As a logic-only M262 (no Sercos motion bus), it fits IIoT-connected machines needing TM3 I/O expansion and embedded cybersecurity without synchronized axis control; a motion-enabled M262 variant is needed when the application requires Sercos-based servo coordination.
