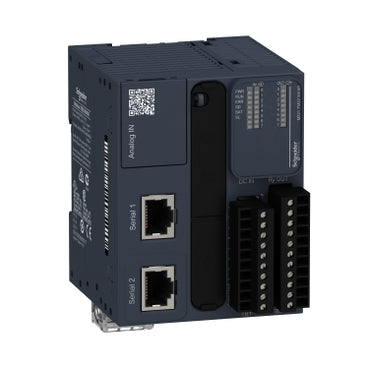

Schneider Electric TM221M16R Modicon M221 Book 16 I/O Relay Logic Controller

The Schneider Electric TM221M16R is a Modicon M221 Book-format logic controller with 16 discrete I/O — 8 inputs and 8 relay outputs — in a compact 70 x 70 x 90 mm housing. Supplied from 24 V DC, its normally-open relay outputs switch 5-125 V DC or 5-250 V AC at up to 2 A per point, ideal for mixed AC/DC load switching.

Technical Specifications

Certifications & Standards

• CE
• DNV-GL
• ABS
• LR
• cULus
• RCM
• EAC
• UKCA
• cULus HazLoc
• IEC 61131-2
• UL 508
• CAN/CSA C22.2 No. 213
• IACS E10
• ANSI/ISA 12-12-01

Selection Notes

The TM221M16R's relay outputs handle both AC and DC loads directly (5-250 V AC or 5-125 V DC), so choose it over a transistor-output Book controller when the application switches contactor coils, solenoid valves, or indicator lamps at line voltage without an external interposing relay. Its 20 operations/minute maximum switching frequency at full load is a hard limit — high-cycle-rate outputs belong on a transistor variant instead.
