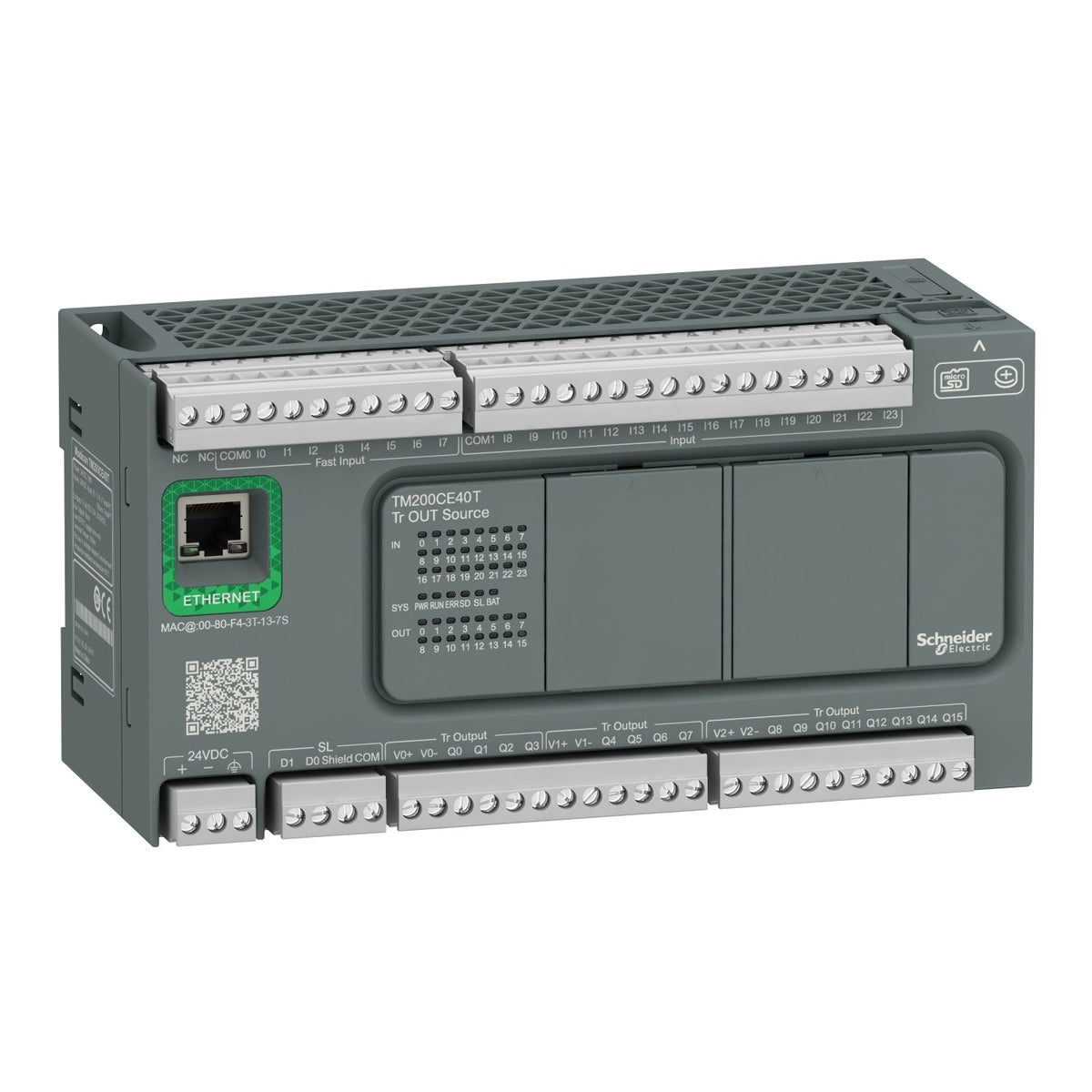

Schneider Electric TM200CE40T Easy Modicon M200 40-I/O Transistor Ethernet Programmable Logic Controller

The Schneider Electric TM200CE40T is an Easy Modicon M200 programmable logic controller with 40 discrete I/O — 24 inputs and 16 transistor outputs, including 2 fast PWM/PLS outputs to 100 kHz — powered by a 24 V DC supply. It adds USB, RS485/RS232 serial and 10/100 Mbit/s Ethernet Modbus TCP/IP ports for compact machines needing positioning or speed control.

Technical Specifications

Certifications & Standards

• CE
• IEC 61131-2
• IEC 61010-2-201

Selection Notes

Choose the TM200CE40T over a relay-output variant when the application needs fast switching or motion functions — its 2 fast transistor outputs (Q0, Q1) support PWM/PLS/PTO pulse generation to 100 kHz, enabling basic positioning or speed-reference outputs that relay contacts cannot deliver. The 0.5 A transistor output rating suits driving PLC inputs, solenoid valves or small DC loads directly, while heavier AC or inductive loads still require an external interposing relay or contactor.
