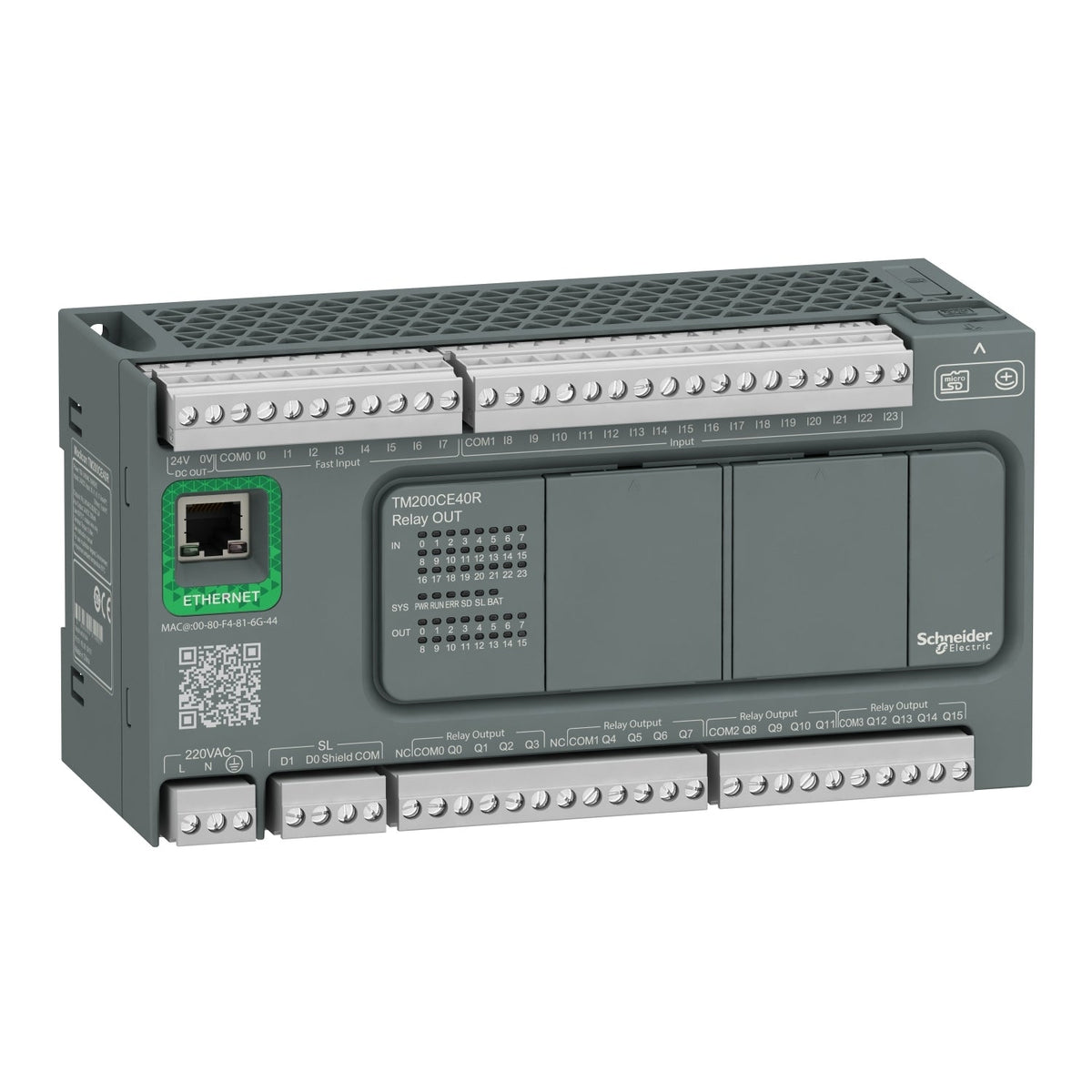

Schneider Electric TM200CE40R Easy Modicon M200 40-I/O Relay Ethernet Programmable Logic Controller

The Schneider Electric TM200CE40R is an Easy Modicon M200 programmable logic controller with 40 discrete I/O — 24 inputs and 16 relay outputs rated 2 A — powered by a 100...240 V AC supply. It integrates USB, RS485/RS232 serial and 10/100 Mbit/s Ethernet Modbus TCP/IP ports, suited for compact relay-output machine control panels needing a single Ethernet connection.

Technical Specifications

Certifications & Standards

• CE
• IEC 61010-2-201
• IEC 61131-2

Selection Notes

Choose the TM200CE40R over a transistor-output variant when switching AC loads directly — its 16 relay outputs handle up to 2 A at 220 V AC or 24 V DC without interposing relays, though the 10 ms relay switching time trades off against a transistor output's sub-millisecond response. With 4 fast and 4 high-speed 100 kHz counting inputs among its 24 discrete inputs, plus up to 4 expansion modules, this controller suits machines that need both relay-driven actuator control and pulse or quadrature counting from a single unit.
